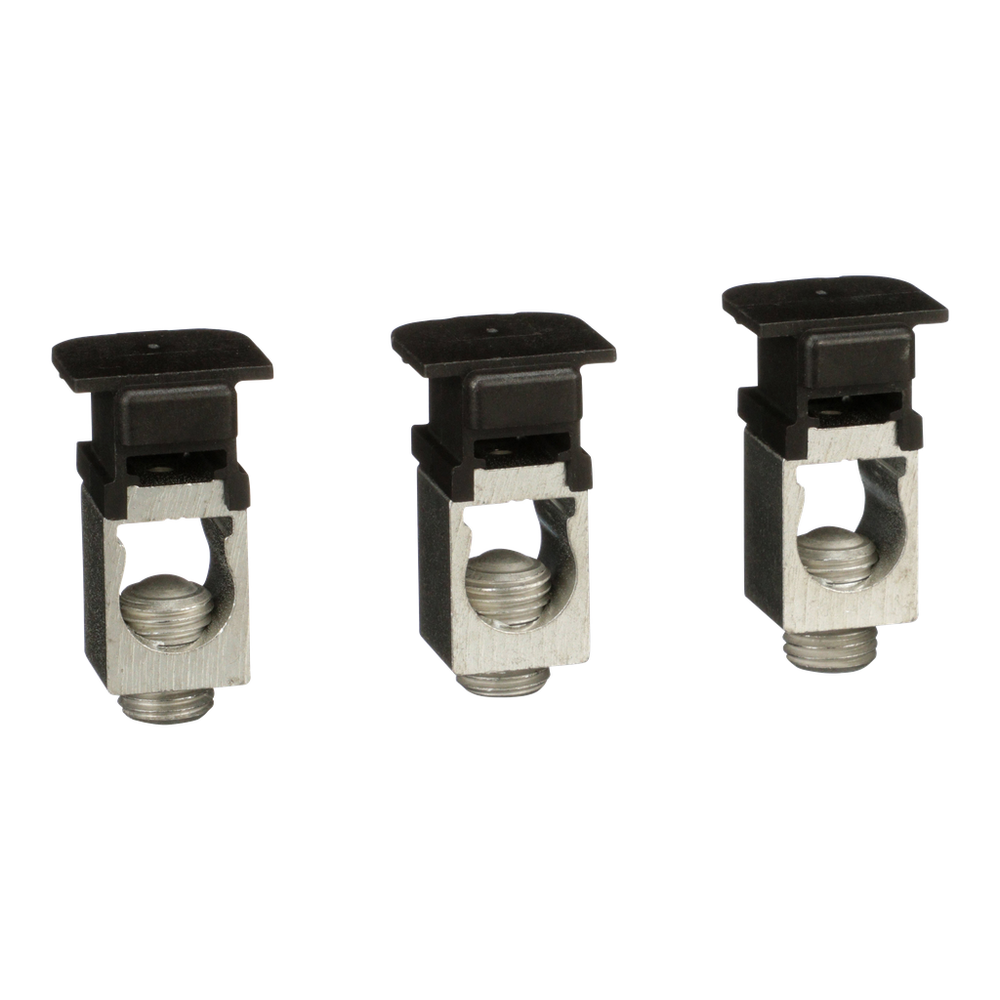

Schneider Electric AL150HD
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The M-frame, P-frame circuit breakers have mechanical lugs standard on both ends of the unit-mounted circuit breakers. T he M-frame and P-frame I-Line™ circuit breakers have mechanical lugs standard on the O/OFF end only. These lugs are suitable for use with copper or aluminum wire. Rear connectors, compression lugs and distribution lugs are available for special applications. Copper mechanical lugs are available for use with copper wire only. These lugs can be factory installed by adding an "LC" suffix, to the circuit breaker catalog number for standard copper lugs and "LD" suffix, for high-amp copper lugs (M-frame, P-frame circuit breakers only). This mechanical lug has a rated current of 1200A and material made of aluminum. This lug kit is rated at 500 kcmil. The mechanical lug kit complies to CSA & UL standards.Circuit breaker accessory, PowerPacT H, lug kit, mechanical, 15A to 150A, 14 to 3/0 AWG, aluminum or copper, qty 3
Schneider Electric AL150HD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- .765 in
- Height
- 1.40 in
- Kcmil Size
- 500 kcmil
- Line Rated Current
- 150-400 A
- Location Of Connection
- downstream
- Material
- aluminium
- Mounting Mode
- unit mount || I-Line
- Poles Description
- 3P
- Tightening Torque
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10)
- Width
- .874 in
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- UL || CSA
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP1406032EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Halogen Content Performance
- Halogen free product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status
- Green Premium product
Specifications
- Accessory / Separate Part Category
- connection accessory
- Product Or Component Type
- mechanical lug
- Quantity Per Set
- set of 4
- Range Of Product
- PowerPact H || PowerPact J || PowerPact L
