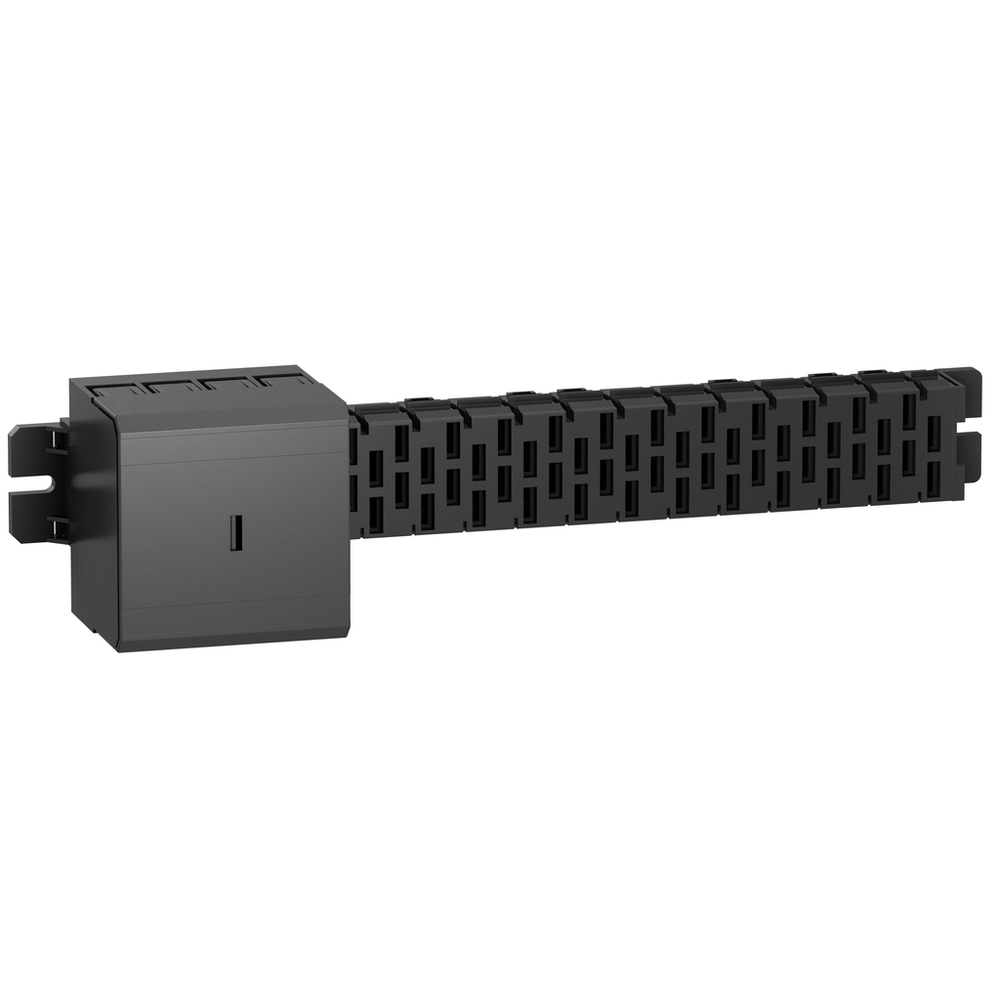

Schneider Electric AK5JB145
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Simple and quick products to mount and wire up automated control and distribution panels. It is made of 4 conductors with 24 tap-off units at 18 mm intervals. It is suitable for mounting in 800 mm enclosure width.Busbar, Linergy HK, 160A, 4 conductors, L560mm, for mounting in enclosure W800mm
Schneider Electric AK5JB145 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Bar Width
- 45 mm
- Connections - Terminals
- connector 2.5-70 mm² flexible with cable end || connector 2.5-70 mm² rigid
- Depth
- 82 mm
- Flame Retardance
- V0 conforming to UL 94
- I²T On Activation
- 10000000 A².s
- Mounting Position
- vertical using side stop AK5BT01 on mounting plates AK5PA || horizontal
- Net Weight
- 1.1 kg
- Network Frequency
- 50/60 Hz
- Peak Current
- 25 kA
- Protection Type
- aM fuses In = 160 A, Isc = 100 kA, Ie = 160 A || gF fuses In = 160 A, Isc = 100 kA, Ie = 160 A || NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A || NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A
- Tightening Torque
- 10 N.m
- [Ui] Rated Insulation Voltage
- 600 V CSA || 600 V UL || 690 V IEC 60439-1
- Width
- 81 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Fire Resistance
- 850 °C IEC 60695
- Ip Degree Of Protection
- IPxx B conforming to IEC 60529
- Product Certifications
- DNV || CSA || UL || LROS (Lloyds register of shipping)
- Standards
- IEC 60439
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP120206EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bar Length
- 560 mm
- Device Application
- distribution
- Enclosure/Cubicle Width
- 800 mm
- [Ie] Rated Operational Current
- 160 A 35 °C
- Network Type
- AC
- Number Of Conductors
- 4
- Number Of Tap-Offs
- 24
- Product Name
- HK
- Product Or Component Type
- busbar
- Range
- Linergy
- [Ue] Rated Operational Voltage
- 400 V off-load plugging-in and unplugging, with supply switched on)IEC 60439-1 || 480 V off-load plugging-in and unplugging, with supply switched on)CSA || 480 V off-load plugging-in and unplugging, with supply switched on)UL || 600 V plugging-in and unplugging, with supply switched off)CSA || 600 V plugging-in and unplugging, with supply switched off)UL || 690 V plugging-in and unplugging, with supply switched off)IEC 60439-1
