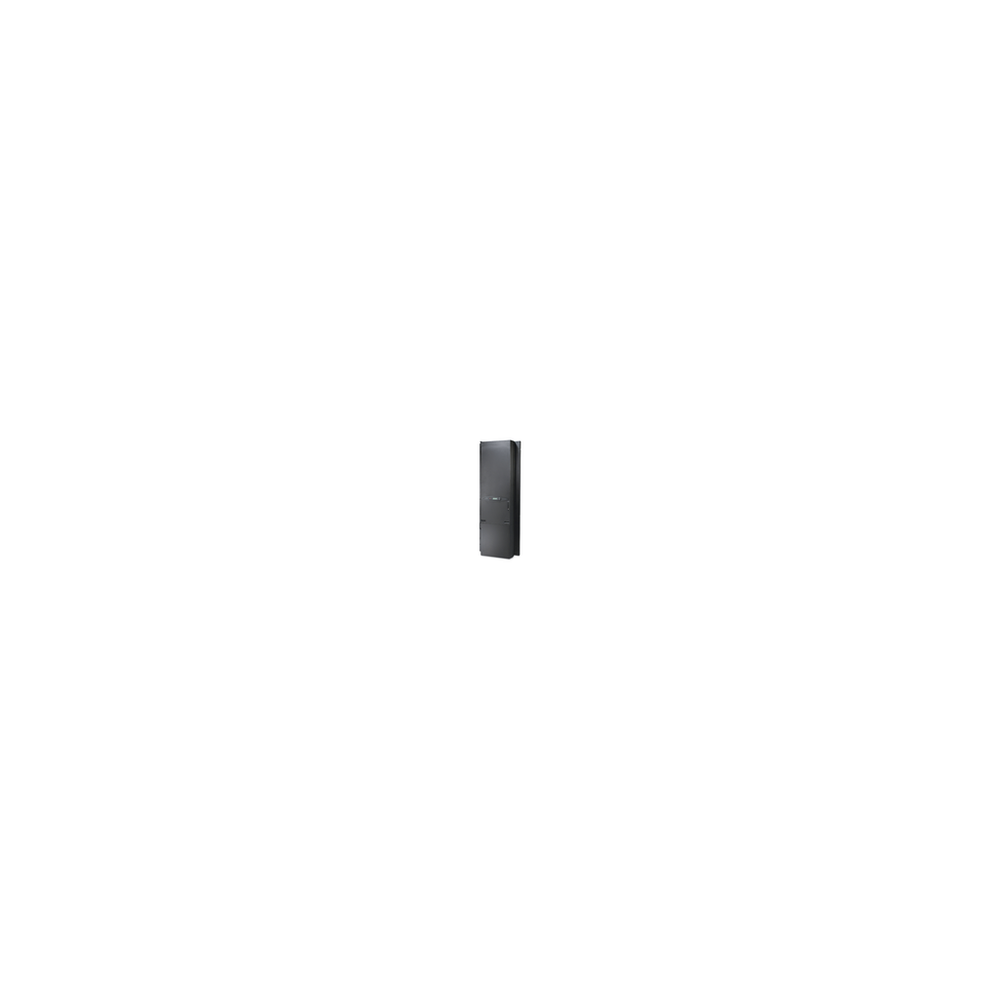

Schneider Electric ACF402

Communications & Management

• Control Panel
  • Multi-function LCD status and control console

Conformance

• Product Certifications
  • cUL Listed || CE || UL Listed || VDE
• Standards
  • EN 55022 Class A || EN 55024 || FCC Part 15 class A || ICES-003 || IEC 61000-3-2 || IEC 61000-3-3

Contractual warranty

• Warranty
  • 1 year (parts only)

Environmental

• Acoustic Level
  • 79 dBA
• Ambient Air Temperature For Operation
  • 0-50 °C
• Ambient Air Temperature For Storage
  • 0-50 °C
• Relative Humidity
  • 0-95 %
• Storage Altitude
  • 0-15000 ft
• Storage Relative Humidity
  • 0-95 %

General

• Air Flow
  • 1600 ft³/min

Input

• Input Frequency
  • 50/60 Hz
• Input Power
  • 1200 W

Offer Sustainability

• Circularity Profile
  • ENVEOLI1512008_V1
• Environmental Disclosure
  • ENVPEP1512008_V1
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Lead Free
  • Yes
• Reach Free Of Svhc
  • Yes
• Reach Regulation
  • Free of Substances of Very High Concern above the threshold
• Sustainable Offer Status
  • Green Premium product

Overview

• Lead Time
  • Usually in Stock
• Presentation
  • High-density equipment creates an environment where traditional air distribution methods are often not effective. Densely packed enclosures can cause IT equipment to overheat, resulting in downtime. The Rack Air Removal Unit SX captures exhaust heat, returns the warm air to the plenum and eliminates hot spots from the data center. Through automatic fan speed control based upon temperature, the fans will self-adjust for optimal performance. With a unit-mounted LCD display, users can view temperatures at the rack, monitor alarm conditions and adjust unit set points. The integrated network management card allows for remote monitoring and control. This space-saving solution mounts to the back of either the NetShelter SX or VX enclosure, requiring zero U space.

Physical

• Color
  • Black
• Depth
  • 25.4 cm
• Height
  • 191.8 cm
• Mounting Mode
  • not rack-mountable
• Net Weight
  • 77.27 kg
• Width
  • 73.7 cm

Specifications

• Main Input Voltage
  • 100 V || 120 V || 200 V || 208 V || 230 V
• Number Of Cables
  • 2
• Provided Equipment
  • Documentation CD || Installation guide || Operations and maintenance manual
