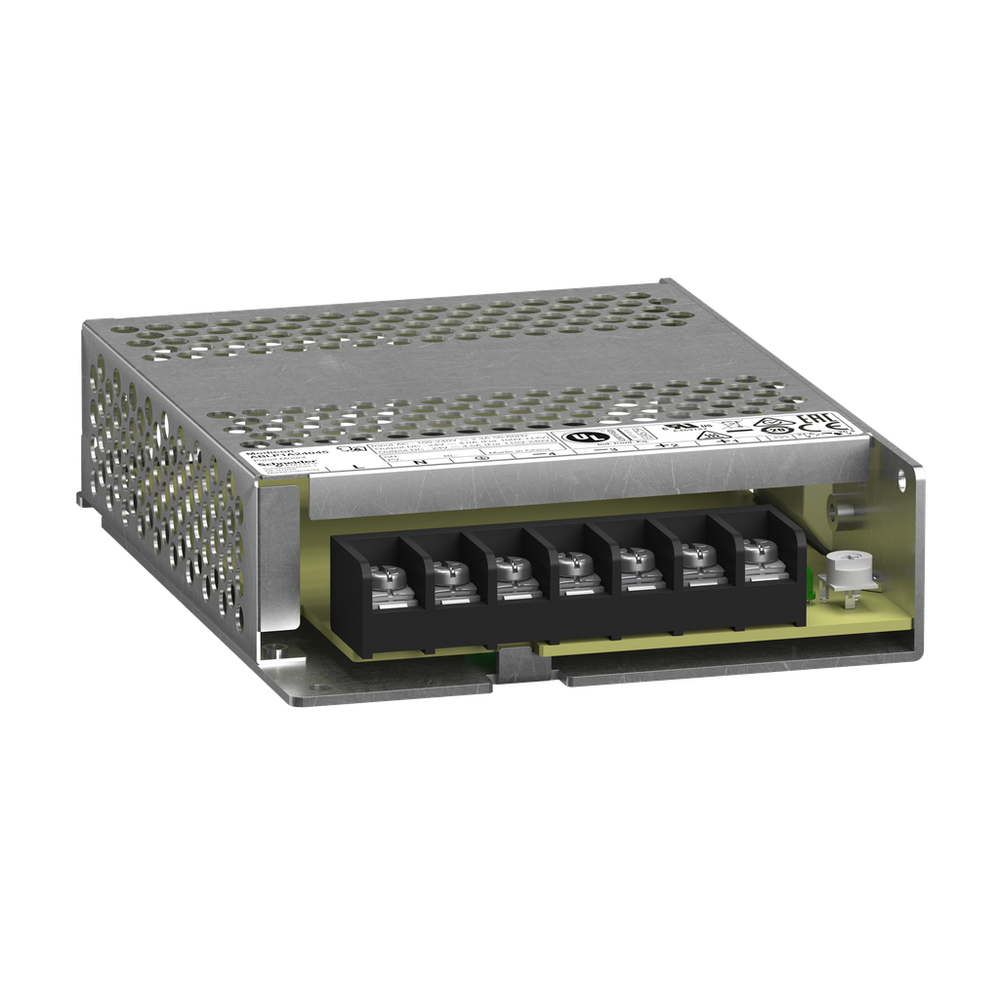

Schneider Electric ABLP1A24045
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Modicon ABLP regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 4.5A at 24V DC and a rated power of 100W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It provides a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected It has LED diagnostics indicator available in the front for troubleshooting instantly. Its width is 97mm, its height is 30mm, its depth is 129mm. It weighs 0.300kg. It is certified with CB-Scheme, cULus Listed, cURus recognized, RCM and EAC. It is a power supply for commercial use, panel mount; It is compatible with ABLPA01 mounting plate. It installs on panel on side or on base with mounting plate fixing by screw. ABLP power supplies bring energy to your automated systems. ABLP power supplies are designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness. The main applications to use Modicon ABLP power supply are lifts, display panels, escalators, carwash, foodstuff ovens, etc.Regulated Power Supply, modicon power supply, 100...240V AC, 24V, 4.5A, single phase, Panel Mount
Schneider Electric ABLP1A24045 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw connection 0.75...2.5 mm², AWG 18...AWG 14) without wire end ferrule || screw connection 0.75...1.5 mm², AWG 18...AWG 16) with wire end ferrule
- Current Consumption
- < 2.3 A 115 V AC || < 1.5 A 230 V AC
- Depth
- 129 mm
- Dielectric Strength
- 3750 V AC with input to output
- Earthing System
- TN || TT || IT
- Efficiency
- 89 % 230 V AC
- Efficiency At Full Load
- 90...264 V AC
- Height
- 30 mm
- Holding Time
- > 20 ms 115 V AC || > 40 ms 230 V AC
- Input Protection Type
- integrated fuse (not interchangeable) 4 A
- Inrush Current
- 45 A 115 V || 85 A 230 V
- Line And Load Regulation
- < 0.5 % network 0 to 100 % load at 25 °C || < 1 % network full voltage range in line at 25 °C
- Load Capacitance
- 4000 µF
- Maximum Leakage Current
- 1 mA 240 V AC
- Meantime Between Failure [Mtbf]
- 700000 h at 25 °C, full load conforming to SR 332
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail || panel mounting
- Net Weight
- 0.3 kg
- Network Frequency Limits
- 50-60 Hz
- Output Coupling
- parallel || serial
- Output Protection Type
- against overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset
- Output Voltage Limits
- 21.6...26.4 V
- Overvoltage Category
- II
- Power Dissipation In W
- 20 W
- Power Factor
- 0.55 at 115 V AC || 0.45 at 230 V AC
- Residual Ripple
- < 150 mV
- Response Time
- < 500 ms
- Service Life
- 10 year(s)
- Status Led
- 1 LED (Green) output voltage
- Supply
- SELV EN/IEC 60950-1 || SELV EN/IEC 60204-1 || SELV IEC 60364-4-41
- Width
- 97 mm
Environment
- Ambient Air Temperature For Operation
- -30-50 °C without derating mounting position A, B, F, G < 6561.68 ft (2000 m) || 50-70 °C with current derating of 2 % per °C mounting position A, B, F, G < 6561.68 ft (2000 m)
- Electrical Shock Protection Class
- class I
- Electromagnetic Compatibility
- immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to EN/IEC 61000-4-2 || immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to EN/IEC 61000-4-2 || immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to EN/IEC 61000-4-3 || immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3 || immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to EN/IEC 61000-4-3 || immunity to fast transients - test level: 4 kV (on input-output) conforming to EN/IEC 61000-4-4 || surge immunity test - test level: 4 kV (between power supply and earth) conforming to EN/IEC 61000-4-5 || surge immunity test - test level: 3 kV (between phases) conforming to EN/IEC 61000-4-5 || immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6 || immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8 || immunity to voltage dips conforming to EN/IEC 61000-4-11 || disturbing field emission conforming to EN 55016-2-3 || limits for harmonic current emissions conforming to EN 61000-3-2 || conforming to EN 55016-1-2 || conforming to EN 55016-2-1
- Electromagnetic Emission
- conducted emissions EN 61000-6-3 || radiated emissions EN 61000-6-4
- Ip Degree Of Protection
- IP10
- Operating Altitude
- 5000 m
- Pollution Degree
- 2
- Product Certifications
- CE || cULus || EAC || RCM || CB Scheme || KC
- Shock Resistance
- 150 m/s² 11 ms
- Standards
- EN 62368-1 || EN 61010-1 || EN 61010-2-201 || EN 61204-3 || EN 61000-6-1 || EN 61000-6-2 || EN 61000-6-3 || EN 61000-6-4 || EN 61000-3-2 || EN 61000-3-3 || UL 62368-1 || UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 62368-1 || CSA C22.2 No 61010-1 || CSA C22.2 No 61010-2-201 || EN/IEC 62368-1
- Vibration Resistance
- 3 mm 2-9 Hz)IEC 60068-2-6 || 10 m/s² 9-200 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2007017EN
- Environmental Disclosure
- ENVPEP2007017EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Enclosure Material
- Aluminum
- Input Voltage
- 100...240 V AC single phase
- Kw Rating
- 100 W
- Output Voltage
- 24 V DC
- Power Supply Output Current
- 4.5 A
- Power Supply Type
- regulated switch mode
- Product Or Component Type
- power supply
- Range Of Product
- Modicon Power Supply
