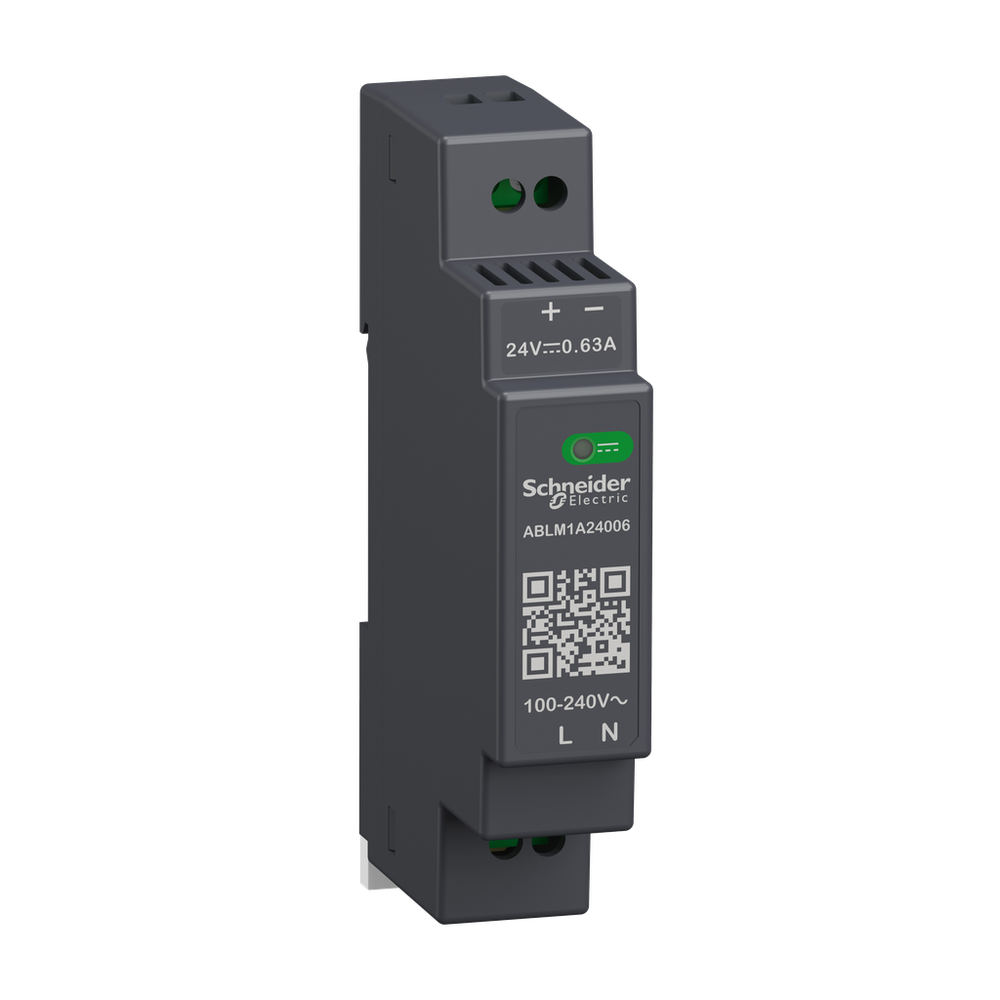

Schneider Electric ABLM1A24006
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 0,625A at 24V DC and a rated power output of 15W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 18mm, its height is 91mm, its depth is 55,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.101kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 2A, B or C curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.Regulated Power Supply, 100...240V AC, 24V, 0.6A, single phase, Modular
Schneider Electric ABLM1A24006 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw connection 0.5...1.5 mm², AWG 20...AWG 16) without wire end ferrule input/output || screw connection 0.5...1 mm², AWG 20...AWG 18) with wire end ferrule input/output
- Current Consumption
- < 0.4 A 115 V AC || < 0.25 A 230 V AC
- Depth
- 55.6 mm
- Dielectric Strength
- 3000 V AC input/output
- Earthing System
- TN || TT || IT
- Efficiency
- 81 % 115 V AC || 81 % 230 V AC
- Efficiency At Full Load
- 90...264 V AC
- Height
- 91 mm
- Holding Time
- > 10 ms 115 V AC || > 60 ms 230 V AC
- Input Protection Type
- integrated fuse (not interchangeable) 3.15 A || external protection (recommended) 20 A Curve B || external protection (recommended) 20 A Curve C || external protection (recommended) 2 A Curve B || external protection (recommended) 2 A Curve C
- Inrush Current
- 15 A 115 V || 30 A 230 V
- Line And Load Regulation
- < 0.5 % network in line || < 1 % network 0 to 100 % load
- Load Capacitance
- 3000 µF
- Maximum Leakage Current
- 0.25 mA 240 V AC
- Meantime Between Failure [Mtbf]
- 3000000 h at 25 °C, full load || 1000000 h at 55 °C, 80 % load
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail || panel mounting
- Net Weight
- 0.101 kg
- Network Frequency Limits
- 50-60 Hz
- Output Coupling
- serial
- Output Protection Type
- against overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset
- Overvoltage Category
- II
- Power Dissipation In W
- 3.5 W
- Power Factor
- 0.51 at 115 V AC || 0.40 at 230 V AC
- Residual Ripple
- < 100 mV
- Response Time
- < 2 s
- Service Life
- 10 year(s)
- Status Led
- 1 LED (Green) output voltage
- Supply
- SELV EN/IEC 60950-1 || SELV EN/IEC 60204-1 || SELV IEC 60364-4-41
- Width
- 18 mm
Environment
- Ambient Air Temperature For Operation
- -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m) || 55-70 °C with current derating of 2.67 % per °C mounting position A < 6561.68 ft (2000 m)
- Electrical Shock Protection Class
- class II without PE connection
- Electromagnetic Compatibility
- immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to EN/IEC 61000-4-2 || immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to EN/IEC 61000-4-2 || electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to EN/IEC 61000-4-3 || electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3 || electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to EN/IEC 61000-4-3 || immunity to fast transients - test level: 4 kV (on input-output) conforming to EN/IEC 61000-4-4 || surge immunity test - test level: 4 kV (between power supply and earth) conforming to EN/IEC 61000-4-5 || surge immunity test - test level: 3 kV (between phases) conforming to EN/IEC 61000-4-5 || immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6 || immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8 || immunity to voltage dips - test level: 100 % (1 cycle) conforming to EN/IEC 61000-4-11 || immunity to voltage dips - test level: 60 % (10 cycles) conforming to EN/IEC 61000-4-11 || immunity to voltage dips - test level: 30 % (25 cycles) conforming to EN/IEC 61000-4-11 || disturbing field emission conforming to EN 55016-2-3 || limits for harmonic current emissions conforming to EN 61000-3-2 || conforming to EN 55016-1-2 || conforming to EN 55016-2-1
- Electromagnetic Emission
- conducted emissions EN 61000-6-3 || radiated emissions EN 61000-6-4
- Ip Degree Of Protection
- IP20
- Operating Altitude
- < 6561.68 ft (2000 m) overvoltage category III || 2000 m...5000 m overvoltage category II
- Pollution Degree
- 2
- Product Certifications
- CE || cUL Listed || cUL Recognized || RCM || CB Scheme || EAC || KC || NEC class 2
- Shock Resistance
- 150 m/s² 11 ms
- Standards
- EN 62368-1 || EN/IEC 61010-1 || EN 61010-2-201 || EN/IEC 61204-3 || EN 61000-6-1 || EN 61000-6-2 || EN 61000-6-3 || EN 61000-6-4 || EN 61000-3-2 || EN 61000-3-3 || UL 62368-1 || UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 62368-1 || CSA C22.2 No 61010-1 || CSA C22.2 No 61010-2-201 || EN/IEC 62368-1
- Vibration Resistance
- 3 mm 2-9 Hz)IEC 60721-3-3 || 10 m/s² 9-200 Hz)IEC 60721-3-3
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2004005EN
- Environmental Disclosure
- ENVPEP2004005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Enclosure Material
- Plastic
- Input Voltage
- 100...240 V AC single phase || 100...240 V AC phase to phase
- Kw Rating
- 15 W
- Output Voltage
- 24 V DC
- Power Supply Output Current
- 0.625 A
- Power Supply Type
- regulated switch mode
- Product Or Component Type
- power supply
- Range Of Product
- Modicon Power Supply
