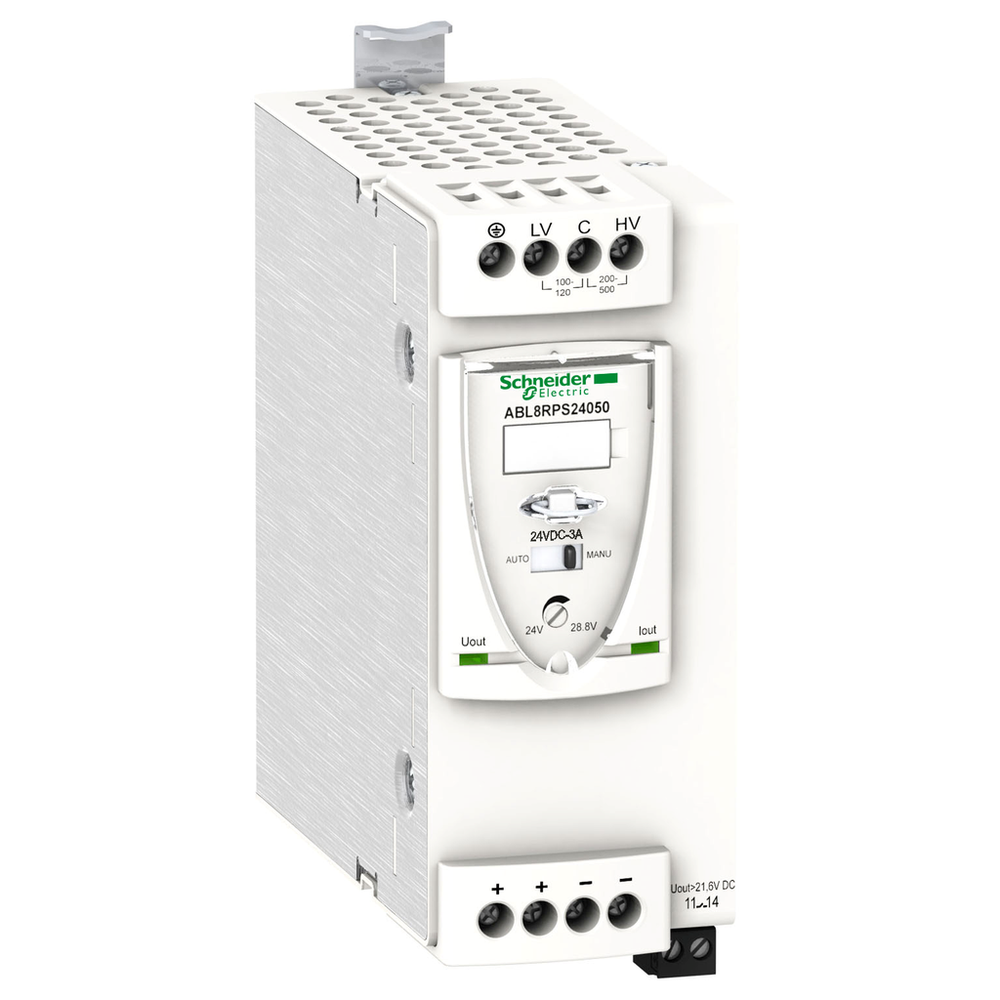

Schneider Electric ABL8RPS24050
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 5A at 24V DC and a rated power output of 120W. Most of these power supplies have auto protection reset. A few have auto / manual protection reset. Some of these power supplies can be mounted directly to a panel. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 56mm-wide. It weighs 0,700kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD07, GB2CD08, GV2RT06 and GV2ME06 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 5 A
Schneider Electric ABL8RPS24050 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- removable screw terminal block 2 x 2.5 mm², diagnostic relay || screw type terminals 3 x 0.5...3 x 4 mm², AWG 22...AWG 12) input connection || screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) input ground connection || screw type terminals 4 x 0.5...4 x 4 mm², AWG 22...AWG 12) output connection || screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) output ground connection
- Depth
- 125 mm
- Dielectric Strength
- 3500 V with between input and ground || 4000 V with between input and output || 500 V with between output and ground
- Efficiency
- 87 %
- Efficiency At Full Load
- 85...132 V AC || 170...550 V AC
- Height
- 143 mm
- Inrush Current
- 30 A
- Marking
- CE
- Mounting Support
- 35 x 15 mm symmetrical DIN rail || 35 x 7.5 mm symmetrical DIN rail
- Net Weight
- 0.7 kg
- Operating Position
- vertical
- Output Coupling
- parallel || series
- Output Protection Type
- against overload manual or automatic reset || against overvoltage 30...32 V, manual reset || against short-circuits manual or automatic reset || against undervoltage tripping if U < 21.6 V || thermal automatic reset
- Output Voltage Limits
- 24...28.8 V adjustable
- Power Dissipation In W
- 15.5 W
- Power Factor
- 0.51 at 240 V AC || 0.59 at 120 V AC
- Provided Equipment
- power factor correction filter IEC 61000-3-2
- Status Led
- 1 LED (green and red) output voltage || 1 LED (green, red and orange) output current
- Supply
- SELV EN/IEC 60950-1 || SELV EN/IEC 60204-1 || SELV IEC 60364-4-41
- Width
- 56 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 50-60 °C with derating factor mounting position A < 6561.68 ft (2000 m) || -25-50 °C without derating mounting position A < 6561.68 ft (2000 m)
- Environmental Characteristic
- EMC EN 61000-6-1 || EMC EN 61000-6-3 || EMC EN 55024 || EMC EN/IEC 61000-6-4 || EMC EN/IEC 61204-3 || safety EN/IEC 60950-1 || safety EN/IEC 61204-3
- Ip Degree Of Protection
- IP20 conforming to EN/IEC 60529
- Operating Altitude
- 6561.68 ft (2000 m)
- Product Certifications
- cCSAus || EAC || KC || RCM || UL
- Standards
- CSA C22.2 No 60950-1 || UL 508 || EN/IEC 62368-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI120913EN
- Environmental Disclosure
- ENVPEP061201EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Anti-Harmonic Filter
- low frequency harmonic currents
- Input Voltage
- 100...120 V AC single phase N-L1 || 200...500 V AC phase to phase L1-L2
- Kw Rating
- 120 W
- Output Voltage
- 24 V DC
- Permissible Temporary Current Boost
- 1.5 x In for 4 s)
- Power Supply Output Current
- 5 A
- Power Supply Type
- regulated switch mode
- Product Or Component Type
- power supply
- Range Of Product
- Modicon Power Supply
