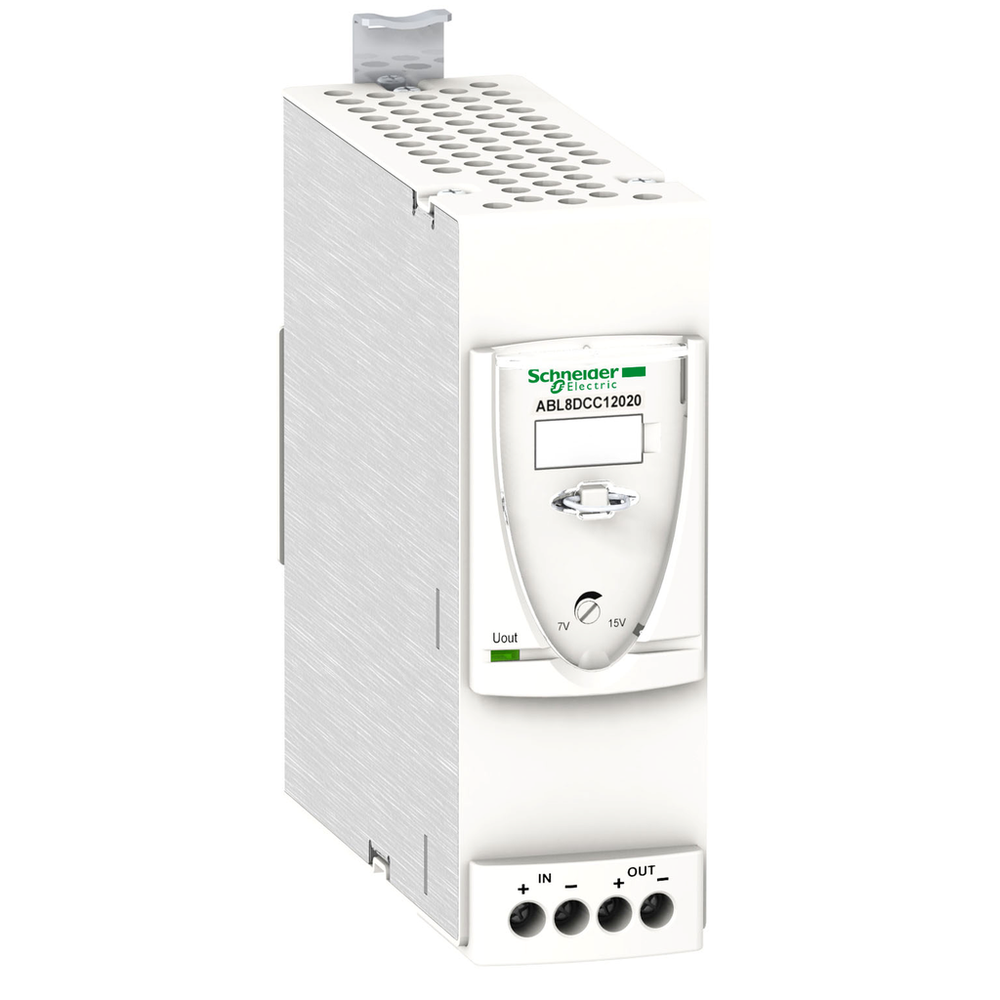

Schneider Electric ABL8DCC12020
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This ABL8 converter module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 2A at 12V DC and a rated power output of 24W. This converter module is designed for automation and instrumentation circuits requiring extra low voltage (ELV / SELV). It finely adjusts the output voltage with a rotary trimmer, to take into account the voltage at the end of your auxiliary control circuit. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,300kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by RCM, EAC, CCSAus, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.converter module, modicon, 24W, 24 to 28.8V DC, 12V DC, 2A, for regulated SMPS
Schneider Electric ABL8DCC12020 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- input connection screw type terminals 2 x 0.5...2 x 4 mm² AWG 24...AWG 10 || output connection screw type terminals 2 x 0.5...2 x 4 mm² AWG 24...AWG 10
- Efficiency
- 82 %
- Fixing Mode
- by clips 35 mm symmetrical DIN rail horizontal || by clips 35 mm symmetrical DIN rail vertical
- Input Protection Type
- against reverse polarity
- Input Voltage Limits
- 22...30 V
- Line And Load Regulation
- 1...3 %
- Local Signalling
- for output voltage (> 6 V) 1 LED (green)
- Name Of Test
- induced electromagnetic field EN/IEC 61000-4-6 level 3 || radiated electromagnetic field EN/IEC 61000-4-3 level 3 || rapid transient IEC 61000-4-4 level 3 || surge EN/IEC 61000-4-5 level 2 || conducted/radiated emissions EN 55022 Class B || electrostatic discharges EN/IEC 61000-4-2 || emission EN 61000-6-3
- Net Weight
- 0.3 kg
- Operating Altitude
- 6561.68 ft (2000 m)
- Output Protection Type
- against overload automatic reset || against overvoltage tripping if U > 7.8 V, automatic reset || against short-circuits automatic reset
- Output Voltage Limits
- 7...15 V
- Power Dissipation In W
- 4 W
- Residual Ripple
- <= 100 mV
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 500 V between input and ground || 500 V between input and output || 500 V between output and ground
- Environmental Characteristic
- EMC EN 50081-1 || EMC EN 61000-6-3 || EMC EN/IEC 61000-6-2 || safety EN/IEC 60950-1 || safety IEC 61204
- Ip Degree Of Protection
- IP20 conforming to EN/IEC 60529
- Overvoltage Category
- class 3
- Product Certifications
- RCM || EAC || cCSAus || UL
- Relative Humidity
- 0-90 % during operation || 0-95 % during storage
- Vibration Resistance
- 2 gn 11.9-150 Hz)EN/IEC 61131-2 || 3.5 mm 3-11.9 Hz)EN/IEC 61131-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI120913EN
- Environmental Disclosure
- ENVPEP061201EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Input Voltage
- 24...28.8 V DC
- Kw Rating
- 24 W
- Output Voltage
- 12 V DC
- Power Supply Output Current
- 2 A
- Product Or Component Type
- converter module
- Range Of Product
- Phaseo Universal
