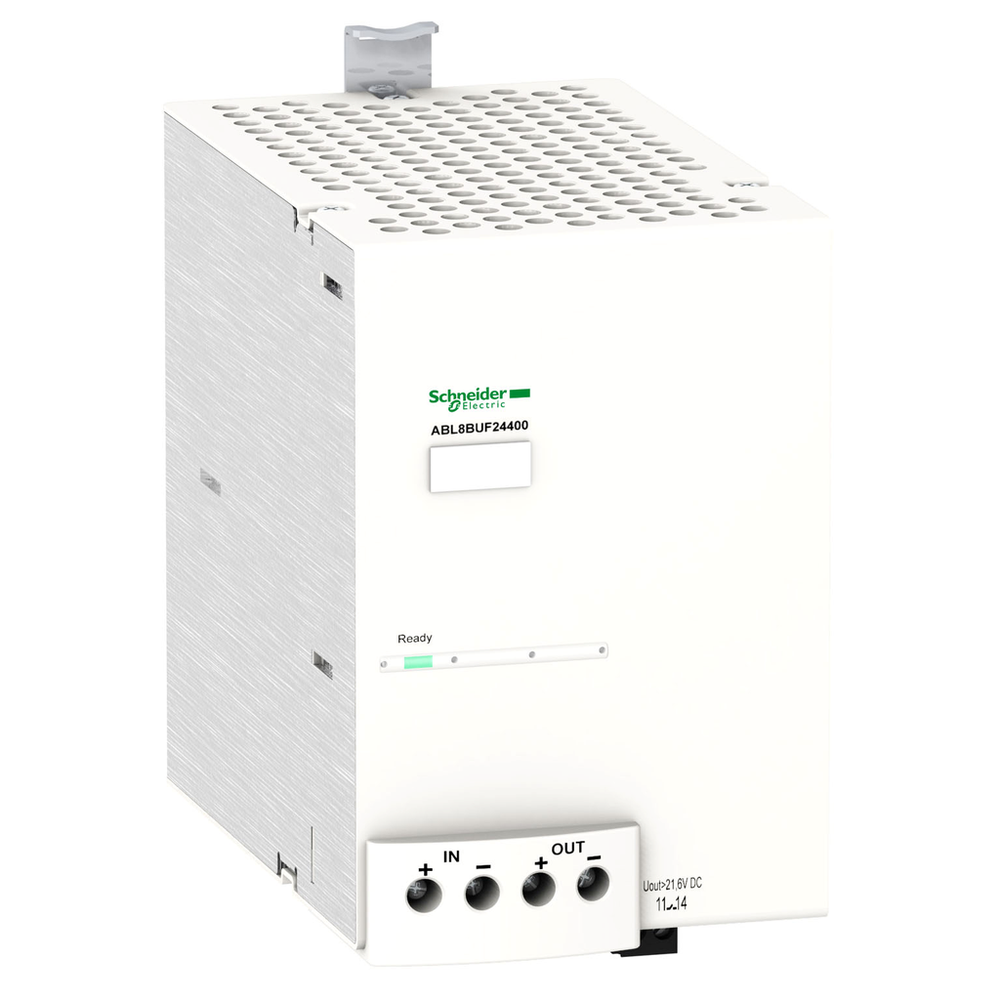

Schneider Electric ABL8BUF24400
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This ABL8 buffer module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 40A at 24V DC. This buffer module is designed to provide power during consumption surges or during short network power losses. It provides temporary backup power in case of deep voltage sags and breaks, without the use of batteries. It weighs 1,200kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.buffer module, phaseo ABL7 ABL8, 24 to 28.8V DC, 40A, for power supply
Schneider Electric ABL8BUF24400 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Activation Threshold
- (Uin-1) V and 22 V min
- Charging Time
- 25 s
- Connections - Terminals
- input connection screw type terminals 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 || output connection screw type terminals 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 || diagnostic relay removable screw terminal block 1 x 2.5 mm² AWG 14
- Current Consumption
- 0.6 A on load || 0.1 mA no load || <= 40.6 A
- Fixing Mode
- by clips 35 mm symmetrical DIN rail horizontal || by clips 35 mm symmetrical DIN rail vertical
- Input Voltage Limits
- 22...30 V
- Local Signalling
- for buffer ready 1 LED (green) || for buffer ready 1 relay
- Marking
- CE
- Maximum Power Dissipation In W
- 15 W
- Name Of Test
- electrostatic discharges EN/IEC 61000-4-2 || emission EN 61000-6-3 || induced electromagnetic field EN/IEC 61000-4-6 level 3 || radiated electromagnetic field EN/IEC 61000-4-3 level 3 || rapid transient IEC 61000-4-4 level 3 || surge EN/IEC 61000-4-5 level 2 || conducted/radiated emissions EN 55022 Class B, 20 %
- Net Weight
- 1.2 kg
- Number Of Output Channels
- 1
- Operating Altitude
- 6561.68 ft (2000 m)
- Output Coupling
- parallel
- Output Protection Type
- against overload > 45 A || against short-circuits power-supplied mode, automatic reset || against undervoltage tripping if U < 19 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 500 V between input and ground || 500 V between output and ground
- Environmental Characteristic
- EMC EN 61000-6-3 || EMC EN/IEC 61000-6-2 || safety EN/IEC 60950-1 || safety EN/IEC 61204-3
- Ip Degree Of Protection
- IP20 conforming to EN/IEC 60529
- Mtbf Reliability
- 1119603 H at 24 V DC with UTE C80-810 calculation method
- Overvoltage Category
- class II VDE 0106-1
- Product Certifications
- RCM || EAC
- Relative Humidity
- 0-90 % during operation || 0-95 % during storage
- Standards
- UL 508 || CSA C22.2 No 60950-1
- Vibration Resistance
- 2 gn 11.9-150 Hz)EN/IEC 61131-2 || 3.5 mm 3-11.9 Hz)EN/IEC 61131-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Holding Time
- 0.1 s 40 A || 6 s 0.5 A
- Input Voltage
- 24...28.8 V DC
- Maximum Output Current
- 40 A
- Output Voltage
- (Uin-0.25) V nominal mode DC || (Uin-1) V buffer mode DC
- Product Or Component Type
- buffer module
- Range Of Product
- Phaseo
