Description

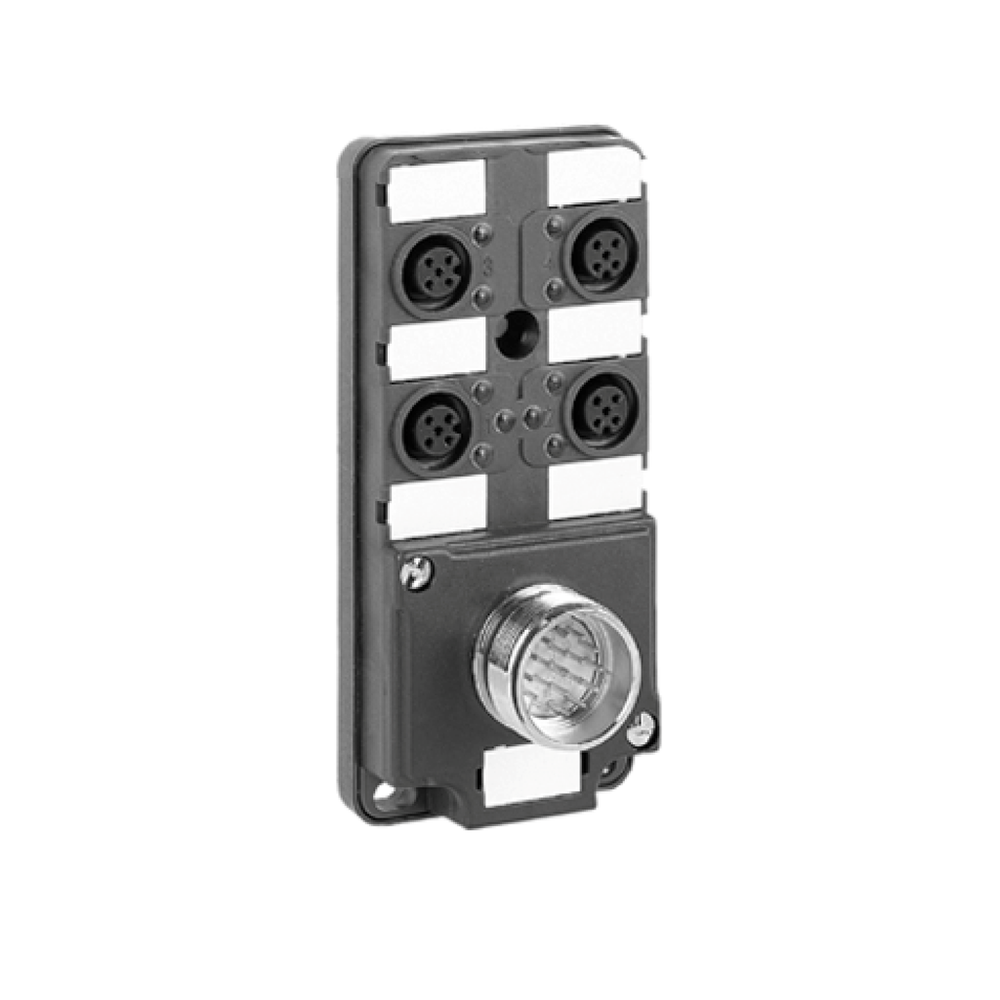

IP67 passive splitter box - M23 connector - with 4 channels M12 connector - Led
Schneider Electric ABE9C1241C23 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Contact Resistance
- 5000 µOhm
- Current Of Common
- 16 A 1-1 mm² || 12 A 0.75-0.75 mm²
- Current Per Channel
- 4 A
- Fixing Mode
- M4 screw fixing
- Insulation Group
- category 3 VDE 0110
- Net Weight
- 0.08 kg
- Number Of Ways
- 8 ways
- Operating Position
- any position
- Separation Of Commons
- without
- [Ue] Rated Operational Voltage
- 24 V DC
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-80 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP67 conforming to IEC 529
- Product Certifications
- cULus
- Shock Resistance
- 30 gn 11 ms EN 68-2-2
- Vibration Resistance
- 0.2 gn 57-150 Hz)IEC 68-2-6, FC tests
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Electrical Connection
- 1 male connector M23 19 pins || 4 female connectors M12 5 pins
- Number Of Channels
- 4
- Product Or Component Type
- IP67 passive splitter box
- Range Of Product
- Advantys ABE9
- Status Led
- 1 LED (Green) power ON || 1 LED per channel (Yellow) channel status
