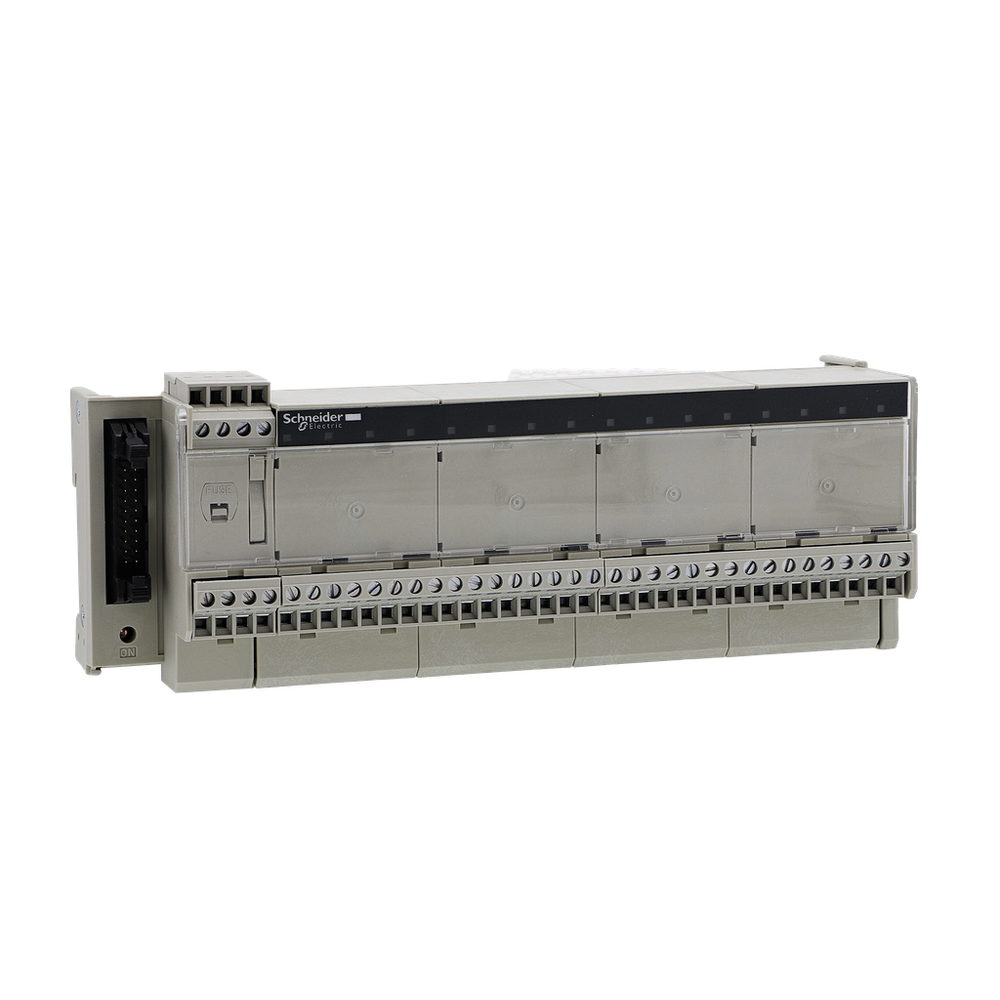

Schneider Electric ABE7R16S212
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm
Schneider Electric ABE7R16S212 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Contact Bounce Time
- <= 5 ms 1 NO
- Contacts Type And Composition
- 1 NO preactuator end
- Current Per Channel
- 5 A preactuator end
- Drop-Out Current
- 1 mA 20 °C
- Drop-Out Voltage
- 2.4 V 20 °C PLC end)
- Electrical Durability
- 500000 cycles 600 mA 24 V DC-13 10 ms preactuator end) || 500000 cycles 1500 mA 230 V AC-12 preactuator end) || 500000 cycles 1500 mA 24 V DC-12 preactuator end) || 500000 cycles 900 mA 230 V AC-15 preactuator end)
- Electrical Reliability
- 1e-008
- Fixing Mode
- by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
- Installation Category
- II IEC 60664-1
- Maximum Current Per Output Common
- 10 A
- Maximum Power Dissipation Per Channel In W
- 0.36 W PLC end)
- Maximum Switching Voltage
- 250 V AC 50/60 Hz IEC 60947-5-1 || 30 V DC IEC 60947-5-1
- Mechanical Durability
- 20000000 cycles
- Minimum Switching Current
- 10 mA >= 5 V
- Net Weight
- 0.4 kg
- Operating Rate In Hz
- 10 Hz no load || 0.5 Hz at Ie
- Operating Time
- <= 10 ms coil energisation and NO closing || <= 5 ms coil de-energisation and NO opening
- Polarity Distribution
- common per group of 8 channels on both poles
- Switching Frequency
- <= 0.5 Hz || <= 10 Hz
- Terminal Block Type
- removable
- Threshold Tripping Voltage
- 19.7 V 40 °C
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 2000 V
- Width
- 206 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2
- Ambient Air Temperature For Storage
- -40-80 °C IEC 61131-2
- Dielectric Strength
- 2000 V IEC 60947-1
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Max Immunity To Microbreaks
- 5 ms
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- UL || CSA || GL || DNV || EAC
- Protective Treatment
- TC
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1212029EN
- Environmental Disclosure
- ENVPEP121229EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Number Of Channels
- 16
- Number Of Terminal Per Channel
- 2
- Product Or Component Type
- electromechanical output relay sub-base
- Range Of Product
- Modicon ABE7
- [Us] Rated Supply Voltage
- 24 V DC PLC end
