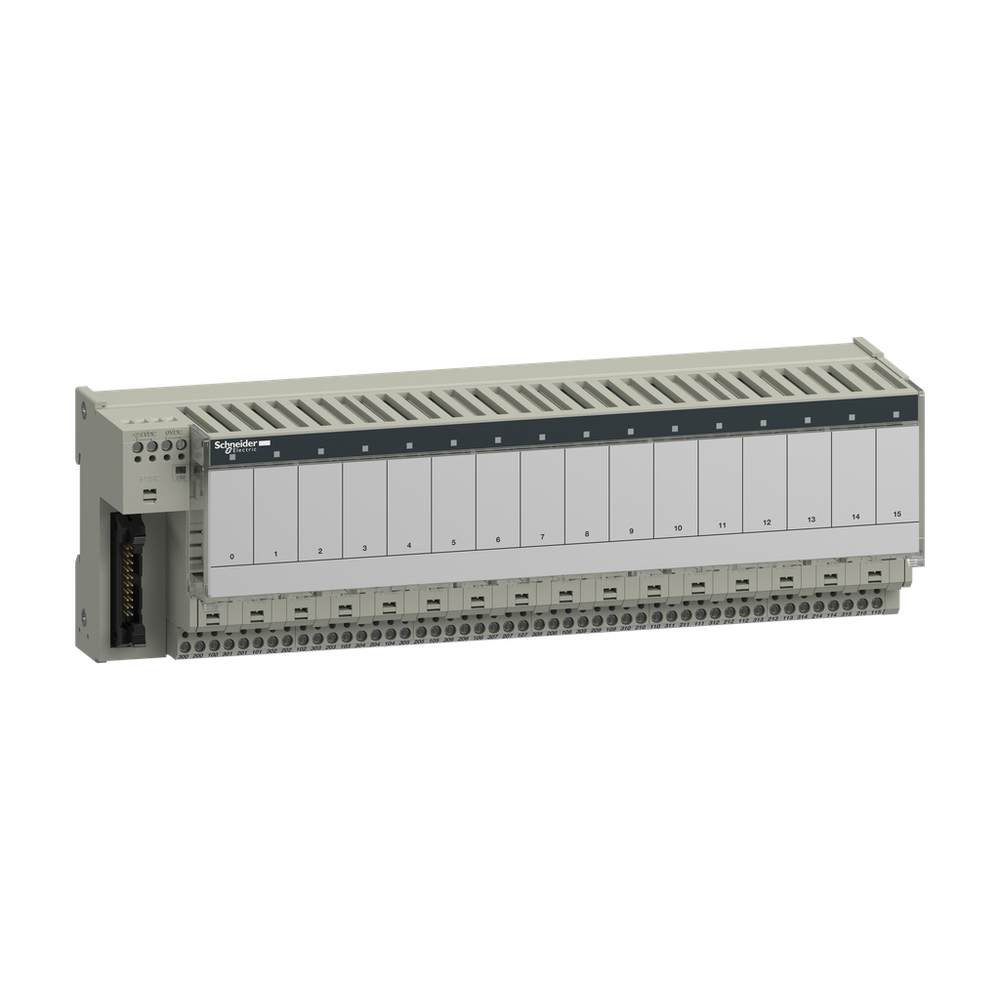

Schneider Electric ABE7P16T334
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This sub-base for plug-in relay, provides 16 channels. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.9kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABS7A3M, ABE7ACC21, ABS7SC3E and ABR7S33 plug-in relay. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.sub-base for plug-in relay ABE7 - 16 channels - fuses - relay 12.5 mm
Schneider Electric ABE7P16T334 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Fixing Mode
- by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
- Installation Category
- II IEC 60664-1
- Maximum Current Per Output Common
- 16 A
- Maximum Supply Current
- 1 A
- Net Weight
- 0.9 kg
- Polarity Distribution
- volt-free
- Product Compatibility
- ABS7A3M || ABE7ACC21 || ABS7SC3E || ABR7S33 || ABS7SC3..
- Short-Circuit Protection
- 1 A internal fuse, 5 x 20 mm, fast blow PLC end) || 2 A fuse per channel, 5 x 20 mm, fast blow output circuit)
- Status Led
- 1 LED per channel (Green) channel status || 1 LED (Green) power ON
- Supply Circuit Type
- DC
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV
- [Ui] Rated Insulation Voltage
- 300 V coil circuit/contact circuits IEC 60947-1 || 2000 V terminals/mounting rails
- Voltage Drop On Power Supply Fuse
- 0.3 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2
- Ambient Air Temperature For Storage
- -40-80 °C IEC 61131-2
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- CSA || DNV || UL || GL || EAC
- Resistance To Electrostatic Discharge
- 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Vibration Resistance
- 2 gn 10-150 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1212029EN
- Environmental Disclosure
- ENVPEP121229EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Connections - Terminals
- screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
- Number Of Channels
- 16
- Product Or Component Type
- sub-base for plug-in relay
- Range Of Product
- Modicon ABE7
- Sub-Base Type
- output sub-base
- [Us] Rated Supply Voltage
- 19...30 V IEC 61131-2
