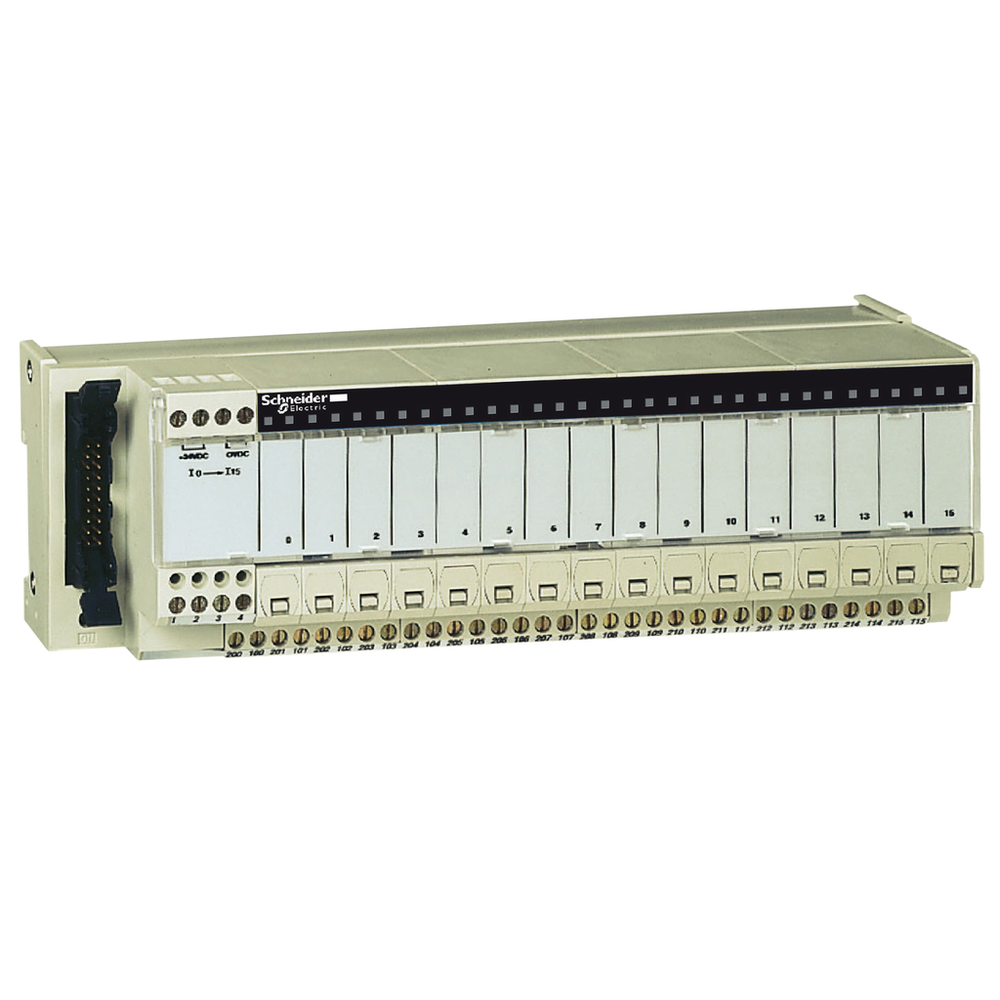

Schneider Electric ABE7H16F43
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
passive connection sub-base ABE7 - 16 outputs - fuses - Led - isolator
Schneider Electric ABE7H16F43 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connector Type
- HE-10
- Current Per Channel
- 0.125 A
- Fixing Mode
- by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
- Installation Category
- II IEC 60664-1
- Maximum Current Per Output Common
- 1.8 A
- Maximum Supply Current
- 1.8 A
- Maximum Voltage Drop Per Channel
- 2 V
- Net Weight
- 0.64 kg
- Number Of Horizontal Rows
- 1
- Pin Number
- 20 pins
- Polarity Distribution
- 0 V
- Short-Circuit Protection
- 2 A internal fuse, 5 x 20 mm, fast blow PLC end) || 0.125 A fuse per channel, 5 x 20 mm, fast blow output circuit)
- Status Led
- 1 LED per channel (Green) channel status || 1 LED per channel (Red) blown fuse indication || 1 LED (Green) power ON
- Supply Circuit Type
- DC
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- [Ui] Rated Insulation Voltage
- 2000 V
- Voltage Drop On Power Supply Fuse
- 0.3 V
- Width
- 206 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2
- Ambient Air Temperature For Storage
- -40-80 °C IEC 61131-2
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- DNV || GL || UL || CSA || EAC
- Resistance To Electrostatic Discharge
- 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
- Resistance To Incandescent Wire
- 750 °C IEC 60695-2-11
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Vibration Resistance
- 2 gn 10-150 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1212029EN
- Environmental Disclosure
- ENVPEP121229EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Channel Additional Information
- 1 switch disconnector per channel
- Connections - Terminals
- screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
- Number Of Channels
- 16
- Number Of Terminal Per Channel
- 2
- Product Or Component Type
- passive discrete I/O sub-base
- Range Of Product
- Modicon ABE7
- Sub-Base Type
- output sub-base
- [Us] Rated Supply Voltage
- 19...30 V IEC 61131-2
