Description

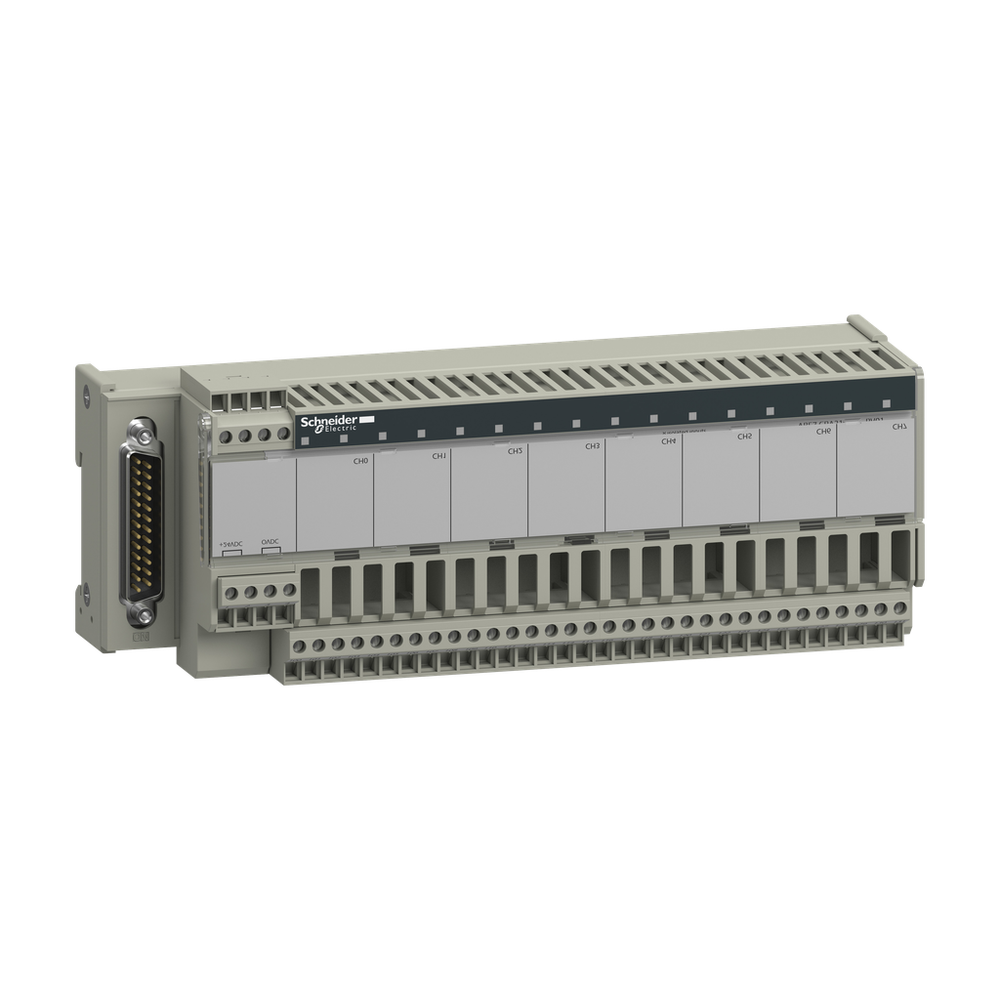

This connection sub-base is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. It is for distribution of 8 analog input channels. It is a sub-base with a control circuit voltage of 24V DC. The distributed analog input channels are isolated from one another. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.41kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. It meets CSA C22.2, IEC 61131 and UL 508 standards. This connection sub-base is suitable for use with Modicon X80 IO modules such as BMXAMI0800, BMXAMI0810 and BMEAHI0812. It is delivered in 1 package (PCE type). It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.connection sub-base ABE7 - for distribution of 8 analog input channels
Schneider Electric ABE7CPA31 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connection To Plc
- SUB-D 25
- Fixing Mode
- by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
- Function Of Module
- isolated analogue input Premium
- Installation Category
- II IEC 60664-1
- Net Weight
- 0.41 kg
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- [Uc] Control Circuit Voltage
- 24 V DC
- [Ui] Rated Insulation Voltage
- 2000 V terminals/mounting rails
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C IEC 61131-2
- Ambient Air Temperature For Storage
- -40-80 °C IEC 61131-2
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- DNV || GL || CSA || UL
- Protective Treatment
- TC
- Resistance To Electrostatic Discharge
- 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Standards
- CSA C22.2 || IEC 61131 || UL 508
- Vibration Resistance
- 2 gn 10-150 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Connections - Terminals
- screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
- Number Of Channels
- 8
- Product Or Component Type
- connection sub-base for counter and analogue channels
- Range Of Product
- Modicon ABE7
