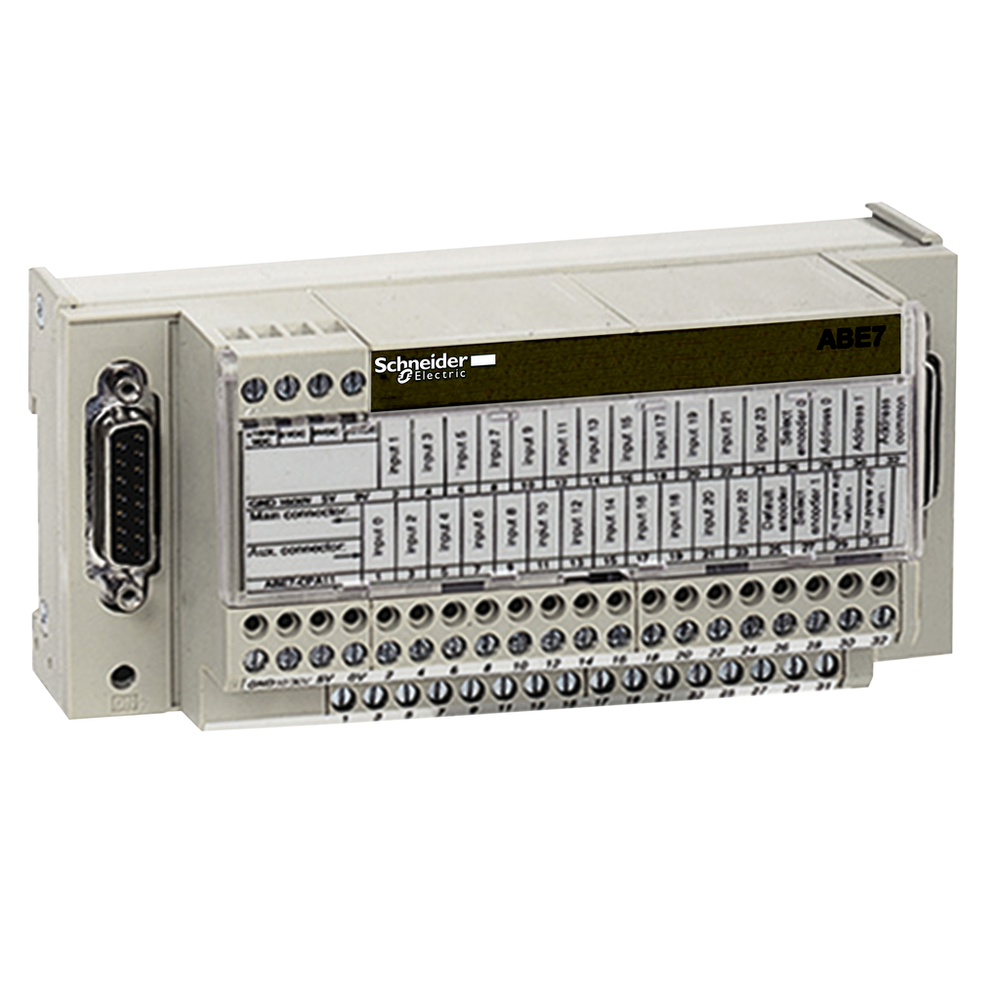

Schneider Electric ABE7CPA01
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
connection sub-base ABE7 - for counter and analog channels
Schneider Electric ABE7CPA01 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connection To Plc
- SUB-D 15
- Fixing Mode
- by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
- Function Of Module
- counting and analogue TSX Micro || counting, axis control, position control Premium
- Installation Category
- II IEC 60664-1
- Net Weight
- 0.3 kg
- Product Compatibility
- TSX Micro TSX3722 || Premium TSXCAY21 || Premium TSXCAY41 || Premium TSXCTY2A || Premium TSXCTY4A || TSX Micro TSXCTZ1A || TSX Micro TSXCTZ2A
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- [Uc] Control Circuit Voltage
- 24 V DC
- [Ui] Rated Insulation Voltage
- 2000 V terminals/mounting rails
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-80 °C IEC 61131-2
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- DNV || CSA || UL || GL || EAC
- Resistance To Electrostatic Discharge
- 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
- Resistance To Incandescent Wire
- 750 °C IEC 60695-2-11
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Vibration Resistance
- 2 gn 10-150 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1212029EN
- Environmental Disclosure
- ENVPEP121229EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Connections - Terminals
- screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
- Number Of Channels
- 2 || 8 || 1
- Product Or Component Type
- connection sub-base for counter and analogue channels
- Range Of Product
- Modicon ABE7
