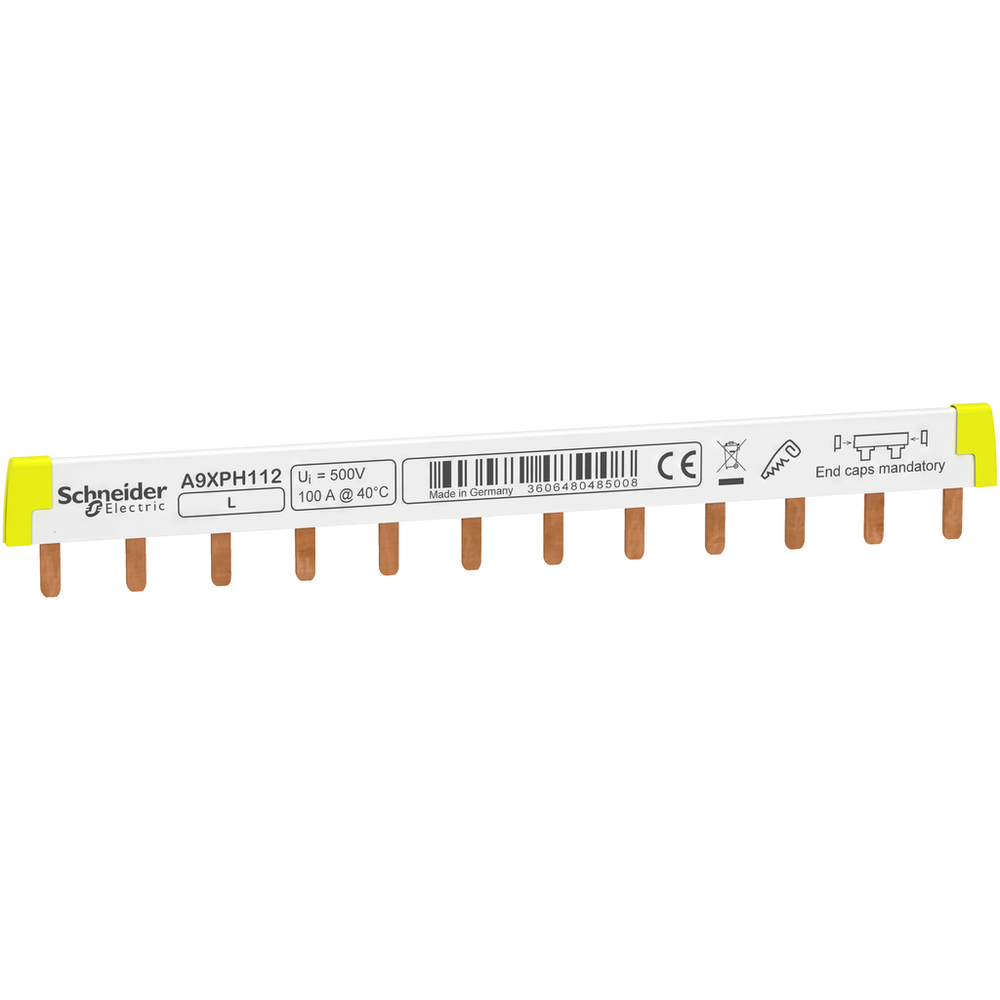

Schneider Electric A9XPH112
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Acti9 product is a cuttable horizontal comb busbar 12 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to 1L installations. The type is L (Line). It is a set of 1 device. It is suitable for 12 devices (1P). The length is 220mm.The total number of modules of 18mm is 12. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 1. The number of poles is 1. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.Acti9 - comb busbar - 1L - 18 mm pitch - 12 modules - 100A
Schneider Electric A9XPH112 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- 9 Mm Pitches
- 24
- Color
- White RAL 9003)
- Connection Pitch
- 18 mm
- Connector Type
- tooth
- Device Presentation
- cuttable
- Distance Between Way
- 18 mm
- [Ie] Rated Operational Current
- 100 A 40 °C
- Insulation
- insulated
- Marking
- L
- Mounting Location
- top or bottom tunnel type terminals || top or bottom double terminal
- Number Of Ways
- 12 ways 1 L
- Poles Configuration For 1 Way
- 1 x 1P
- Range Compatibility
- Acti 9 (Acti9 iC60) || Acti 9 (Acti9 iK60) || Acti 9 (Acti9 iID) || Acti 9 (Acti9 iID K) || Acti 9 (Acti9 iSW) || Acti 9 (Acti9 iSW-NA) || Multi9 (Multi9 C60)
- [Ue] Rated Operational Voltage
- 415 V AC
- [Ui] Rated Insulation Voltage
- 500 V AC IEC 61439-2
- Width
- 220 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Fire Resistance
- 960 °C 30 s ) IEC 60695-2-1
- Ip Degree Of Protection
- IP20 with end-pieces and tooth covers
- Pollution Degree
- 3 IEC 60947-7-1
- Standards
- IEC 60947-7-1 || IEC 61439-2
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Environmental Disclosure
- ENVPEP2005011
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Accessory / Separate Part Category
- connection accessory
- Lines Description
- 1L
- Mounting Mode
- horizontal
- Product Or Component Type
- comb busbar
- Range
- Acti9
- Total Number Of 18 Mm Modules
- 12
