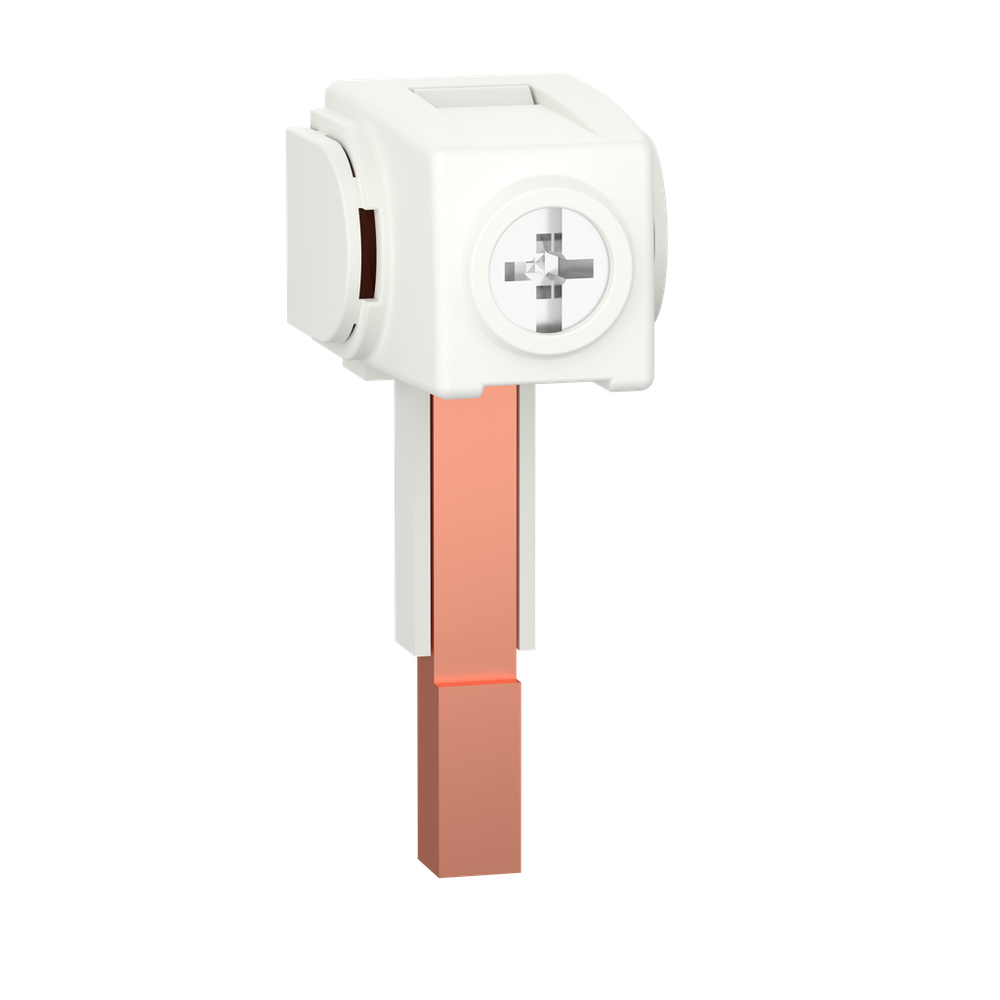

Schneider Electric A9XPCM04
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Acti9 Linergy FH monoconnect connector for Acti9 iC60 and Acti9 iK60 facilitates comb busbar power supply. It is a set of 4 devices. The Type of electric connection is PIN. The pin cross section is 16mm2. The cross section of the cable connector is 35mm2. The tightening torque is 4N.m. The color of the device is white RAL9003. The pollution degree is 3. It complies with IEC 60947-7-1 and IEC 61439-2 standards.Set of 4 connectors 100A monoconnect for 3P+N comb busbar
Schneider Electric A9XPCM04 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- White RAL 9003)
- Connections - Terminals
- screw clamp terminals top connector 35-35 mm²
- Line Rated Current
- 100 A
- Range Compatibility
- Acti 9 (Acti9 iC60) comb busbar || Acti 9 (Acti9 iK60) comb busbar || Acti 9 (Acti9 iDPN) comb busbar || Acti 9 (Acti9 iDPN Vigi) comb busbar || Acti 9 (Acti9 iID) comb busbar || Acti 9 (Acti9 iID K) comb busbar || Acti 9 (Acti9 iSW) comb busbar || Acti 9 (Acti9 iSW-NA) comb busbar || Acti 9 (Acti9 STI) comb busbar
- Tightening Torque
- 4-4 N.m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP2005011
- Eu Rohs Directive
- Compliant
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Accessory / Separate Part Category
- connection accessory
- Comb Busbar And Distribution Block Compatibility
- monoconnect
- Poles Description
- 3P + N
- Product Name
- Linergy FH
- Product Or Component Type
- connector
- Quantity Per Set
- set of 4
- Range
- Acti9
