Schneider Electric A9Q51225
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

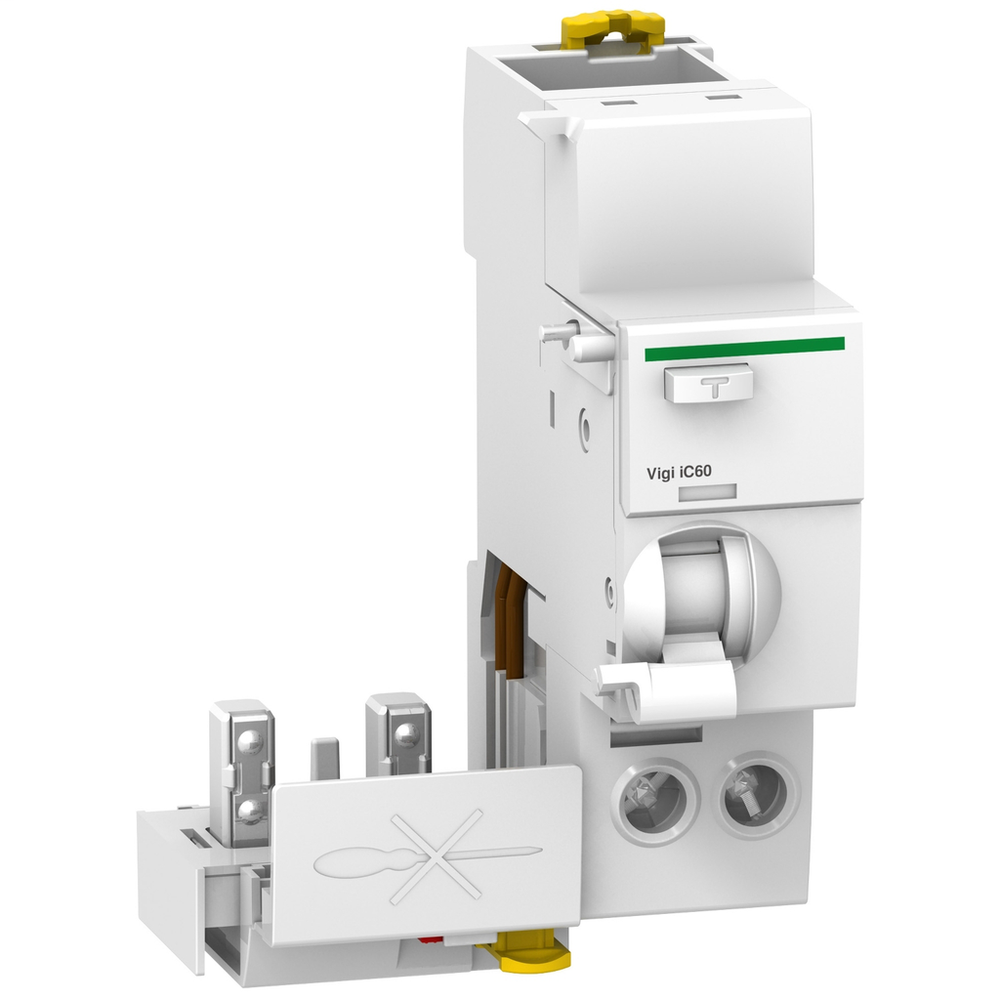

Vigi iC60 - earth leakage add-on block - 2P - 25A - 30mA - A type
Schneider Electric A9Q51225 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Comb Busbar and Distribution Block Compatibility
- Bottom : YES
- Connections - Terminals
- Tunnel type terminal downside 1 cable(s) 1...25 mm² rigid without cable end || Tunnel type terminal downside 1 cable(s) 1...16 mm² flexible without cable end || Tunnel type terminal downside 1 cable(s) 1...16 mm² flexible with cable end
- Depth
- 73.5 mm
- Device Location in System
- Outgoer
- Electrical Connection to mcb
- Plug in
- Height
- 91 mm
- Local Signalling
- Trip indicator
- Mounting Mode
- Clip-on
- Mounting Support
- DIN rail
- Product Compatibility
- Single terminal
- Product Weight
- 0.165 kg
- Range Compatibility
- Acti 9 iC60 || Acti 9 Reflex iC60
- Residual Current Tripping Technology
- Voltage independent
- Tightening Torque
- 2 N.m (bottom)
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV conforming to IEC 60947-2
- [Ui] Rated Insulation Voltage
- 500 V AC 50/60 Hz conforming to IEC 60947-2
- Wire Stripping Length
- 14 mm (bottom)
Contractual Warranty
- Warranty period
- 18 months
Environment
- Ambient Air Temperature for Operation
- -25...60 °C
- Ambient Air Temperature for Storage
- -40...85 °C
- Electromagnetic Compatibility
- 8/20 µs impulse withstand 250 A conforming to IEC 61009-1
- IP Degree of Protection
- IP40 modular enclosure conforming to IEC 60529 || IP20 conforming to IEC 60529
- Pollution Degree
- 3 conforming to IEC 60947-2
Main
- 9 mm Pitches
- 3
- Device Short Name
- Vigi iC60
- Earth-leakage Protection Time Delay
- Instantaneous
- Earth leakage Protection Type
- Type A
- Earth-leakage Sensitivity
- 30 mA
- [In] Rated Current
- 25 A
- Network Frequency
- 50/60 Hz
- Network Type
- AC
- Poles Description
- 2P
- Product or Component Type
- Add-on residual current devices
- Range
- Acti 9
- Standards
- EN 61009-1|| IEC 61009-1
- [Ue] Rated Operational Voltage
- 230/400 V AC 50/60 Hz conforming to EN 61009-1 || 230/415 V AC 50/60 Hz conforming to IEC 61009-1
Offer Sustainability
- Product end of life instructions
- Need no specific recycling operations
- Product environmental profile
- Available
- Sustainable offer status
- Green Premium product
