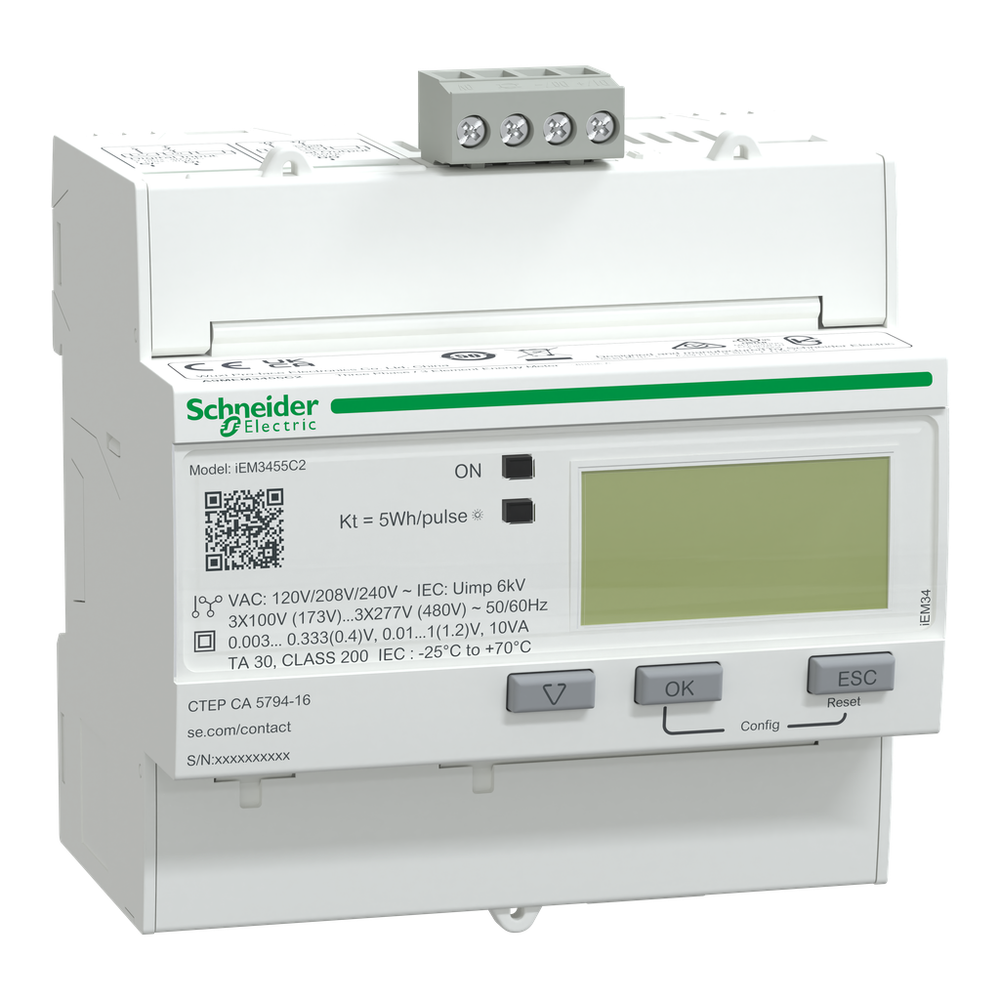

Schneider Electric A9MEM3455C2
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-21, and per ANSI C12.20. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 0.333V or 1V transducer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.42 in (87 mm). Compatible with power management software to take advantage of the IoT digital power installation. This model is CTEP approved for Sub-Billing in the state of California. The range is locked at the factory for 200A.iEM3455 energy meter - Modbus - 1 DI - 1 DO - multi-tariff - LVCT - CTEP 200A
Schneider Electric A9MEM3455C2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accuracy Class
- class 0.5S active energy IEC 62053-22 || class 0.5S active energy ANSI C12.20
- Analogue Input Type
- split core current transducer 0.333 V or 1 V
- Communication Port Protocol
- Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none
- Communication Port Support
- screw terminal block RS485
- Connections - Terminals
- current circuit screw terminals 6-6 mm² || voltage circuit screw terminals 2.5-2.5 mm² || input/output circuit screw terminals 1.5-1.5 mm² || communication screw terminals 2.5-2.5 mm²
- Device Application
- sub billing || multi-tariff || partial meter
- Display Type
- LCD display
- Information Displayed
- tariff 4)
- Local Signalling
- Green indicator light power ON || Yellow flashing LED accuracy checking || alarm overload || Yellow indicator light communications are active on the Modbus port (Modbus)
- Maximum Value Measured
- 99999999.9 kWh || 99999999 MWh
- Measurement Current
- 1-32767000 mA
- Metering Type
- active, reactive, apparent energy (signed, four quadrant)
- Mounting Mode
- clip-on
- Mounting Support
- DIN rail
- Network Frequency
- 60 Hz || 50 Hz
- Number Of Inputs
- 1 digital 0...5 V/11...40 V 24 V DC
- Number Of Outputs
- 1 digital (static)
- Output Voltage
- 5...40 V DC@50 mA
- Poles Description
- 3P + N || 1P + N || 3P
- Product Certifications
- CE IEC 61010-1 safety) || CE EN 61557-12 power monitor) || CE EN/IEC 61326-1 EMC) || UKCA BS EN 61010-1 safety) || UKCA BS EN 61557-12 power monitor) || UKCA BS EN 61326-1 EMC) || cULus UL 61010-1 safety) || cULus EN 61010-1 safety) || KZ || RCM
- Rated Voltage
- 100-277 V +/- 20 % || 173-480 V +/- 20 %
- Sampling Rate
- 32 samples/cycle
- Standards
- BS EN 61326-1 || IEC 61326-1 || EN 61326-1 || BS EN 61010-1 || EN 61010-1 || IEC 61010-1 || UL 61010-1 || BS EN 61010-2-30 || IEC 61010-2-30 || EN 61010-2-30 || UL 61010-2-30 || ANSI C12.20
- Technology Type
- electronic
- Tightening Torque
- input/output circuit 0.5-0.5 N.m Philips || voltage circuit 0.5-0.5 N.m Philips || current circuit 0.8-0.8 N.m pozidriv || communication 0.5-0.5 N.m Philips
- Type Of Measurement
- active and reactive energy || active and reactive power || current || voltage
- Wire Stripping Length
- input/output circuit: 6 mm || voltage circuit: 8 mm || current circuit: 8 mm || communication: 7 mm
Environment
- 9 Mm Pitches
- 10
- Ambient Air Temperature For Operation
- -25-70 °C - IEC
- Ambient Air Temperature For Storage
- -40-85 °C
- Color
- White
- Depth
- 69 mm
- Height
- 87 mm
- Ik Degree Of Protection
- IK08
- Ip Degree Of Protection
- front panel IP40 IEC 60529 || body IP20 IEC 60529
- Operating Altitude
- < 9842.52 ft (3000 m)
- Pollution Degree
- 2
- Relative Humidity
- 5-95 % 36-36 °C
- Width
- 90 mm
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI111261EN_V1
- Environmental Disclosure
- ENVPEP111276EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- iEM3455
- Product Name
- Acti9 iEM3000
- Product Or Component Type
- energy meter
- Range
- Acti9
