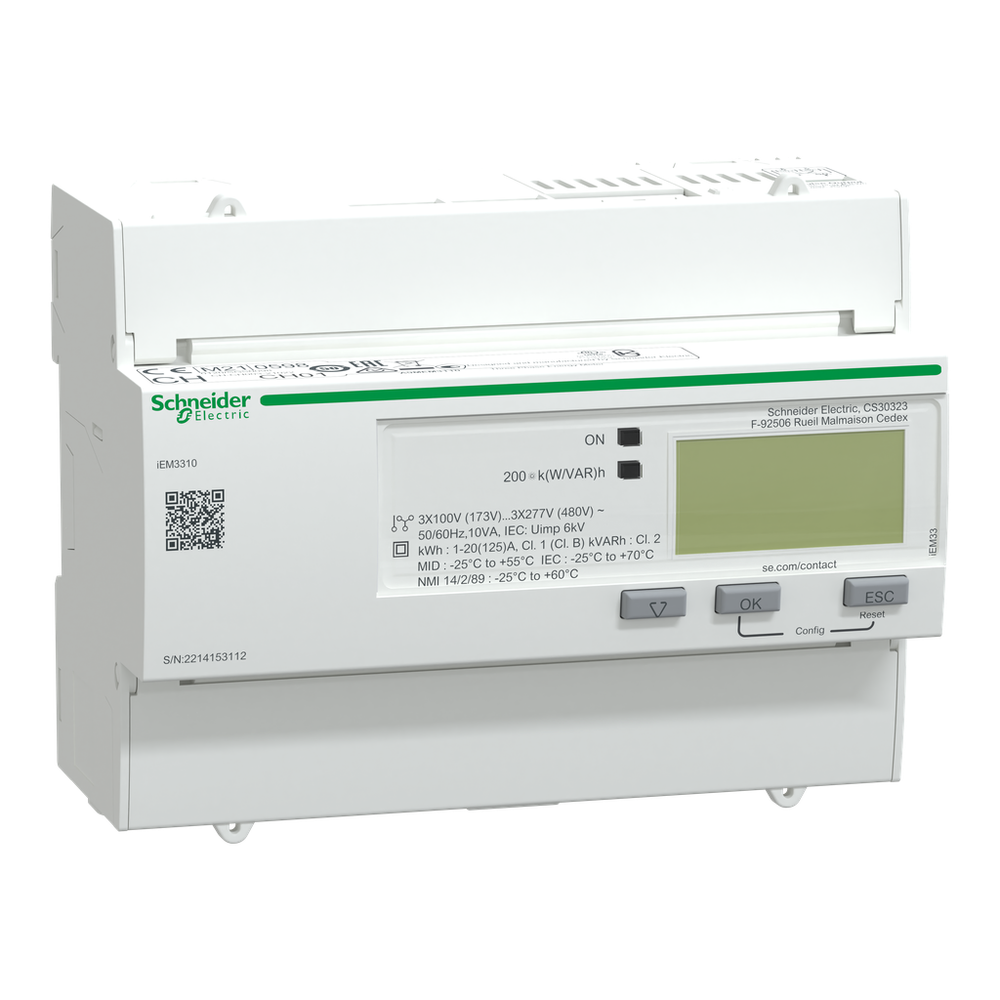

Schneider Electric A9MEM3310
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators. This meter can be used in sub-billing and partial metering applications. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 125A via direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. No primary communication ports. There is one digital pulsed output for energy reading. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 4.96 in (126 mm), depth 2.72in (69 mm), height 4.1 in (103 mm) and product weight 9.17 oz (260 g).iEM3310 energy meter - 125 A - 1 pulse O - MID
Schneider Electric A9MEM3310 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accuracy Class
- class 1 active energy IEC 62053-21 || class 1 active energy IEC 61557-12 || class B active energy EN 50470-3
- Analogue Input Type
- direct input
- Connections - Terminals
- screw terminals 50-50 mm²
- Device Application
- sub billing || partial meter
- Display Type
- LCD display
- Line Rated Current
- 125 A
- Local Signalling
- Green indicator light power ON || Yellow flashing LED accuracy checking
- Maximum Value Measured
- 99999999.9 kWh
- Measurement Current
- 0-125 A
- Mounting Mode
- clip-on
- Mounting Support
- DIN rail
- Network Frequency
- 60 Hz || 50 Hz
- Number Of Inputs
- 0
- Number Of Outputs
- 1 pulse
- Overvoltage Category
- III
- Poles Description
- 3P || 1P + N || 3P + N
- Product Certifications
- CE IEC 61010-1 safety) || CE EN 61557-12 power monitor) || CE EN/IEC 61326-1 EMC) || UKCA BS EN 61010-1 safety) || UKCA BS EN 61557-12 power monitor) || UKCA BS EN 61326-1 EMC) || cULus UL 61010-1 safety) || cULus EN 61010-1 safety) || EAC EN 50470-3 sub-meter) || RCM EN 62052 sub-meter) || KZ EN 50470-3 sub-meter) || METAS EN 50470-1 sub-meter) || MID EN 50470-3 sub-meter) || MID EN 50470-1 sub-meter) || NMI NMI M 6-1
- Rated Voltage
- 100-277 V || 173-480 V
- Sampling Rate
- 32 samples/cycle
- Standards
- BS EN 61557-12 || IEC 61557-12 || EN 61557-12 || BS EN 61326-1 || IEC 61326-1 || EN 61326-1 || BS EN 62052-11 || IEC 62052-11 || EN 62052-11 || BS EN 62053-21 || IEC 62053-21 || EN 62053-21 || BS EN 62052-23 || IEC 62053-23 || EN 62052-23 || BS EN 62052-31 || IEC 62052-31 || EN 62052-31 || BS EN 61010-1 || EN 61010-1 || IEC 61010-1 || UL 61010-1 || BS EN 61010-2-30 || IEC 61010-2-30 || EN 61010-2-30 || UL 61010-2-30 || BS EN 50470-3 || EN 50470-3 || BS EN 50470-1 || EN 50470-1 || ANSI C12.16
- Technology Type
- electronic
- Type Of Measurement
- active energy
Environment
- 9 Mm Pitches
- 14
- Ambient Air Temperature For Operation
- -25-55 °C - MID || -25-70 °C - IEC || -25-60 °C - IEC
- Ambient Air Temperature For Storage
- -40-85 °C
- Color
- White
- Depth
- 69.3 mm
- Height
- 103.2 mm
- Ip Degree Of Protection
- front panel IP40 IEC 60529 || body IP20 IEC 60529
- Operating Altitude
- < 6561.68 ft (2000 m)
- Pollution Degree
- 2
- Relative Humidity
- 5-95 % 50-50 °C
- Width
- 126 mm
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1404007EN
- Environmental Disclosure
- ENVPEP1404007EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- iEM3310
- Product Name
- Acti9 iEM3000
- Product Or Component Type
- energy meter
- Range
- Acti9
