Description

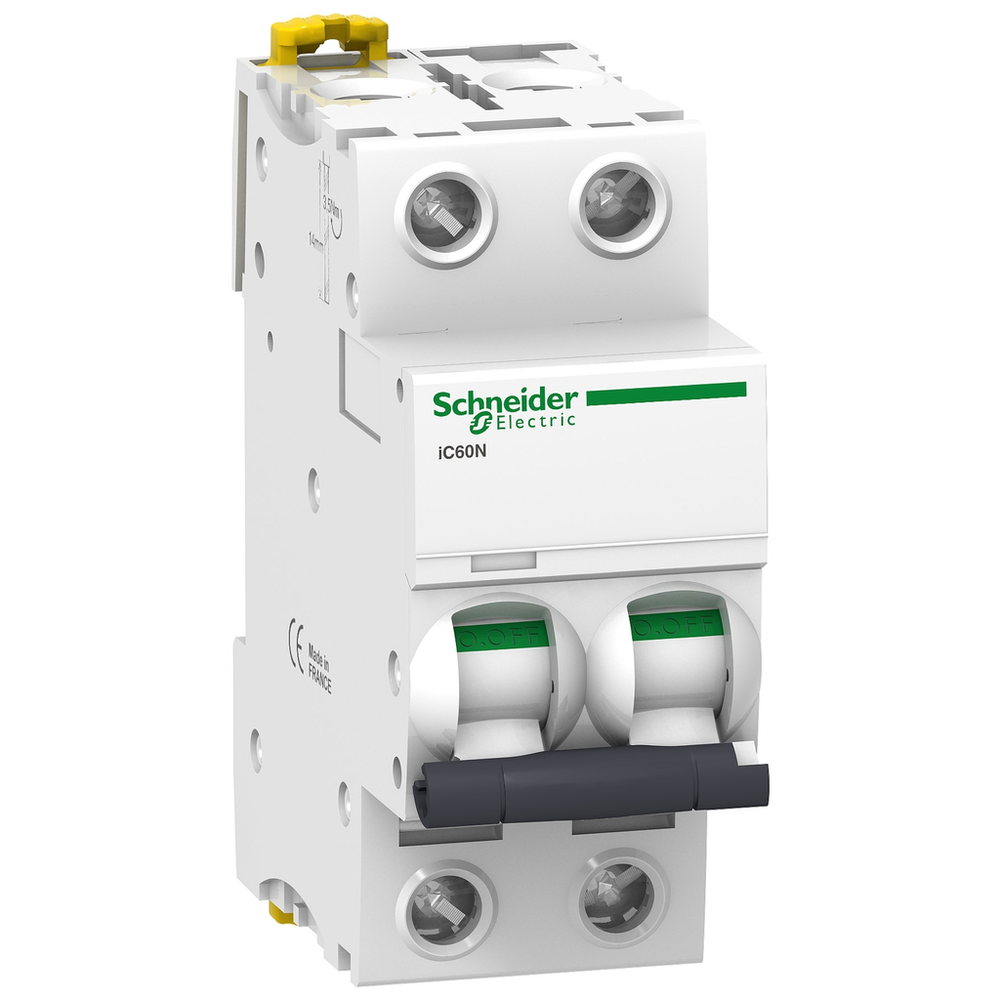

IC60N - miniature circuit breaker - 2P - 10A - C curve
Schneider Electric A9F79210 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- 9 mm Pitches
- 4
- Colour
- White
- Comb Busbar and Distribution Block Compatibility
- YES top or bottom
- Connections - Terminals
- Single terminal, top or bottom rigid wire(s) 1...25 mm² max || Single terminal, top or bottom flexible wire(s) 1...16 mm² max
- Contact Position Indicator
- Yes
- Control Type
- Toggle
- Depth
- 78.5 mm
- Earth-leakage Protection
- Separate block
- Electrical Durability
- 10000 cycles
- Height
- 85 mm
- [Ics] Rated Service Breaking Capacity
- 6000 A 100 % x Icu conforming to IEC 60898-1 - 400 V AC 50/60 Hz || 10 kA 100 % x Icu conforming to IEC 60947-2 - 72...125 V DC || 10 kA 100 % x Icu conforming to EN 60947-2 - 72...125 V DC || 6000 A 100 % x Icu conforming to EN 60898-1 - 400 V AC 50/60 Hz || 4.5 kA 75 % x Icu conforming to IEC 60947-2 - 440 V AC 50/60 Hz || 15 kA 75 % x Icu conforming to EN 60947-2 - 220...240 V AC 50/60 Hz || 7.5 kA 75 % x Icu conforming to EN 60947-2 - 380...415 V AC 50/60 Hz || 4.5 kA 75 % x Icu conforming to EN 60947-2 - 440 V AC 50/60 Hz || 15 kA 75 % x Icu conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz || 7.5 kA 75 % x Icu conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz || 27 kA 75 % x Icu conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz || 27 kA 75 % x Icu conforming to EN 60947-2 - 12...133 V AC 50/60 Hz
- Limitation Class
- 3 conforming to EN 60898-1 || 3 conforming to IEC 60898-1
- Local Signalling
- Trip indicator
- Magnetic Tripping Limit
- 8 x In +/- 20 %
- Mechanical Durability
- 20000 cycles
- Mounting Mode
- Fixed
- Mounting Support
- DIN rail
- Network Frequency
- 50/60 Hz
- Product Weight
- 0.25 kg
- Tightening Torque
- 2 N.m top or bottom
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV conforming to EN 60947-2 || 6 kV conforming to IEC 60947-2
- [Ui] Rated Insulation Voltage
- 500 V AC 50/60 Hz conforming to IEC 60947-2 || 500 V AC 50/60 Hz conforming to EN 60947-2
- Width
- 36 mm
- Wire Stripping Length
- 14 mm top or bottom
Contractual Warranty
- Warranty Period
- 18 months
Environment
- Ambient Air Temperature for Operation
- -35...70 °C
- Ambient Air Temperature for Storage
- -40...85 °C
- IP Degree of Protection
- IP20 conforming to EN 60529 || IP20 conforming to IEC 60529
- Operating Altitude
- 0...2000 m
- Overvoltage Category
- IV
- Pollution Degree
- 3 conforming to EN 60947-2 || 3 conforming to IEC 60947-2
- Relative Humidity
- 95 % ( 55 °C )
- Tropicalisation
- 2 conforming to IEC 60068-1
Main
- Breaking Capacity
- 6 kA Icu conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz || 10 kA Icu conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz || 20 kA Icu conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz || 6000 A Icn conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz || 36 kA Icu conforming to EN/IEC 60947-2 - 12...60 V AC 50/60 Hz || 10 kA Icu conforming to EN/IEC 60947-2 - <= 125 V DC || 36 kA Icu conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz
- Curve Code
- C
- Device Application
- Distribution
- Device Short Name
- IC60N
- [In] Rated Current
- 10 A
- Network Type
- AC || DC
- Number of Protected Poles
- 2
- Poles Description
- 2P
- Product Name
- Acti 9 iC60
- Product or Component Type
- Miniature circuit-breaker
- Range
- Acti 9
- Standards
- EN 60898-1 || EN 60947-2 || IEC 60898-1 || IEC 60947-2
- Suitability for Isolation
- Yes conforming to EN 60947-2 || Yes conforming to IEC 60947-2 || Yes conforming to EN 60898-1 || Yes conforming to IEC 60898-1
- Trip Unit Technology
- Thermal-magnetic
- Utilisation Category
- Category A conforming to EN 60947-2 || Category A conforming to IEC 60947-2
Offer Sustainability
- Product End of Life Instructions
- Need no specific recycling operations
- Product Environmental Profile
- Available
- Sustainable Offer Status
- Green Premium product
