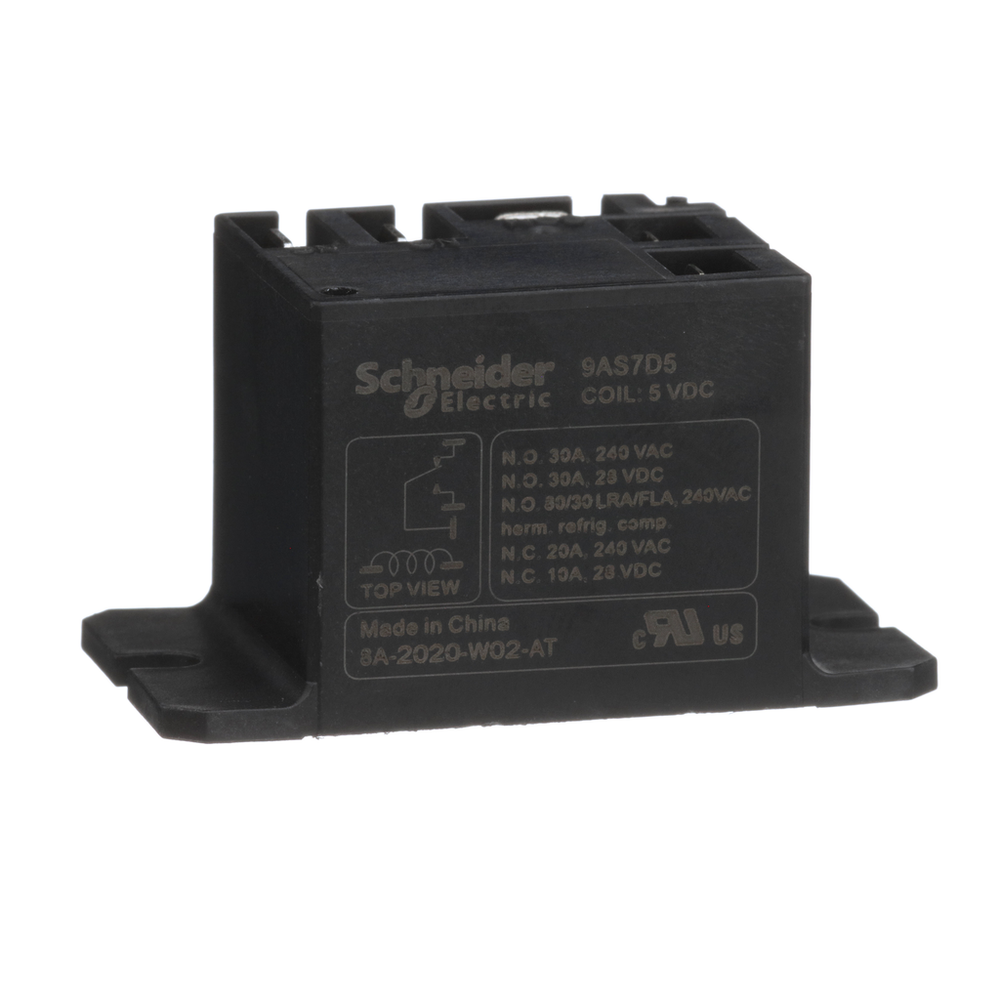

Schneider Electric 9AS7D5

Complementary

• Average Coil Consumption
  • 0.9 W
• Average Resistance
  • 27 Ohm at 23 °C +/- 10 %
• Connections - Terminals
  • Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm || Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm
• Control Circuit Voltage Limits
  • 0.8...1.1 Uc
• Dielectric Strength
  • 2500 V AC between coil and contact || 1500 V between contacts with micro disconnection
• Drop-Out Voltage Threshold
  • >= 0.1 Uc
• Electrical Durability
  • 100000 cycles, 30 A at 240 V, AC-1 NO || 50000 cycles for resistive load, 30 A at 28 V, DC NO || 30000 cycles for full load, 22 A at 120 V, AC-8a NO || 30000 cycles for full load, 30 A at 240 V, AC-8a NO || 1000 cycles for motor load NO || 6000 cycles for ballast load, 10 A at 277 V, AC-5a NO || 100000 cycles, 20 A at 240 V, AC-1 NC || 100000 cycles for resistive load, 10 A at 28 V, DC NC || 30000 cycles for full load, 12 A at 240 V, AC-8a NC || 30000 cycles for full load, 10 A at 277 V, AC-8a NC || 1000 cycles for motor load NC || 6000 cycles for ballast load, 3 A at 277 V, AC-5a NC
• [Ie] Rated Operational Current
  • 30 A at 240 V AC-1 (NO) || 20 A at 240 V AC-1 (NC) || 30 A at 28 V DC (NO) (on resistive load) || 10 A at 28 V DC (NC) (on resistive load) || 22 A at 120 V AC-8a (NO) (full load) || 98 A at 120 V AC-8a (NO) (locked rotor) || 30 A at 240 V AC-8a (NO) (full load) || 80 A at 240 V AC-8a (NO) (locked rotor) || 12 A at 240 V AC-8a (NC) (full load) || 30 A at 240 V AC-8a (NC) (locked rotor) || 10 A at 277 V AC-8a (NC) (full load) || 33 A at 277 V AC-8a (NC) (locked rotor) || 10 A at 277 V AC-5a (NO) (ballast) || 3 A at 277 V AC-5a (NC) (ballast)
• Input Current
  • 30 A NO || 20 A NC
• Mechanical Durability
  • 10000000 cycles
• Minimum Switching Capacity
  • 5 W at 1 A, 5 V DC || 12 VA at 1 A, 12 V AC
• Mounting Support
  • panel flange
• Net Weight
  • 0.032 kg
• Network Frequency
  • 50-60 Hz
• Operating Position
  • any position
• Operating Time
  • 20 ms
• Protection Category
  • RT III
• Rated Power In Hp
  • 1 hp at 125 V AC, NO || 2 hp at 250 V AC, NO || 0.25 hp at 125 V AC, NC || 0.5 hp at 250 V AC, NC
• Rated Power In Va
  • 470 VA at 240 V, NO on pilot duty || 275 VA at 240 V, NC on pilot duty
• Reset Time
  • 10 ms
• [Uimp] Rated Impulse Withstand Voltage
  • 4 kV 1.2/50 µs
• [Ui] Rated Insulation Voltage
  • 320 V

Environment

• Ambient Air Temperature For Operation
  • -40-40 °C
• Ambient Air Temperature For Storage
  • -40-85 °C
• Depth
  • 27.8 mm
• Height
  • 50 mm
• Pollution Degree
  • 3
• Product Certifications
  • UL
• Shock Resistance
  • 10 gn operating || 100 gn not operating
• Standards
  • UL 60947-4-1
• Vibration Resistance
  • +/- 0.75 mm 10-55 Hz operating || +/- 0.75 mm 10-55 Hz not operating
• Width
  • 27.3 mm

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI2006003EN
• Environmental Disclosure
  • ENVPEP2006003EN
• Eu Rohs Directive
  • Compliant
• Lead Free
  • Yes
• Mercury Free
  • Yes
• Phenolic Free Solution
  • Yes
• Pvc Free
  • Yes
• Reach Free Of Svhc
  • Yes
• Reach Regulation
  • Free of Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Silicon Free
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Toxic Heavy Metal Free
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Contacts Material
  • silver alloy contacts
• Maximum Switching Voltage
  • 277 V AC || 28 V DC
• Product Or Component Type
  • power relay
• Range Of Product
  • Harmony
• Switch Function
  • SPDT
• [Uc] Control Circuit Voltage
  • 5 V DC
