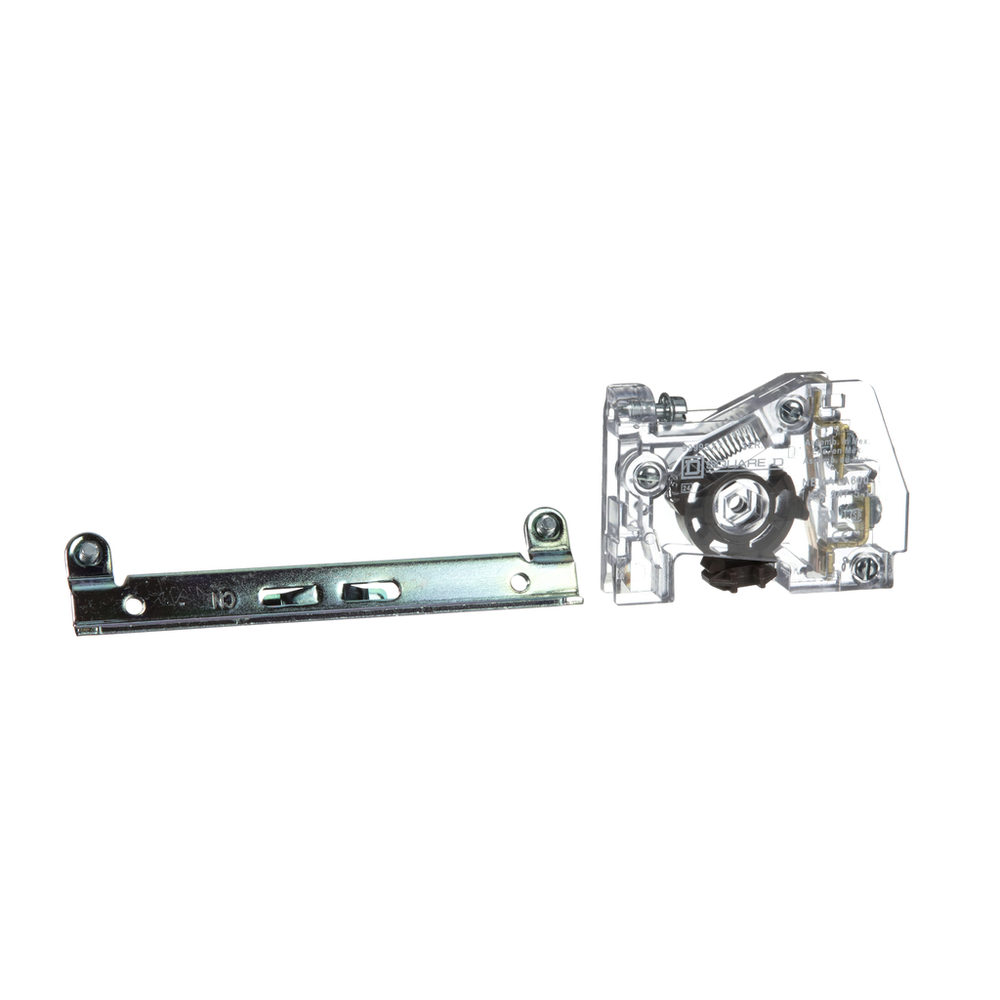

Schneider Electric 9999SX8
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This external convertible contact is mounted on the side of a contactor or starter. It is often used as part of the electrical control circuit. This auxiliary contact has one normally open and one normally closed isolated contacts. Auxiliary contact module has a NEMA A600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 6.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.NEMA Motor Starter and contactor, Type S, auxiliary contact, 1 NO/1 NC isolated contact, external, field convertible
Schneider Electric 9999SX8 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Depth
- 4.5 in
- Height
- 1.5 in
- Nema Size
- 3 || 4 || 00 || 1 || 6 || 2 || 5 || 7 || 0
- Net Weight
- 0.14 kg
- Rated Breaking Capacity
- 6 A 120 V AC inductive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508
- [Ue] Rated Operational Voltage
- <= 600 V AC 50/60 Hz
- Width
- 3 in
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- CSA || UL Recognized || UL Listed
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Specifications
- Product Destination
- contactor || starter
- Product Or Component Type
- Auxiliary Contact Module
- Range Of Product
- type S
