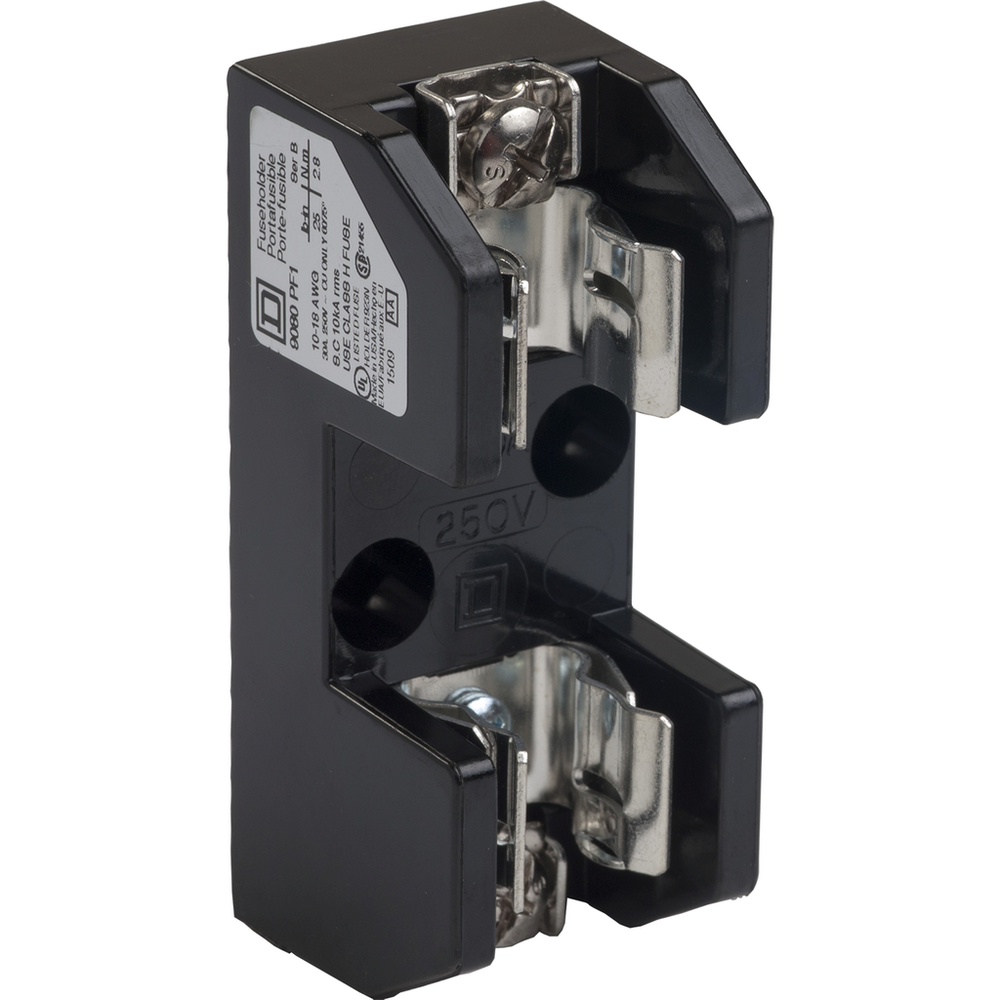

Schneider Electric 9080PF1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 amperes. This one pole fuse holder will accept class H and class k fuses. The rating of the fuse can be up to 30 amperes with a 250 V maximum rating. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 10,000 ampere. This fuse holder is UL listed and CSA certified.Terminal block, Linergy, fuse holder, Class H or K, 30A, 250 V, 1 pole
Schneider Electric 9080PF1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -40-257 °F
- Awg Gauge
- AWG 18...AWG 10 copper or aluminium
- Connections - Terminals
- screw terminals 25 lbf.in AWG 14...AWG 10 copper
- Depth
- 1.38 in
- Electrical Connection
- pressure wire clamp
- Fuse Size
- 0.5625 x 2 in
- Fuse Type
- H and K
- Height
- 3 in
- [Ics] Rated Service Breaking Capacity
- 10 kA UL 512
- Line Rated Current
- 30 A
- Material
- thermoplastic block
- Mounting Support
- surface mount
- Number Of Poles
- 1
- Product Certifications
- CE || UL listed file E40747 CCN IZLT || CSA file 70360 class 6225 01
- [Ue] Rated Operational Voltage
- <= 250 V AC/DC
- Width
- 1.12 in
- Wire Stripping Length
- 0.4375 in
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
Specifications
- Product Or Component Type
- fuse holder
- Range Of Product
- 9080FB
