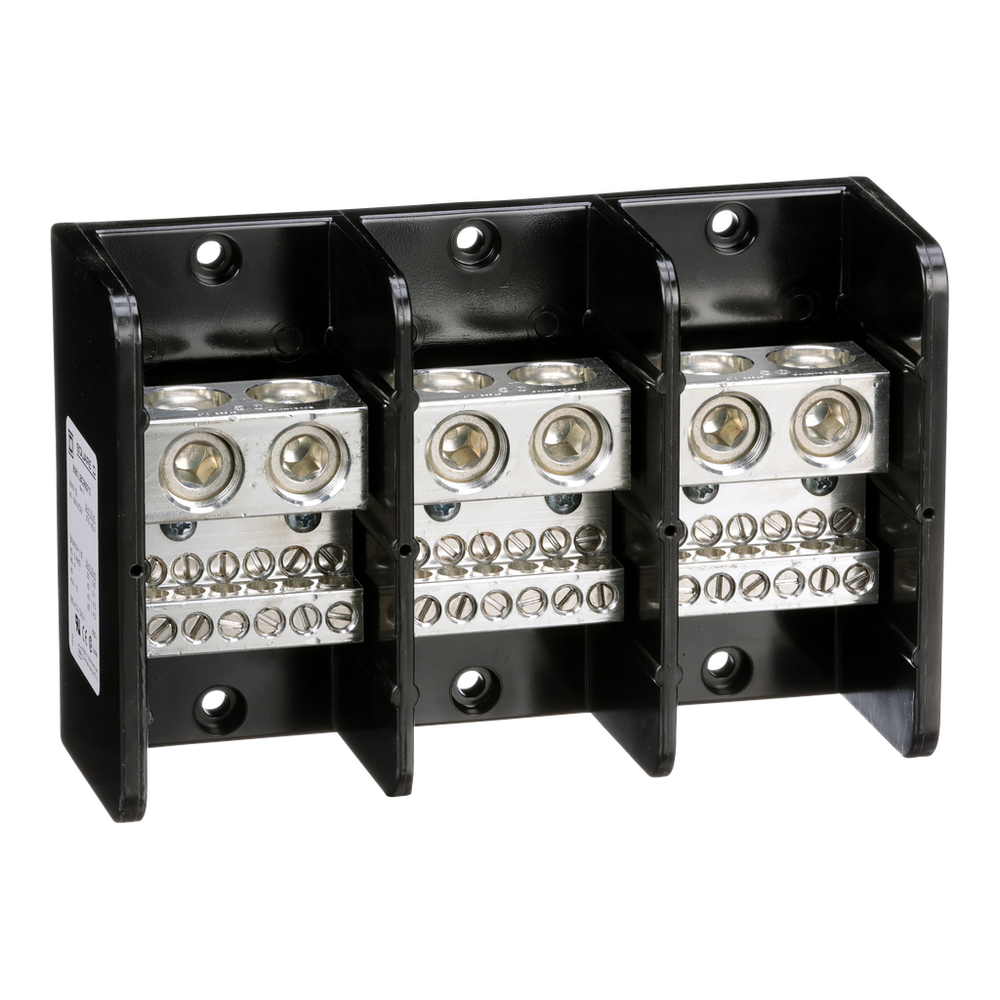

Schneider Electric 9080LBC365212
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and twelve lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 500 kcmil copper wire. The load side lug is rated to accept one #14 to 2 copper wire. The lugs are made of copper. The lugs are rated for 760 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.Power distribution block, Linergy, 3 pole, 2 line, 12 load,760A CU, 600 V
Schneider Electric 9080LBC365212 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -40-302 °F
- Connections - Terminals
- load lug 40 lbf.in AWG 8 copper || load lug 35 lbf.in AWG 14...AWG 10 copper || line lug 375 lbf.in AWG 4...500 kcmil copper || load lug 50 lbf.in AWG 2 copper || load lug 45 lbf.in AWG 6...AWG 4 copper
- Depth
- 3.13 in
- Electrical Connection
- tin plated copper lugs
- Height
- 5.5 in
- [Ics] Rated Service Breaking Capacity
- 100 kA UL 508 A
- Material
- phenolic block
- Mounting Support
- surface mount
- Number Of Cables
- line 2 , AWG 4...500 kcmil, copper || load 12 , AWG 14...AWG 2, copper
- Number Of Poles
- 3
- Number Of Terminals
- 12 line || 3 load
- Product Compatibility
- 9080LB53
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Width
- 3.17 in
- Wire Stripping Length
- load: 1 in for bottom connection || line: 1.63 in || load: 0.63 in for top connection
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- UL recognized E60616 CCN XCFR2 || CE || CSA file 70361 class 6228 01
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Line Rated Current
- 760-760 A copper
- Product Or Component Type
- Power Distribution Block
- Range Of Product
- 9080LB
