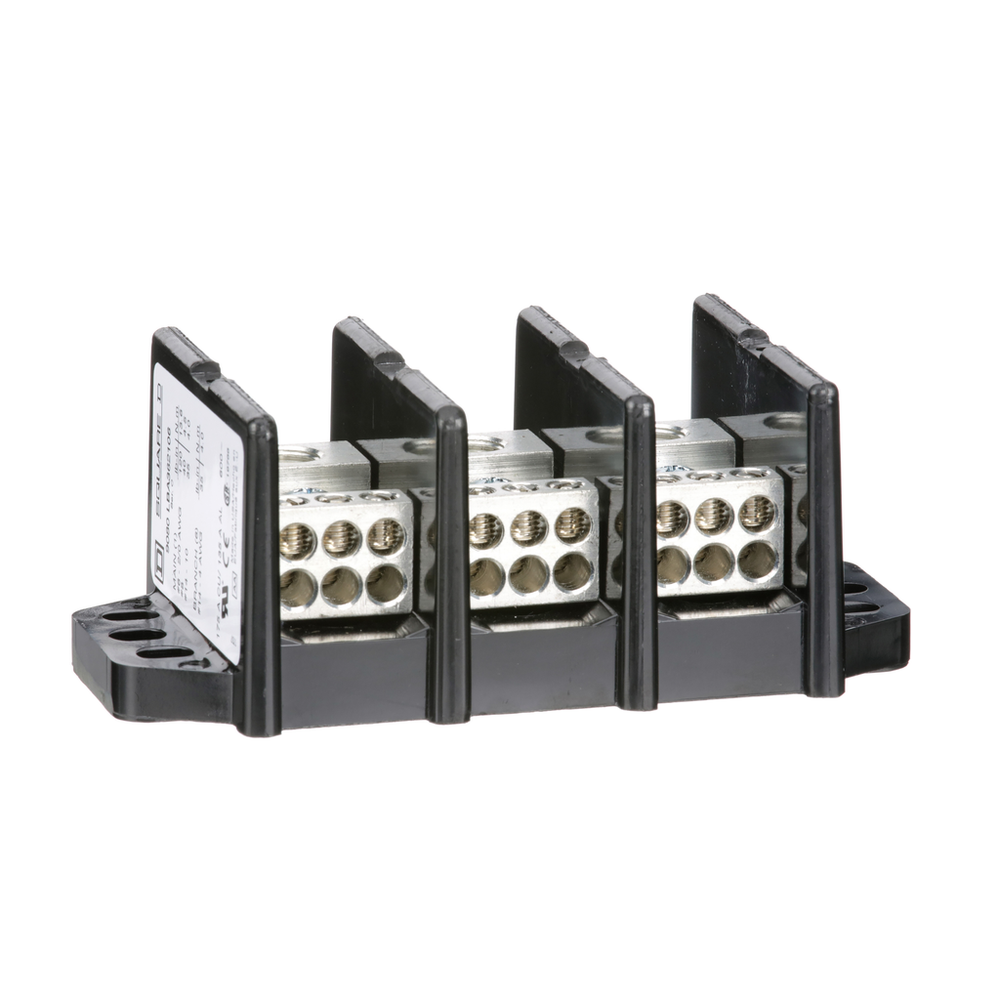

Schneider Electric 9080LBA362106
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one #14 to 2/0 copper or aluminum wires. Each load side lug is rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.Power distribution block, Linergy, 3 pole, 1 line, 6 load, 175A CU, 135A AL, 600 V
Schneider Electric 9080LBA362106 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -40-302 °F
- Connections - Terminals
- line lug 40 lbf.in AWG 8 copper or aluminium || line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium || line lug 35 lbf.in AWG 14...AWG 10 copper or aluminium || load lug 35 lbf.in AWG 14...AWG 4 copper or aluminium
- Depth
- 2.06 in
- Electrical Connection
- tin plated aluminium lugs
- Height
- 2.9 in
- [Ics] Rated Service Breaking Capacity
- 100 kA UL 508 A
- Material
- phenolic block
- Mounting Support
- surface mount
- Net Weight
- .35 kg
- Number Of Cables
- line 2 , AWG 14...AWG 2/0, copper or aluminium || load 6 , AWG 14...AWG 4, copper or aluminium
- Number Of Poles
- 3
- Number Of Terminals
- 1 line || 6 load
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Width
- 5.38 in
- Wire Stripping Length
- load: 0.38 in for top connection || load: 0.75 in for bottom connection || line: 0.69 in
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- UL recognized E60616 CCN XCFR2 || CSA file 70361 class 6228 01 || CE
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Line Rated Current
- 175-175 A copper || 135-135 A aluminium
- Product Or Component Type
- Power Distribution Block
- Range Of Product
- 9080LB
- Short-Circuit Current
- 65 kA
