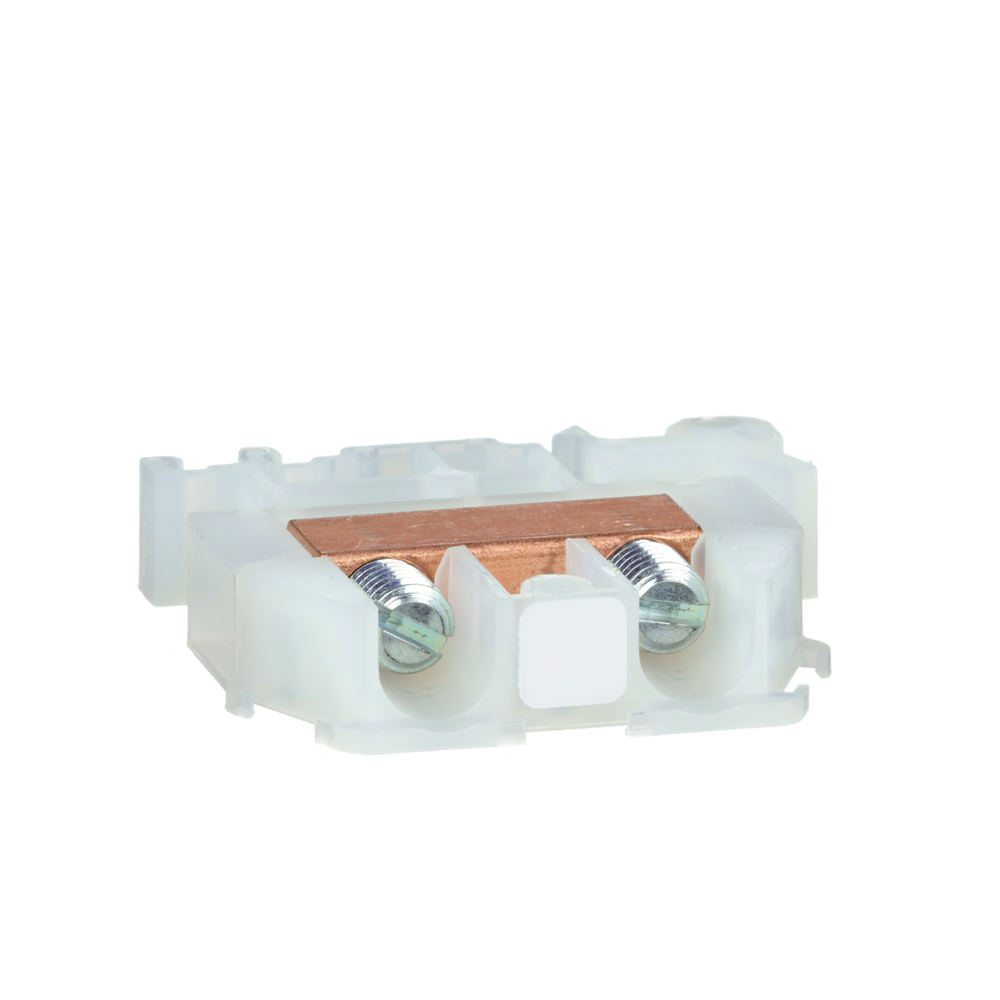

Schneider Electric 9080GR6
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #8 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 #8 AWG, 1 # 10 AWG, 1 or 3 #12 AWG, 1 or 4 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.Terminal block, Linergy, box lug connector, natural colored block, 60A, 600 V
Schneider Electric 9080GR6 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -40-257 °F
- Awg Gauge
- AWG 22...AWG 8 copper
- Connections - Terminals
- lug copper 18-20 lbf.in : AWG 22...AWG 8 copper)
- Depth
- 0.35 in
- Electrical Connection
- copper box lugs
- Height
- 1.82 in
- Line Rated Current
- 60-60 A UL || 60-60 A CSA
- Mounting Support
- 35 mm DIN rail || 9080GH track
- Net Weight
- 0.01 kg
- Number Of Terminal Blocks
- 34 per foot
- Product Certifications
- UL recognized E60616 CCN XCFR2 || CE || CSA file 62144 class 6228 01
- Product Compatibility
- GM6B
- Protection Type
- fingersafe DIN 57470
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Width
- 1.72 in
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Color
- natural
- Localisation On Device
- standard
- Product Or Component Type
- terminal block
- Quantity Per Set
- set of 50
- Range Of Product
- 9080G
