Description

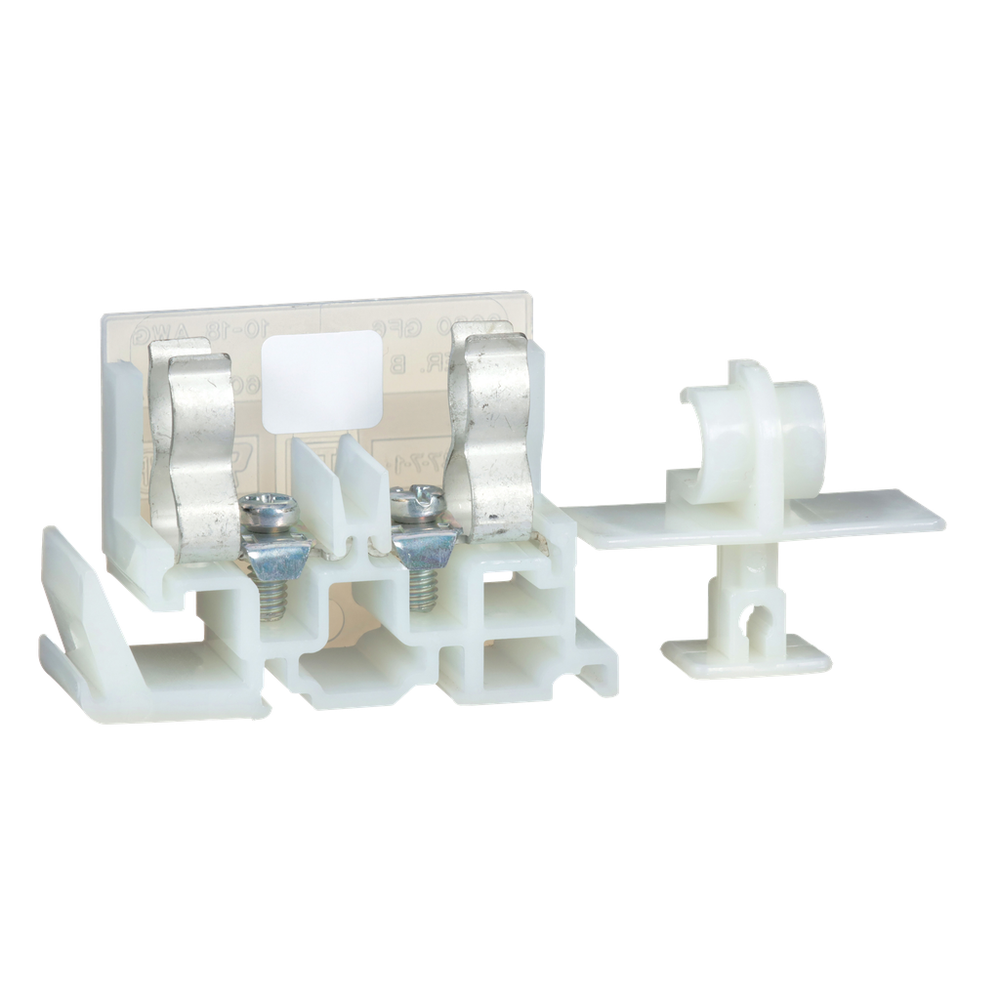

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This sectional fuse holder will accept class H fuses that have a 13/32 inch diameter and are 1.5 inches long. This sectional fuse holder has a pressure wire connector for use with solid or stranded copper wires from #18 AWG through #10 AWG. Each terminal is approved for use with various wire combinations. Each terminal accepts 1 # 10 AWG, 1 #12 AWG, 1 #14 AWG, 1 to 4 #16 AWG or 1 to 4 #18 AWG wires. The nylon block is molded in the natural color of nylon (off white). A 9080GH63 fuse puller is supplied with each fuse holder. This block is UL component recognized and CSA certified for up to 30 Amp and are rated at up to 600 VAC or VDC.Terminal block, Linergy, sectional fuse holder, natural colored block, 30A, 600 V
Schneider Electric 9080GF6 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -40-221 °F
- Awg Gauge
- AWG 18...AWG 10 copper
- Connections - Terminals
- clamp terminal zinc plated steel 18-20 lbf.in : AWG 18...AWG 10 copper)
- Depth
- 0.75 in
- Electrical Connection
- pressure wire clamp
- Height
- 2.33 in
- Line Rated Current
- 30-30 A UL || 30-30 A CSA
- Mounting Support
- 35 mm DIN rail || 9080GH track
- Number Of Terminal Blocks
- 16 per foot
- Product Certifications
- CSA file 62144 class 6228 01 || CE || UL recognized E60616 CCN XCFR2
- Product Compatibility
- GF6B
- Protection Type
- fingersafe DIN 57470
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Width
- 2.19 in
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Color
- natural
- Localisation On Device
- fusible
- Product Or Component Type
- terminal block
- Quantity Per Set
- set of 10
- Range Of Product
- 9080G
