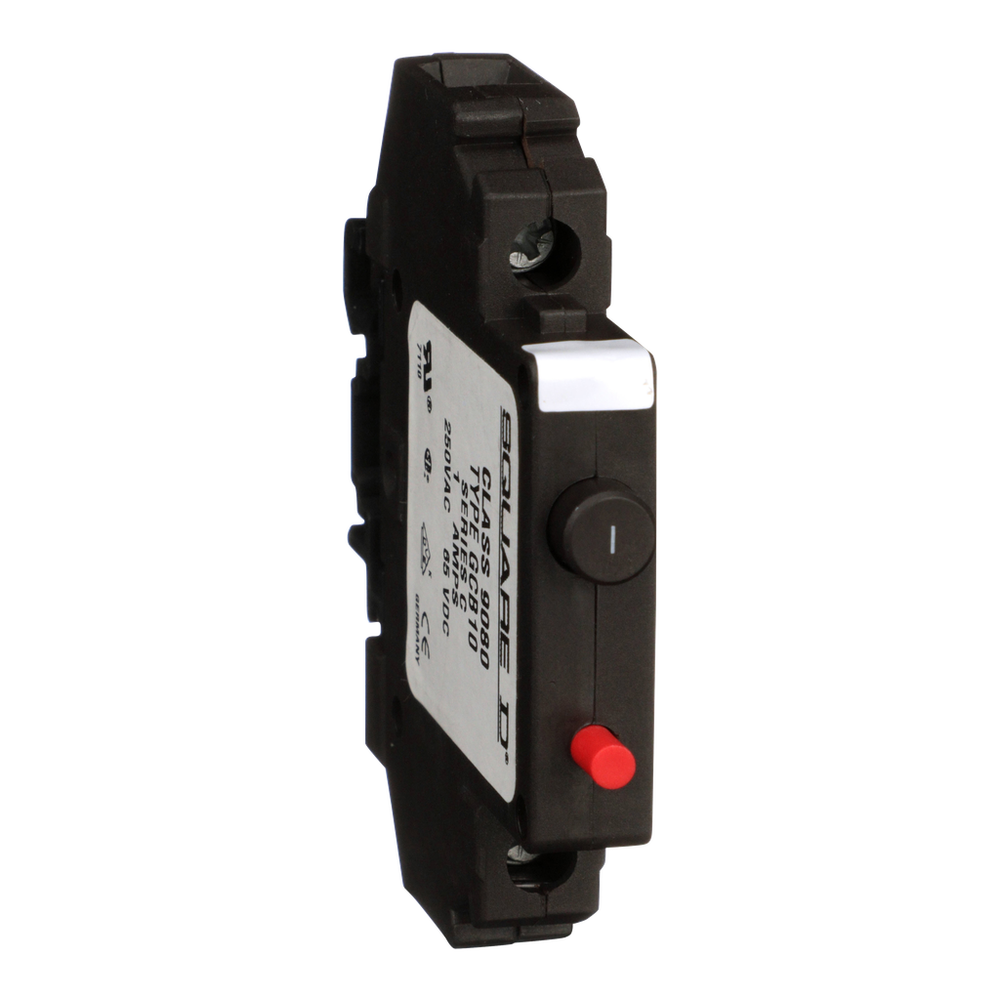

Schneider Electric 9080GCB10
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 1.0 ampere. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 1.0A, 250 VAC / 65 VDC
Schneider Electric 9080GCB10 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -22-140 °F
- Awg Gauge
- AWG 16...AWG 10 copper
- Contact Operation
- trip-free
- Depth
- 0.5 in
- Device Application
- Industrial Application
- Height
- 3.45 in
- Line Rated Current
- 1 A
- Mounting Support
- 9080GH track || 35 mm DIN rail
- Poles Description
- 1P
- Protection Type
- overcurrent
- Temperature For Tripping
- 70 °F
- Tightening Torque
- control circuit 7-7 lbf.in cage type connector
- [Ue] Rated Operational Voltage
- 250 V AC || 65 V DC
- Width
- 3.15 in
- Wire Stripping Length
- 0.5 in
- Wiring Device Additional Information
- factory wiring only
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- CSA file 025490 class 3211 07 || UL recognized E233026 CCN QVNU2 || CE
- Standards
- CSA C22.2 No 235 || DIN 57470 || UL 1077
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Electrical Connection
- box lugs
- Product Or Component Type
- Circuit Protector
- Range Of Product
- 9080GCB
- Trip Unit Technology
- thermal-magnetic
