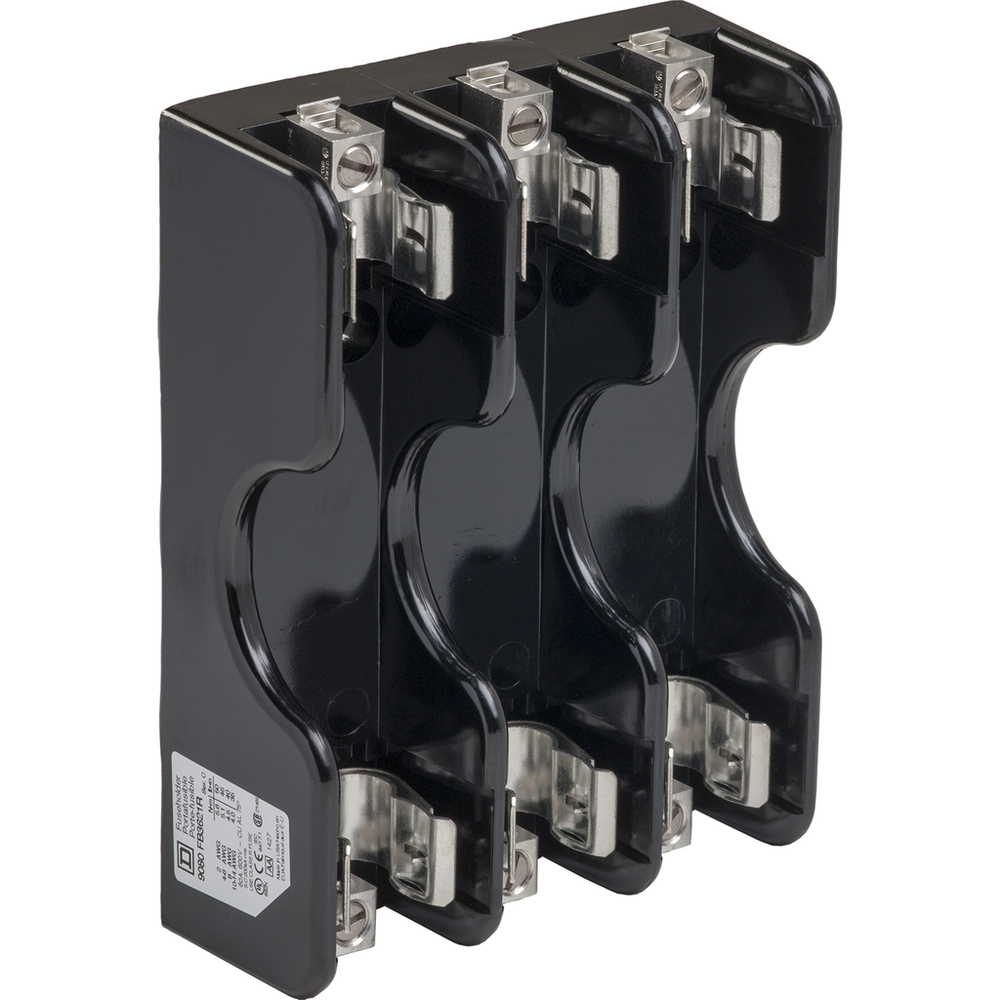

Schneider Electric 9080FB3621R
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This three pole fuse holder will accept class R fuses. The rating of the fuse can be up to 60 Amps with a 600 V maximum rating. The box lug connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are reinforced for a better connection. The fuse holder base is made of general purpose phenolic. AIC Rating in accordance with UL512 is 200,000 Amp. This fuse holder is UL listed and CSA certified. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.Terminal block, Linergy, fuse holder, Class R, 60A, 600 V, 3 pole
Schneider Electric 9080FB3621R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -40-302 °F
- Awg Gauge
- AWG 14...AWG 2 copper or aluminium
- Connections - Terminals
- lugs 50 lbf.in AWG 3...AWG 2 copper or aluminium || lugs 45 lbf.in AWG 6...AWG 4 copper or aluminium || lugs 40 lbf.in AWG 8 copper or aluminium || lugs 35 lbf.in AWG 12...AWG10 copper or aluminium || lugs 35 lbf.in AWG 14 copper
- Depth
- 2.12 in
- Electrical Connection
- box lugs
- Fuse Size
- 1.0625 x 5.5 in
- Fuse Type
- R
- Height
- 6.75 in
- [Ics] Rated Service Breaking Capacity
- 200 kA UL 512
- Line Rated Current
- 60 A
- Material
- phenolic block
- Mounting Support
- surface mount
- Number Of Poles
- 3
- Product Certifications
- UL listed file E40747 CCN IZLT || CE || CSA file 70360 class 6225 01
- [Ue] Rated Operational Voltage
- <= 600 V AC/DC
- Width
- 5.08 in
- Wire Stripping Length
- 0.5625 in
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Product Or Component Type
- fuse holder
- Range Of Product
- 9080FB
