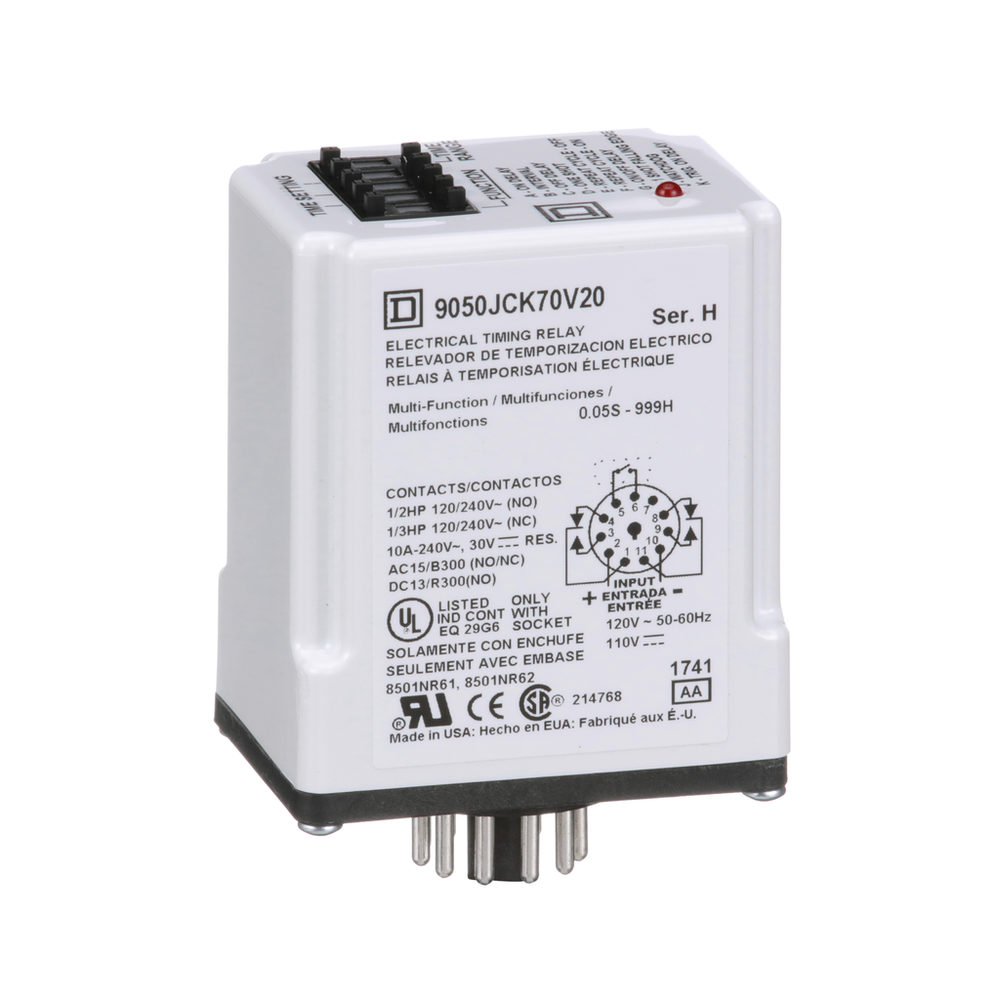

Schneider Electric 9050JCK70V20
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer can be programed to have an on delay, off delay, interval, one shot, repeat cycle off, repeat cycle on, on/off delay, one shot falling edge, watchdog or trigger on delay timing mode. The timing range of 0.5 seconds to 999 hours is easily adjustable with thumb wheels on the top of the timer. This plug in timer plugs into an 8501NR61 or 8501NR62 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 120 VAC / 110 VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.Timing Relay, Type JCK, plug In, multifunction, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 120 VAC/110 VDC
Schneider Electric 9050JCK70V20 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Contacts Material
- silver nickel
- Contacts Type And Composition
- 2 NO + 2 NC
- Hold-In Power Consumption In Va
- 3-3 VA
- Line Rated Current
- 10 A
- Maximum Switching Voltage
- 240 V AC
- Mounting Support
- socket
- Pin Number
- 11
- Product Compatibility
- 8501NR61 || 8501NR62
- Shape Of Pin
- tubular
- Switch Function
- DPDT
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -18-150 °F
- Depth
- 91 mm
- Height
- 60 mm
- Product Certifications
- CE || UL Recognized || UL Listed
- Width
- 44 mm
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1406037EN
- Environmental Disclosure
- ENVPEP1406037EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Product Or Component Type
- timer
- Range Of Product
- 9050JCK
- Time Delay Range
- 1...999 h || 0.05...9.99 s || 1...999 s || 0.1...99.9 s || 0.1...99.9 h || 1...999 min
- Time Delay Type
- one shot falling edge || repeat cycle || trigger on-delay || interval || off-delay || watchdog || one shot || on-delay || on-delay and off-delay
- [Uc] Control Circuit Voltage
- 120 V AC
