Schneider Electric 9001SKY201
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

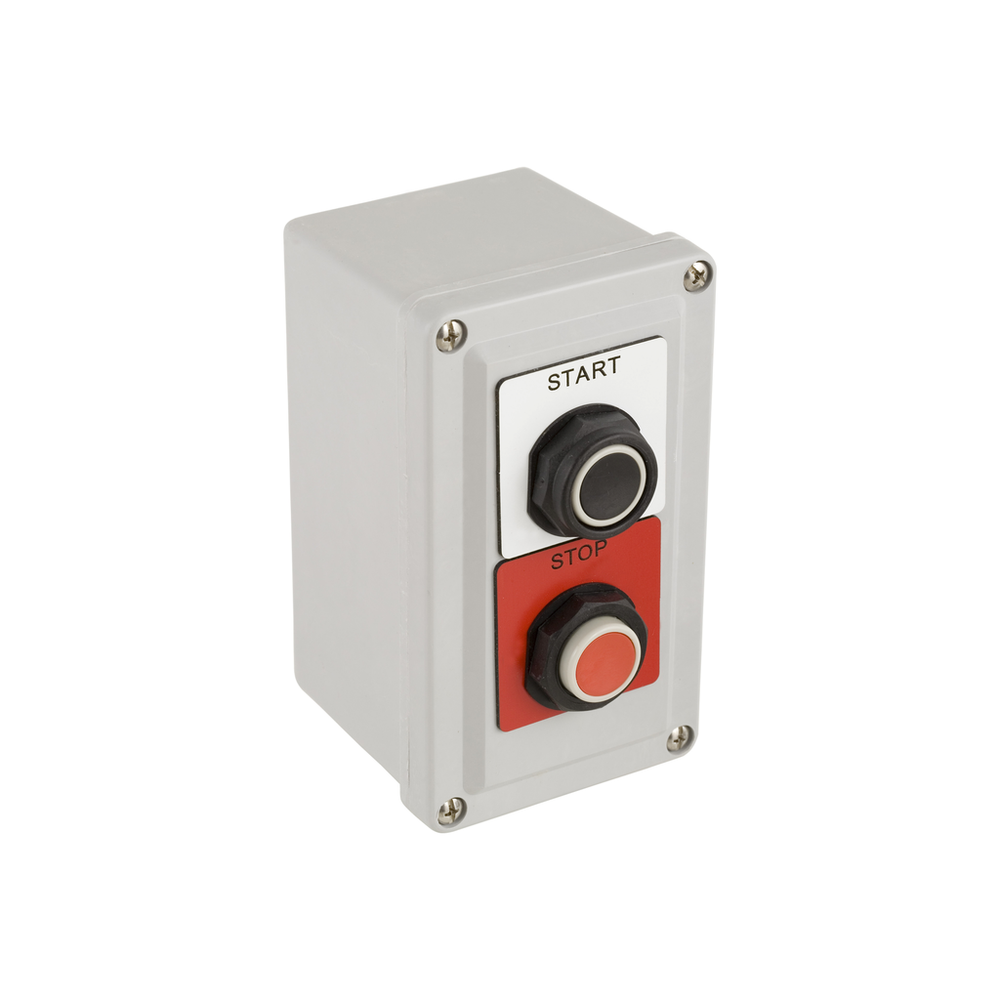

The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This assembled control station has polymeric (plastic) enclosure (9001SKY2) with two push button operators. Control station has a black full guard momentary push button (9001SKR1B) in the top hole. The push button has a contact block with 1 normally open and 1 normally closed contact (9001KA1). The operator has a legend plate that is marked START (9001SKN101WP). Control station has a red no guard momentary push button (9001SKR3R) in the bottom hole. The push button has a contact block with 1 normally closed contact (9001KA3). The operator has a red legend plate that is marked STOP (9001SKN102RP). The enclosure has one 0.75 inch conduit hub with 14 NPT thread. Enclosure is 7.65 inches tall, 3.82 inches wide and 4.53 inches deep. This enclosure is rated for NEMA 1, 3, 4, 4X 6, 12 and 13 environments. The control station is UL Listed and CSA certified. "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."30mm push button, Type SK, control station, START and STOP, 6A inductive at 120VAC, NEMA 4, 4X
Schneider Electric 9001SKY201 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connector Type
- screw clamp connector
- Control Station Composition
- 2 push-buttons 1 NO + 2 NC
- Enclosure/Cubicle Description
- wall-mounted enclosure 2 cut-outs
- Enclosure Material
- polymeric
- [Ie] Rated Operational Current Ac
- 10 A
- Type Of Installation
- indoor/outdoor
- [Ue] Rated Operational Voltage
- 600 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Characteristic
- dust and oil resistant || resistant against immersion in water
- Nema Degree Of Protection
- NEMA 13 || NEMA 3 || NEMA 4 || NEMA 1
- Product Certifications
- CSA LR25490 class 3211 03 || UL listed file E42259 CCN NKCR || CE
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP121030EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Contact Block Name
- KA3 || KA1
- Device Short Name
- 9001SK
- Product Or Component Type
- control station
- Provided Equipment
- label plate START-STOP
- Range Of Product
- Harmony 9001KY
