Schneider Electric 9001SKR9RH6
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

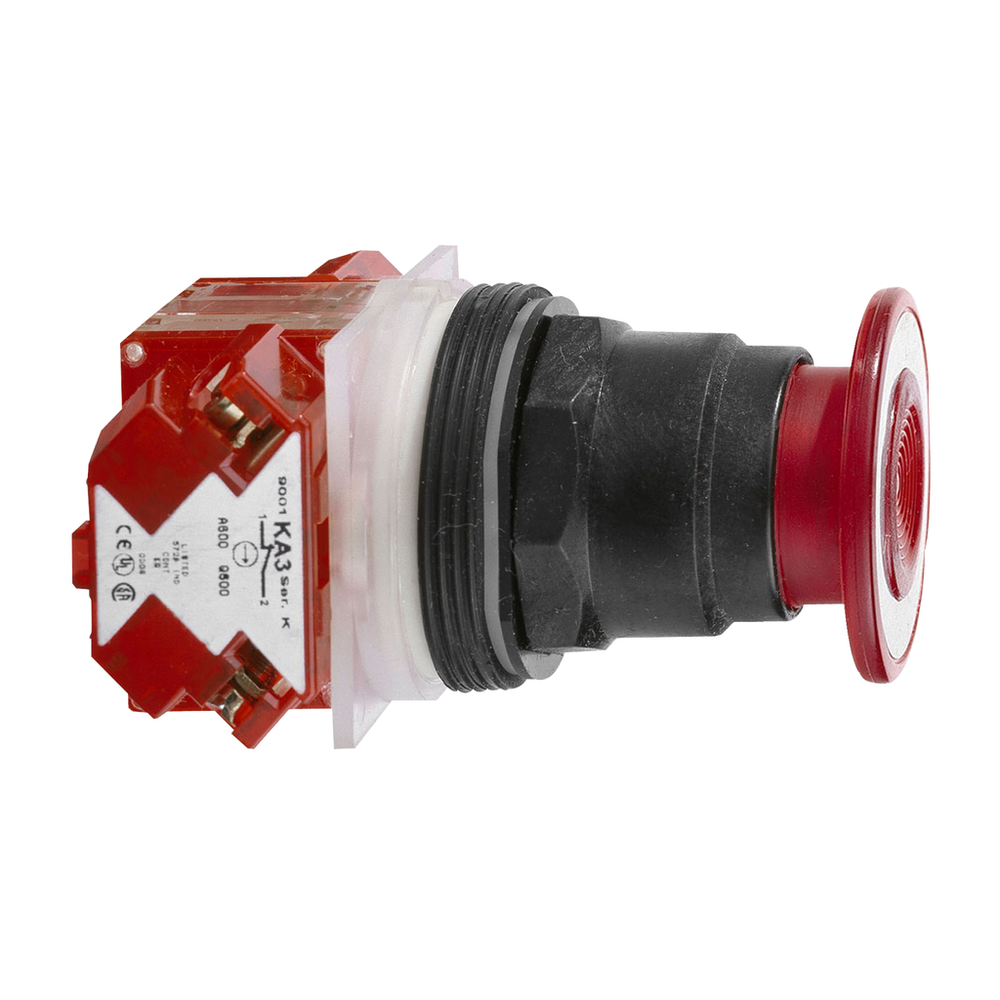

This Schneider Electric Harmony 9001SK modular red push-button has 2 positions and operates with a stay-put mechanism. It has a round shape and is supplied with contact block, 40mm mushroom head and 1 x NC contact. It fits in a 30mm hole. It has a plastic bezel. This 40mm mushroom shaped push-button heads ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomic. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Plastic bezel. Ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13). Highly ergonomic mushroom push-button shape, ideal for use in area where operator wear thick gloves or where users have impaired movements.Push button, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull, 1NC
Schneider Electric 9001SKR9RH6 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Bezel Material
- plastic
- Cad Overall Depth
- 69 mm
- Cad Overall Height
- 45 mm
- Cad Overall Width
- 46 mm
- Cap/Operator Or Lens Colour
- red
- Compatibility Code
- 9001SK
- Connections - Terminals
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Contacts Material
- silver alloy contacts
- Contacts Type And Composition
- 1 NC
- Device Presentation
- complete product
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Mechanical Durability
- 5000000 cycles
- Mounting Diameter
- 30 mm
- Net Weight
- 0.159 kg
- Operating Position
- any position
- Operator Position Information
- 2 positions
- Operator Profile
- mushroom Ø 41 mm
- Positive Opening
- with IEC 60947-5-2
- Rated Breaking Capacity
- 3 kA 120 V AC-15, 720 VA || 6 kA 600 V AC-15, 720 VA || 1.2 kA 480 V AC-15, 720 VA || 1.5 kA 240 V AC-15, 720 VA || 0.1 kA 125 V DC-13 || 0.27 kA 600 V DC-13 || 0.55 kA 250 V DC-13
- Shape Of Screw Head
- cross slotted
- Shape Of Signaling Unit Head
- round
- Short-Circuit Protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- Size
- 30 mm
- Tightening Torque
- 0.8-0.8 N.m EN/IEC 60947-1
- Type Of Operator
- push-pull
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV EN/IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 3)EN/IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Overvoltage Category
- class II IEC 61140
- Product Certifications
- UL 508 || NEMA
- Protective Treatment
- TC
- Shock Resistance
- 50 gn IEC 60068-2-27
- Standards
- EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP120816EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- 9001SK
- Operator Additional Information
- screw-on plastic
- Operator Profile
- red mushroom Ø 41 mm, unmarked
- Product Or Component Type
- push-button
- Range Of Product
- Harmony 9001SK
- Type Of Operator
- push-pull
