Schneider Electric 9001SKR9P1RH13
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

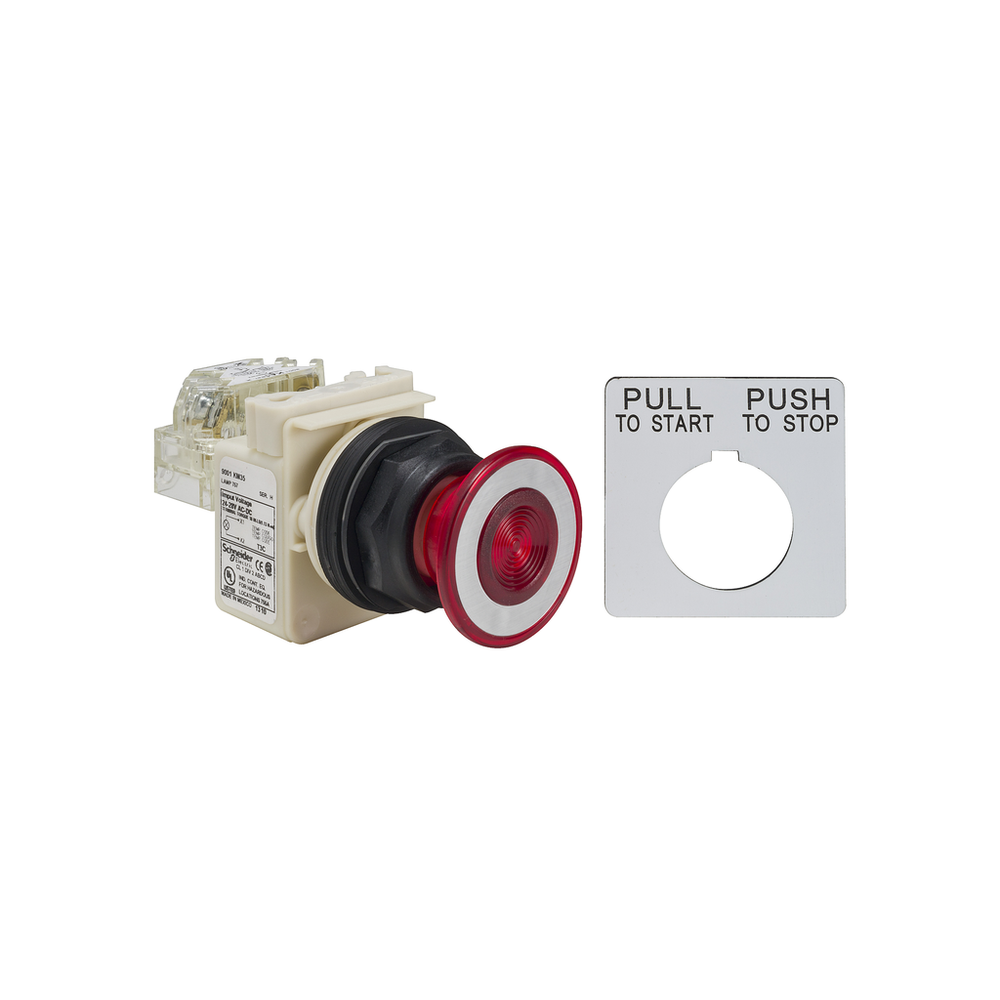

This Harmony 9001SK, modular illuminated red push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel and is supplied with 110V AC integral LED, it has 40mm mushroom head with 1 x NO + 1 x NC contacts. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.Illuminated push button, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull, 110...120V, 1 C/O
Schneider Electric 9001SKR9P1RH13 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Bezel Material
- plastic
- Bulb Base
- BA 9s
- Cap/Operator Or Lens Colour
- red
- Connections - Terminals
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Contacts Material
- silver alloy contacts
- Contacts Type And Composition
- 1 C/O
- Device Presentation
- complete product
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Light Block Supply
- via integral transformer
- Light Source
- incandescent bulb
- incandescent
- Mechanical Durability
- 5000000 cycles
- Mounting Diameter
- 30 mm
- Net Weight
- 0.226 kg
- Operating Position
- any position
- Operator Additional Information
- screw-on plastic
- Operator Position Information
- 2 positions
- Operator Profile
- mushroom Ø 41 mm
- Rated Breaking Capacity
- 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Shape Of Screw Head
- cross slotted
- Shape Of Signaling Unit Head
- round
- Short-Circuit Protection
- 10 A cartridge fuse IEC 60947-5-1
- Size
- 30 mm
- Supply Frequency
- 50...60 Hz
- Tightening Torque
- 0.8-0.8 N.m IEC 60947-1
- Type Of Operator
- push-pull
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- [Us] Rated Supply Voltage
- 110...120 V AC 50...60 Hz
- 110...120 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 60536
- Ip Degree Of Protection
- IP66 IEC 60529 || IP66 NF C 20-010
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Protective Treatment
- TC
- Shock Resistance
- 50 gn IEC 60068-2-27
- Standards
- UL 508 || EN/IEC 60947-5-1 || JIS C 4520 || CSA C22.2 No 14 || JIS C 852 || IEC 60947-1 || IEC 60947-5-4
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP120816EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- 9001SK
- Light Block Supply
- via integral transformer
- Operator Profile
- red mushroom Ø 41 mm
- Product Or Component Type
- illuminated push-button
- Range Of Product
- Harmony 9001SK
- Type Of Operator
- push-pull
