Description

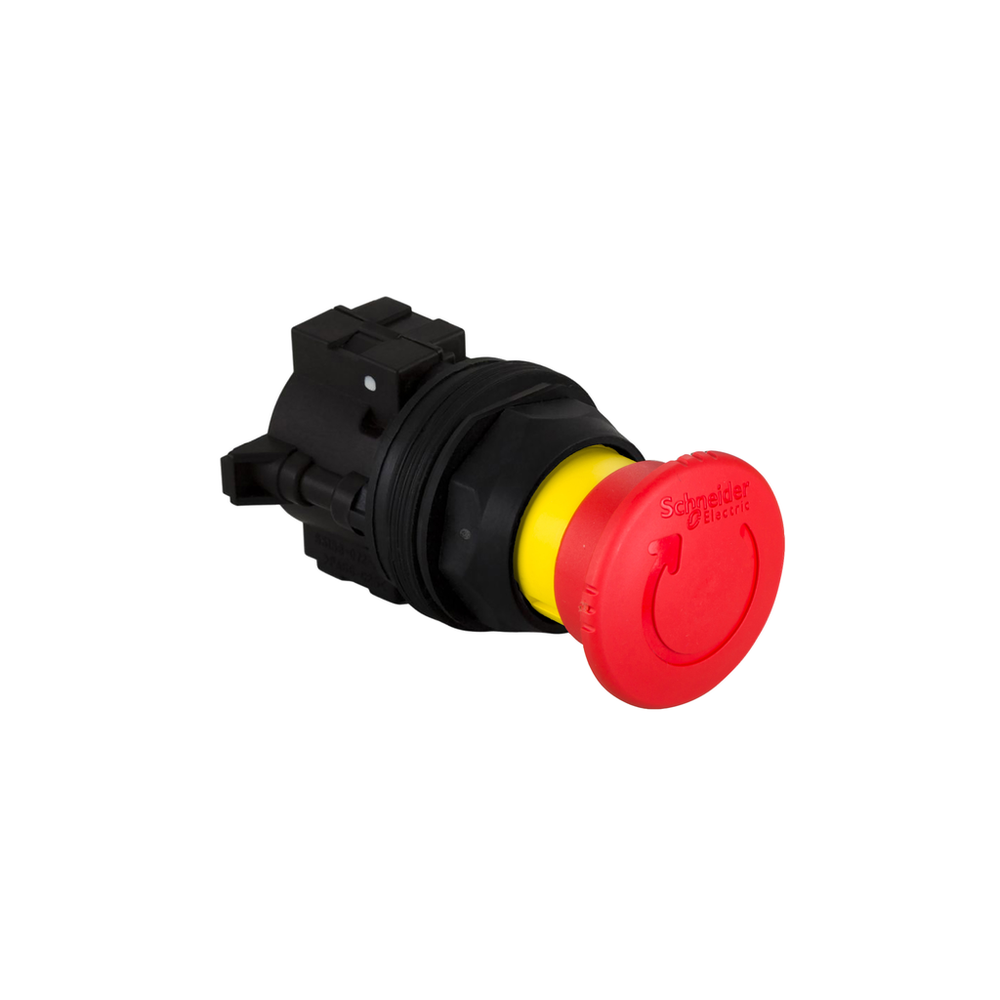

This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 30mm diameter cut-outs It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)Emergency stop head, Harmony 9001SK, switching off, plastic, red mushroom 40mm, 30 mm, trigger and latching turn to release
Schneider Electric 9001SKR16 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Bezel Material
- plastic
- Cad Overall Depth
- 90 mm
- Cad Overall Height
- 40 mm
- Cad Overall Width
- 40 mm
- Cap/Operator Or Lens Colour
- red
- Contacts Type And Composition
- without contact block
- Mechanical Durability
- 5000000 cycles
- Mounting Diameter
- 30 mm
- Net Weight
- 0.141 kg
- Operating Position
- any position
- Operator Position Information
- 2 positions
- Operator Profile
- mushroom Ø 40 mm
- red mushroom Ø 40 mm, CE
- Shape Of Signaling Unit Head
- round
- Size
- 30 mm
- Type Of Operator
- turn to release
- turn to release || trigger action || maintained
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
- Ip Degree Of Protection
- IP66 IEC 60529
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Product Certifications
- NEMA || UL listed file E78403 CCN NKCR || CSA LR25490 class 3211 03 || UL 508
- Protective Treatment
- TC
- Shock Resistance
- 50 gn IEC 60068-2-27
- Standards
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || JIS C 4520 || JIS C 852 || UL 60947-5-5
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP121016EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- 9001SK
- Product Or Component Type
- head for emergency switching off push-button
- Range Of Product
- Harmony 9001SK
