Schneider Electric 9001SKP35LLL31
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

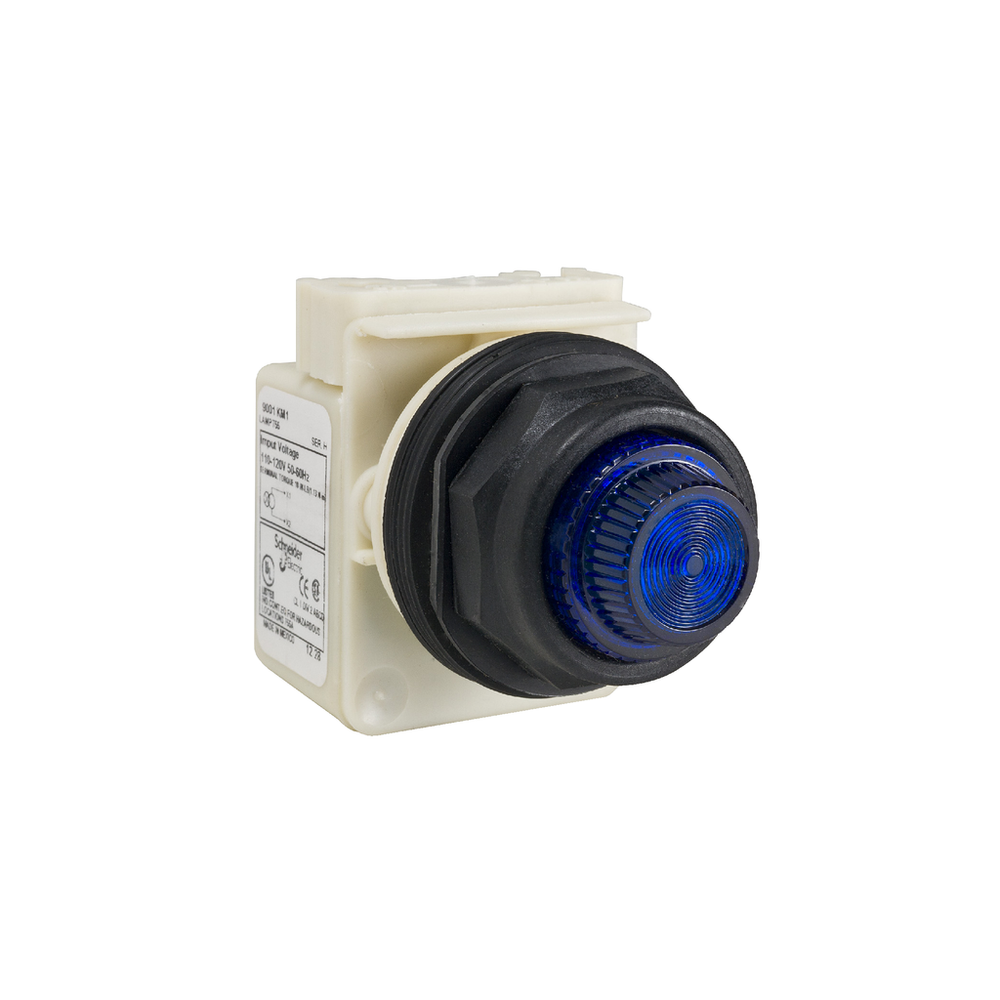

This Harmony 9001SK, blue pilot light with integral LED and plastic fresnel is supplied with 24V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.Pilot light, Harmony 9001SK, plastic, polycarbonate, fresnel, blue, 30mm, LED blue, 24-28V
Schneider Electric 9001SKP35LLL31 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Bezel Material
- plastic
- Bulb Base
- BA 9s
- Cad Overall Depth
- 42 mm
- Cad Overall Height
- 70 mm
- Cad Overall Width
- 54 mm
- Cap/Operator Or Lens Colour
- blue
- Connections - Terminals
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Device Presentation
- complete product
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Lens Material
- polycarbonate
- Lens Type
- fresnel
- Light Source
- Blue LED
- LED
- Light Source Colour
- blue
- Mounting Diameter
- 30 mm
- Net Weight
- 0.181 kg
- Operating Position
- any position
- Shape Of Screw Head
- cross slotted
- Shape Of Signaling Unit Head
- round
- Short-Circuit Protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- Size
- 30 mm
- Tightening Torque
- 0.8-0.8 N.m EN/IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV EN/IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 2)EN/IEC 60947-1
- [Us] Rated Supply Voltage
- 24...28 V AC/DC
- 24...28 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
- Ip Degree Of Protection
- IP66 IEC 60529
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Product Certifications
- UL 508 || NEMA
- Protective Treatment
- TC
- Shock Resistance
- 50 gn IEC 60068-2-27
- Standards
- EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || JIS C8201-1
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710019EN
- Environmental Disclosure
- ENVPEP1710019EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- 9001SK
- Lens Type
- fresnel plastic
- Light Block Supply
- direct 24...28 V AC/DC
- Product Or Component Type
- pilot light
- Range Of Product
- Harmony 9001SK
