Schneider Electric 9001SK1L35L
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

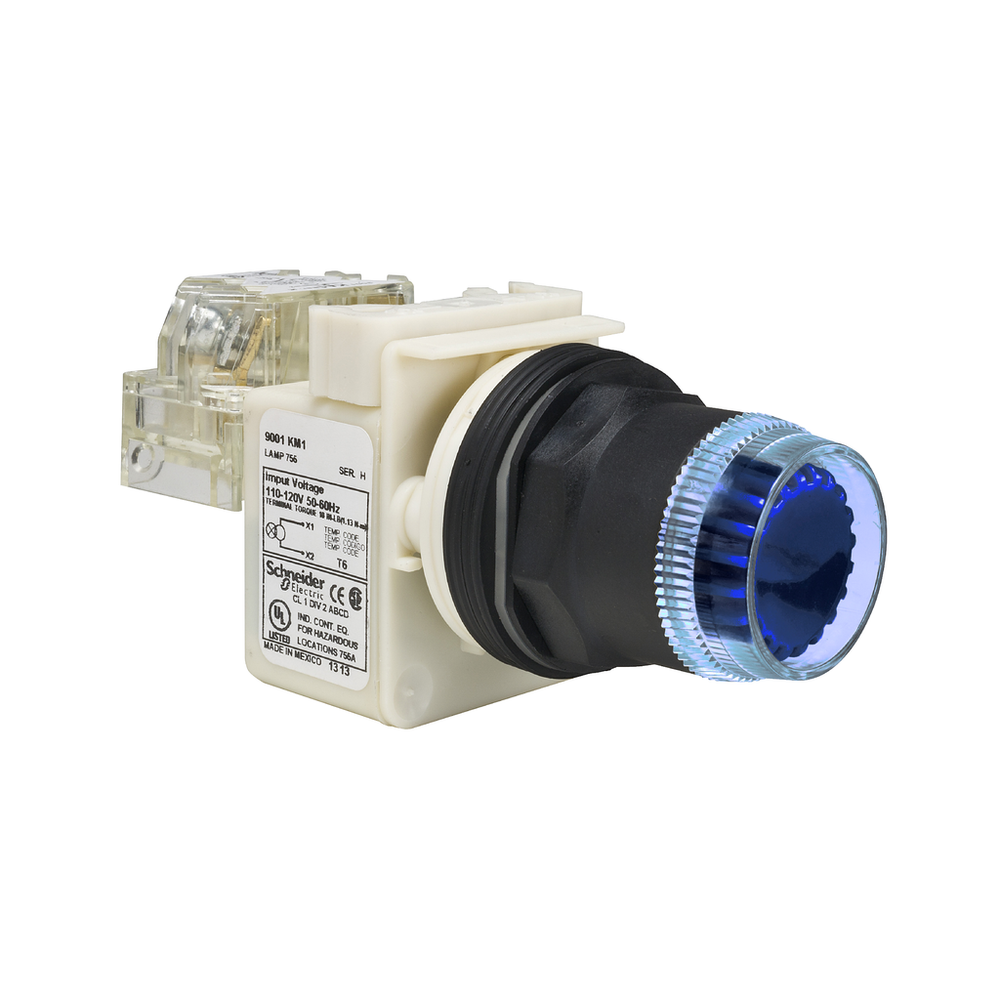

This Harmony 9001SK, modular illuminated flush blue push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 24V AC/DC integral LED. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.Illuminated push-button head, Harmony 9001SK, plastic, plastic guard flush, blue, 30mm, spring return, 24-28V
Schneider Electric 9001SK1L35L is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Bezel Material
- plastic
- Bulb Base
- BA 9s
- Cap/Operator Or Lens Colour
- blue
- Contacts Type And Composition
- without contact block
- Electrical Shock Protection Class
- class II IEC 61140
- Ip Degree Of Protection
- IP66 IEC 60529
- Light Block Supply
- full voltage
- direct 24...28 V AC/DC
- Light Source
- incandescent
- incandescent bulb
- Mechanical Durability
- 5000000 cycles
- Mounting Diameter
- 30 mm
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Net Weight
- 0.181 kg
- Operating Position
- any position
- Operator Additional Information
- plastic guard
- Operator Profile
- blue flush, unmarked
- flush
- Product Certifications
- UL 508 || NEMA || CSA LR25490 class 3211 03 || UL listed file E78403 CCN NKCR
- Protective Treatment
- TC
- Shape Of Signaling Unit Head
- octagonal
- Shock Resistance
- 50 gn IEC 60068-2-27
- Size
- 30 mm
- Standards
- UL 508 || JIS C 4520 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 852 || EN/IEC 60947-5-1 || CSA C22.2 No 14
- Type Of Operator
- spring return
- [Us] Rated Supply Voltage
- 24...28 V
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP121005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- 9001SK
- Product Or Component Type
- head for illuminated push-button
- Range Of Product
- Harmony 9001SK
