Description

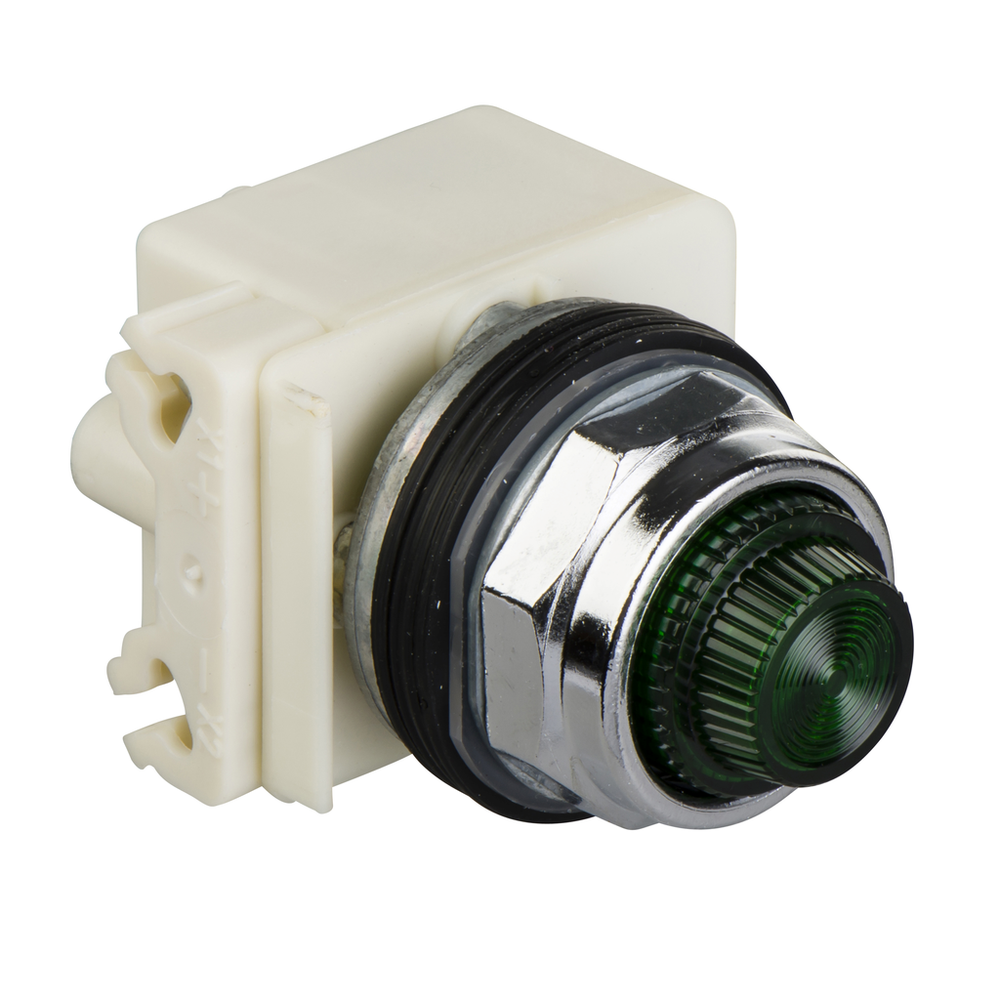

Push-to-test pilot light, Harmony 9001K, metal, glass, domed, green, 30mm, LED green, 120V
Schneider Electric 9001KT38LGG6 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Bezel Material
- metal
- Bulb Base
- BA 9s
- Cad Overall Depth
- 42 mm
- Cad Overall Height
- 70 mm
- Cad Overall Width
- 54 mm
- Cap/Operator Or Lens Colour
- green
- Connections - Terminals
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Contacts Type And Composition
- 1 C/O
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Lens Material
- glass
- Lens Type
- domed
- domed glass
- Light Block Supply
- direct 120 V AC/DC
- Light Source
- LED
- Green LED
- Light Source Colour
- green
- Mounting Diameter
- 30 mm
- Net Weight
- 0.21 kg
- Operating Mode
- push-to-test
- Operating Position
- any position
- Shape Of Screw Head
- cross slotted
- Shape Of Signaling Unit Head
- round
- Short-Circuit Protection
- 10 A cartridge fuse IEC 60947-5-1
- Size
- 30 mm
- Tightening Torque
- 0.8-0.8 N.m IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 2)IEC 60947-1
- [Us] Rated Supply Voltage
- 120 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Overvoltage Category
- class II IEC 61140
- Product Certifications
- NEMA || UL 508
- Protective Treatment
- TC
- Shock Resistance
- 50 gn IEC 60068-2-27
- Standards
- UL 508 || JIS C 852 || EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- 9001K
- Product Or Component Type
- push-to-test pilot light
- Range Of Product
- Harmony 9001K
