Schneider Electric 9001KR9P38LRR
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

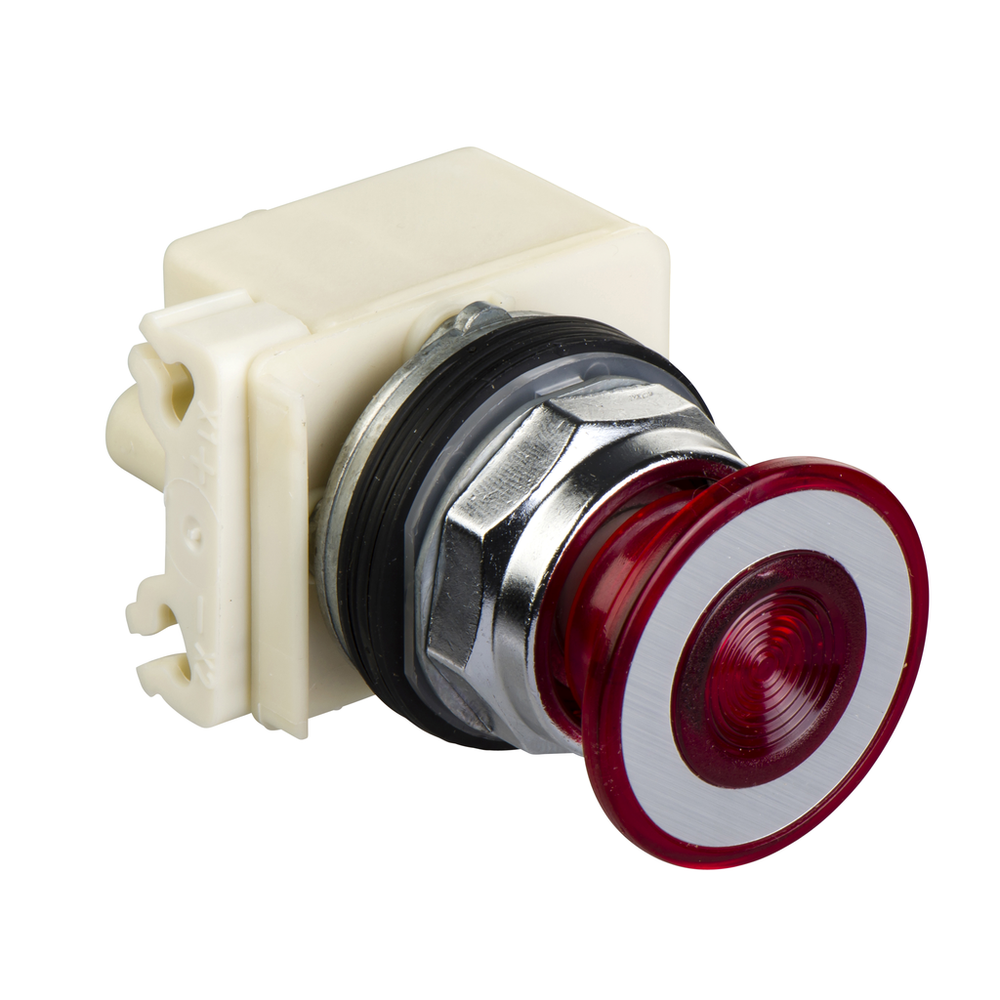

The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This illuminated push pull push button operator has a metal ring nut. This push pull operator has a 120 VAC/VDC red LED light module to provide the illumination. This operator has a red mushroom knob. Contact blocks with the desired contact arrangements must be added to this operator. Typically, one or two 9001KA1 contact blocks are used. When this contact block is used, this operator can be pulled to start and push to stop a control circuit. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."30mm push button, Type K, illuminated maintained push pull mushroom, 120VAC/VDC red LED, red mushroom, NEMA 4, 13
Schneider Electric 9001KR9P38LRR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Bezel Material
- metal
- Bulb Base
- BA 9s
- Cap/Operator Or Lens Colour
- red
- Compatibility Code
- 9001K
- Contacts Type And Composition
- without contact block
- Light Source
- incandescent
- LED
- Light Source Colour
- red
- Mechanical Durability
- 5000000 cycles
- Mounting Diameter
- 30 mm
- Net Weight
- 0.186 kg
- Operating Position
- any position
- Operator Additional Information
- screw-on plastic
- Operator Position Information
- 2 positions
- Operator Profile
- mushroom Ø 41 mm
- Shape Of Signaling Unit Head
- round
- Size
- 30 mm
- Type Of Operator
- push-pull
- [Us] Rated Supply Voltage
- 120 V
- 120 V AC/DC
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 60536
- Ip Degree Of Protection
- IP66 IEC 60529
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
- Overvoltage Category
- class II IEC 60536
- Product Certifications
- UL 508 || NEMA
- Protective Treatment
- TC
- Shock Resistance
- 50 gn IEC 60068-2-27
- Standards
- UL 508 || JIS C 852 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 4520 || EN/IEC 60947-5-4
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- 9001K
- Light Block Supply
- direct
- Operator Profile
- red mushroom Ø 41 mm, unmarked
- Product Or Component Type
- head for illuminated push-button
- Range Of Product
- Harmony 9001K
- Type Of Operator
- stay put
