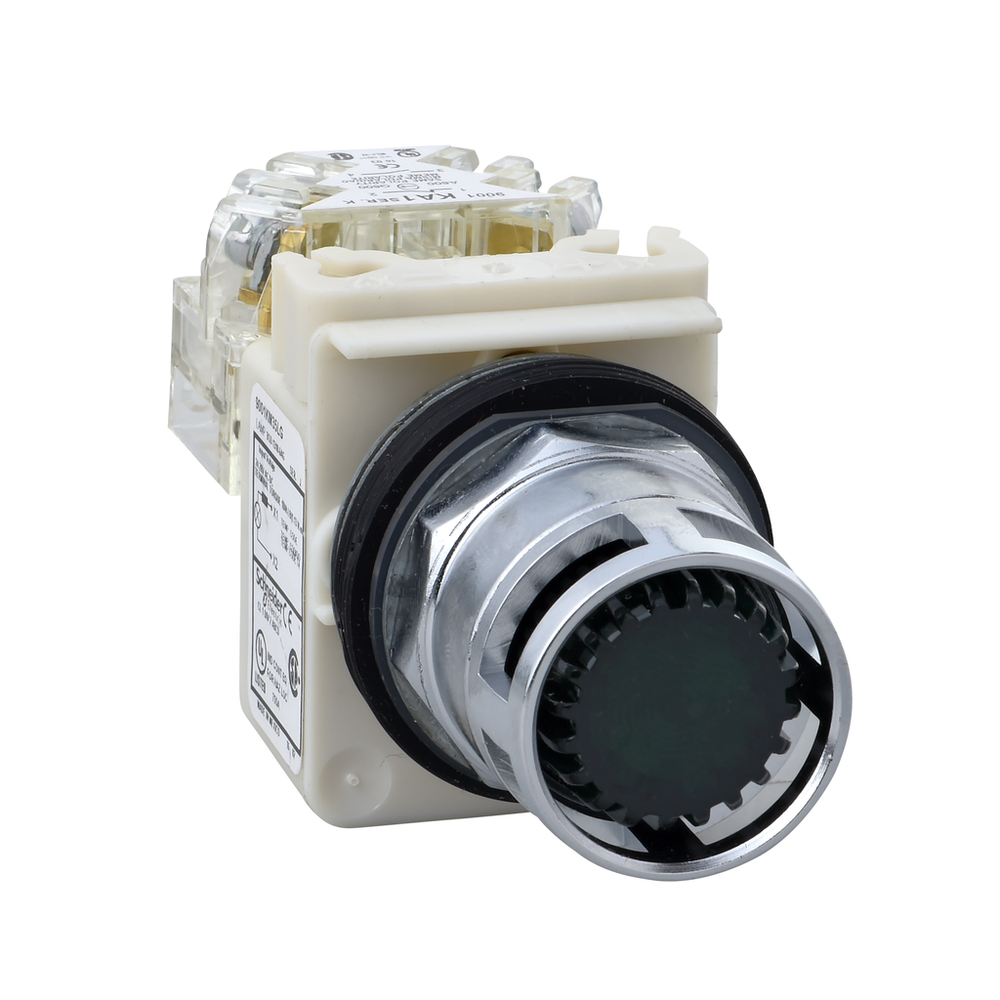

Schneider Electric 9001K3L38GH13
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel, is supplied with a 110V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.Illuminated push-button, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, 120V, 1 C/O
Schneider Electric 9001K3L38GH13 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Bezel Material
- metal
- Bulb Base
- BA 9s
- Cad Overall Depth
- 106 mm
- Cad Overall Height
- 42 mm
- Cad Overall Width
- 54 mm
- Cap/Operator Or Lens Colour
- green
- Connections - Terminals
- screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Contact Operation
- standard
- Contacts Material
- silver alloy contacts
- Contacts Type And Composition
- 1 C/O
- Device Presentation
- complete product
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA
- [Ie] Rated Operational Current
- 0.55 A 125 V, DC-13, A600-Q600 NEMA
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Light Block Supply
- full voltage or resistor
- direct
- Light Source
- incandescent bulb
- incandescent
- Mechanical Durability
- 5000000 cycles
- Mounting Diameter
- 30 mm
- Net Weight
- 0.175 kg
- Operating Position
- any position
- Operator Profile
- flush
- Positive Opening
- without
- Rated Breaking Capacity
- 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.55 kA 125 V DC-13
- Shape Of Screw Head
- cross slotted
- Shape Of Signaling Unit Head
- octagonal
- Short-Circuit Protection
- 10 A cartridge fuse IEC 60947-5-1
- Size
- 30 mm
- Terminals Description Iso N°1
- (13-14-11-12)OF
- Tightening Torque
- 0.8-0.8 N.m IEC 60947-1
- Type Of Operator
- spring return
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- [Us] Rated Supply Voltage
- 120 V AC/DC
- 120 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
- Overvoltage Category
- class II IEC 61140
- Product Certifications
- NEMA || UL 508
- Protective Treatment
- TC
- Shock Resistance
- 50 gn IEC 60068-2-27
- Standards
- EN/IEC 60947-1 || JIS C 4520 || EN/IEC 60947-5-1 || JIS C 852 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-4
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- 9001K
- Operator Additional Information
- metal guard
- Operator Profile
- green flush, unmarked
- Product Or Component Type
- illuminated push-button
- Range Of Product
- Harmony 9001K
- Type Of Operator
- spring return
