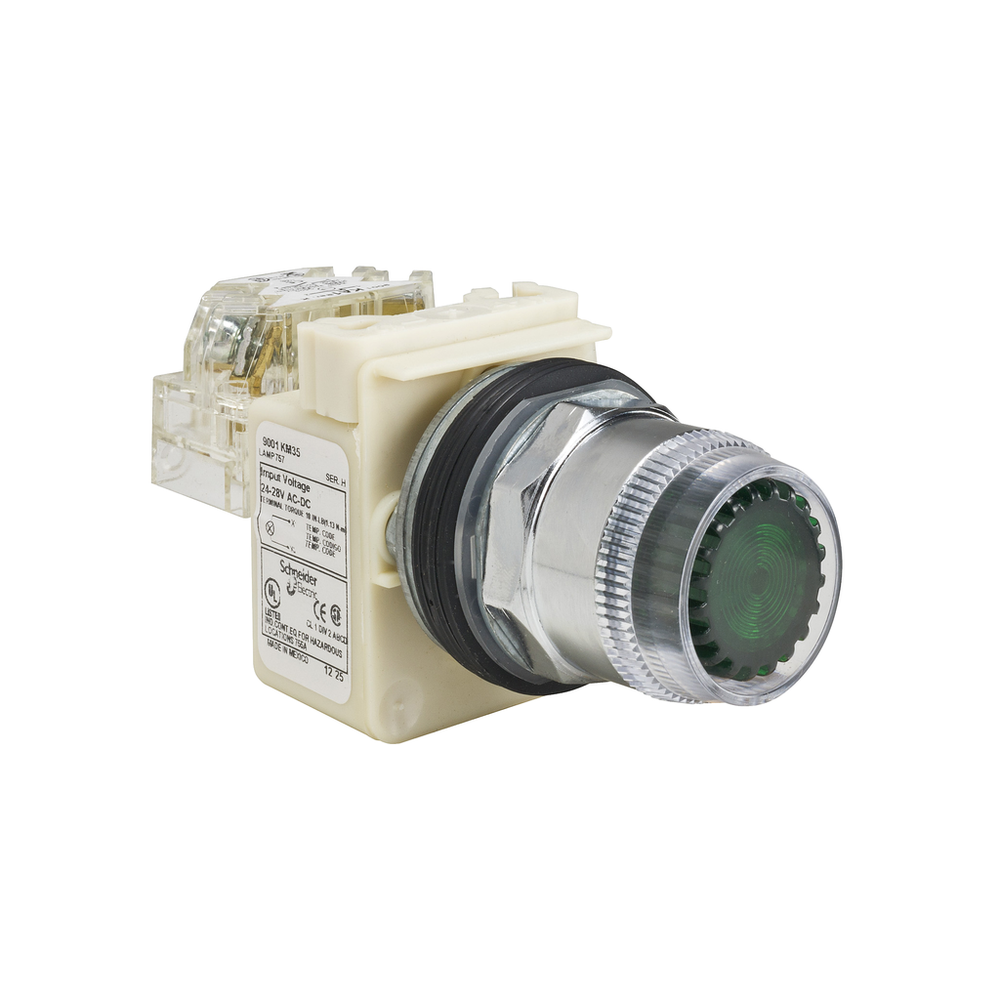

Schneider Electric 9001K1L35GH13
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.Illuminated push-button, Harmony 9001K, metal, plastic guard flush, green, 30mm, spring return, 24-28V, 1 C/O
Schneider Electric 9001K1L35GH13 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Bezel Material
- metal
- Bulb Base
- BA 9s
- Cap/Operator Or Lens Colour
- green
- Connections - Terminals
- screw clamp terminals
- Contact Operation
- standard
- Contacts Type And Composition
- 1 C/O
- Device Presentation
- complete product
- [Ie] Rated Operational Current
- 10 A, AC-15 || 10 A, DC-13
- Light Block Supply
- direct
- full voltage
- Light Source
- incandescent
- incandescent bulb
- Mounting Diameter
- 30 mm
- Operating Position
- any position
- Operator Profile
- flush
- Size
- 30 mm
- Type Of Operator
- spring return
- [Us] Rated Supply Voltage
- 24...28 V AC/DC
- 24...28 V
Contractual warranty
- Warranty
- 18 months
Environment
- Nema Degree Of Protection
- NEMA 1/2/3/3R/4/6/12/13
- Product Certifications
- UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || NEMA || CE
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- K
- Operator Additional Information
- plastic guard
- Operator Profile
- green flush
- Product Or Component Type
- illuminated push-button
- Range Of Product
- Harmony 9001K
- Type Of Operator
- spring return
