Schneider Electric 9001BW245
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

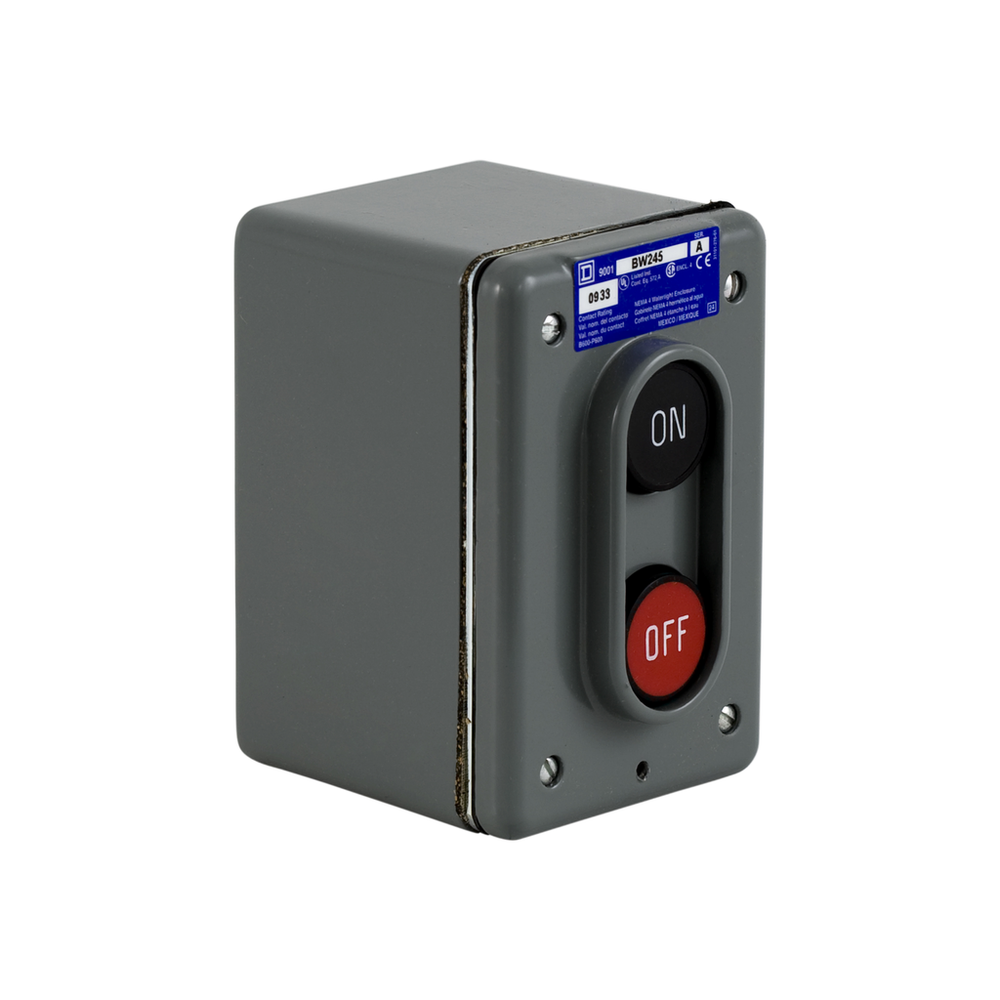

CONTROL STATION 600VAC 5A T-B Ø30 Standard Duty Momentary Pushbuttons 1NO-1NC
Schneider Electric 9001BW245 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Entry
- 1 entry for 1/2" - 14 NPT
- Cad Overall Depth
- 91 mm
- Cad Overall Height
- 108 mm
- Cad Overall Width
- 70 mm
- Contacts Type And Composition
- 1 NO + 1 NC
- Control Station Composition
- 1 flush push-button, black, white ON || 1 flush push-button, red, white OFF
- Device Mounting
- surface
- [Ie] Rated Operational Current
- 0.6 A 600 V, AC-1/DC-1 || 0.75 A 480 V, AC || 1.5 A 240 V, AC || 3.75 A 120 V, AC
- Material
- cast aluminium
- Mechanical Durability
- 5000000 cycles
- Type Of Installation
- indoor/outdoor
- Type Of Operator
- momentary
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Characteristic
- waterproof || dustproof
- Nema Degree Of Protection
- NEMA 1 || NEMA 4
- Product Certifications
- UL Listed || CSA
- Standards
- JIS C 4520 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || UL 508 || CSA C22.2 No 14
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1304003EN
- Environmental Disclosure
- ENVPEP1304003EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Colour Of Base Of Enclosure
- grey
- Control Station Application
- two functions
- Device Short Name
- 9001BW
- Product Or Component Type
- complete control station
- Range Of Product
- Harmony 9001BW
