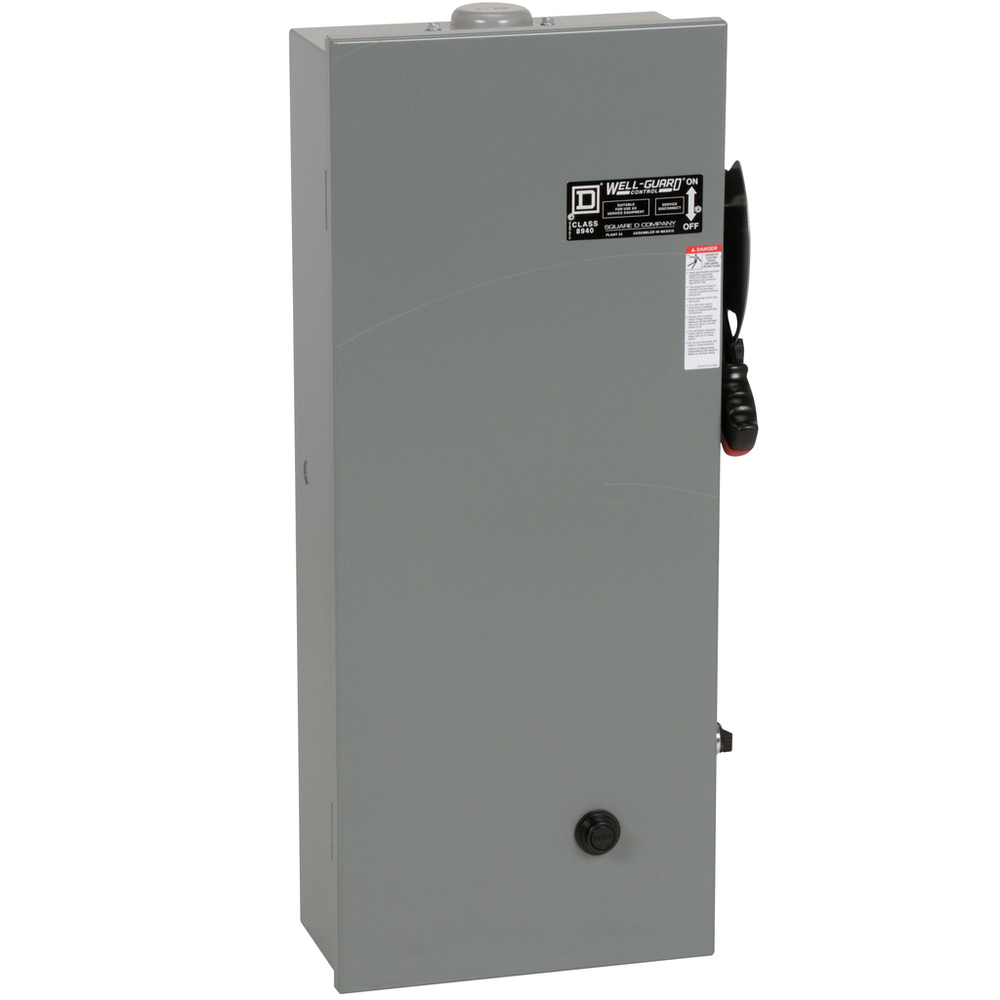

Schneider Electric 8940SSC4010
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Well-Guard pumping plant panels are designed for pumping applications. These panels provide extra space for field installation of auxiliary equipment. These panels use Type S non-reversing magnetic starters. Panel has a 30A fusible disconnect switch for Class H or K fuses. This panel has a 3 pole NEMA Size 1 non-reversing starter that has a 27 ampere rating. This NEMA Size 1 starter has maximum of 3 HP, 5 HP, 7.5 HP and 10 HP ratings three phase. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 9A to 27A range to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 440/480 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. Enclosure is 39.05 inches tall, 13.73 inches wide and 9.70 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a START momentary push button and a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.Pump Panel, NEMA Type S, Well Guard, Size 1, 27A, 10 HP, 5 kA SSCR, 30A fuse clip, Motor Logic SSOLR, 440/480 VAC 50/60 Hz coil, NEMA 3R
Schneider Electric 8940SSC4010 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 30 A
- Control Circuit
- common control circuit
- Control Type
- selector switch HAND-OFF-AUTO) || push-button START)
- Depth
- 246 mm
- Device Mounting
- surface
- Disconnector Device Type
- fusible disconnect switch
- Electrical Connection
- screw terminal
- Fuse Type
- H or K
- Height
- 992 mm
- Line Rated Current
- 27 A
- Maximum Horse Power Rating
- 10-10 hp 480 V AC, 3 phase
- Nema Size
- 1
- Number Of Poles
- 3
- Permissible Voltage
- 600 V AC
- Protection Type
- overload || phase loss || phase unbalance
- Thermal Overload Type
- Motor Logic solid state class 10/20
- [Uc] Control Circuit Voltage
- 480 V AC 60 Hz || 440 V AC 50 Hz
- Width
- 385 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Enclosure Type
- weatherproof enclosure indoor/outdoor
- Nema Degree Of Protection
- NEMA 3R
- Product Certifications
- UL Listed || NEMA
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Specifications
- Device Application
- pumping
- Device Short Name
- class 8940 type SS
- Product Name
- Well-Guard Control
