Description

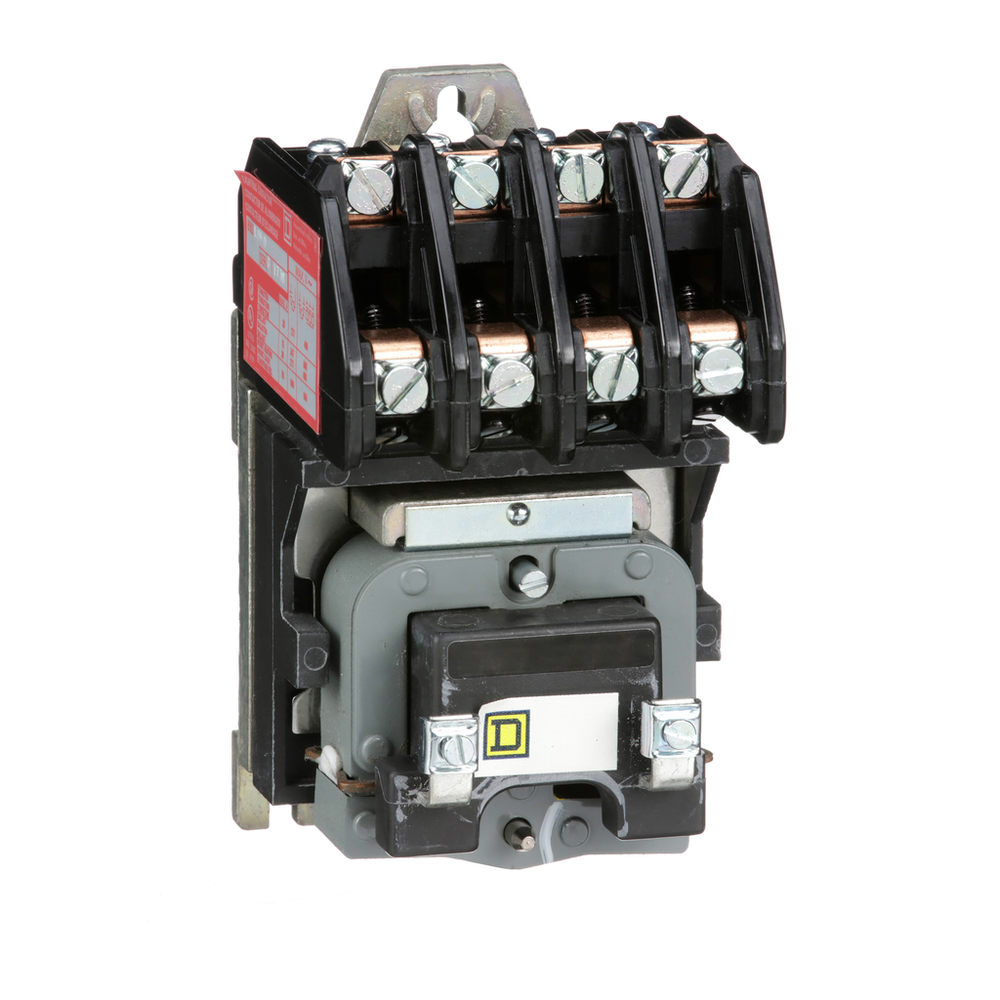

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 4 pole device has 4 NO contacts. Supplied with a 277 VAC 60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 2.88 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.Contactor, Type L, multipole lighting, electrically held, 30A, 4 pole, 600 V, 277 VAC 60 Hz coil, open style
Schneider Electric 8903LO40V04 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Control Type
- no control units
- Depth
- 79 mm
- Electrical Connection
- screw-clamp terminals
- Height
- 127 mm
- Hold-In Power Consumption In Va
- 30-30 VA 60 Hz
- Inrush Power In Va
- 150-150 VA 60 Hz
- Line Rated Current
- 20-20 A tungsten || 30-30 A fluorescent
- Local Signalling
- no indicator
- Poles Description
- 4P 4 NO
- [Uc] Control Circuit Voltage
- 277 V AC 60 Hz
- Width
- 73 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Nema Degree Of Protection
- not rated (open device)
- Product Certifications
- UL Listed || CSA
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Environmental Disclosure
- ENVPEP1407018EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Control Circuit
- separate control circuit
- Product Or Component Type
- Electrically Held Lighting Contactor
- Range Of Product
- 8903L
