Description

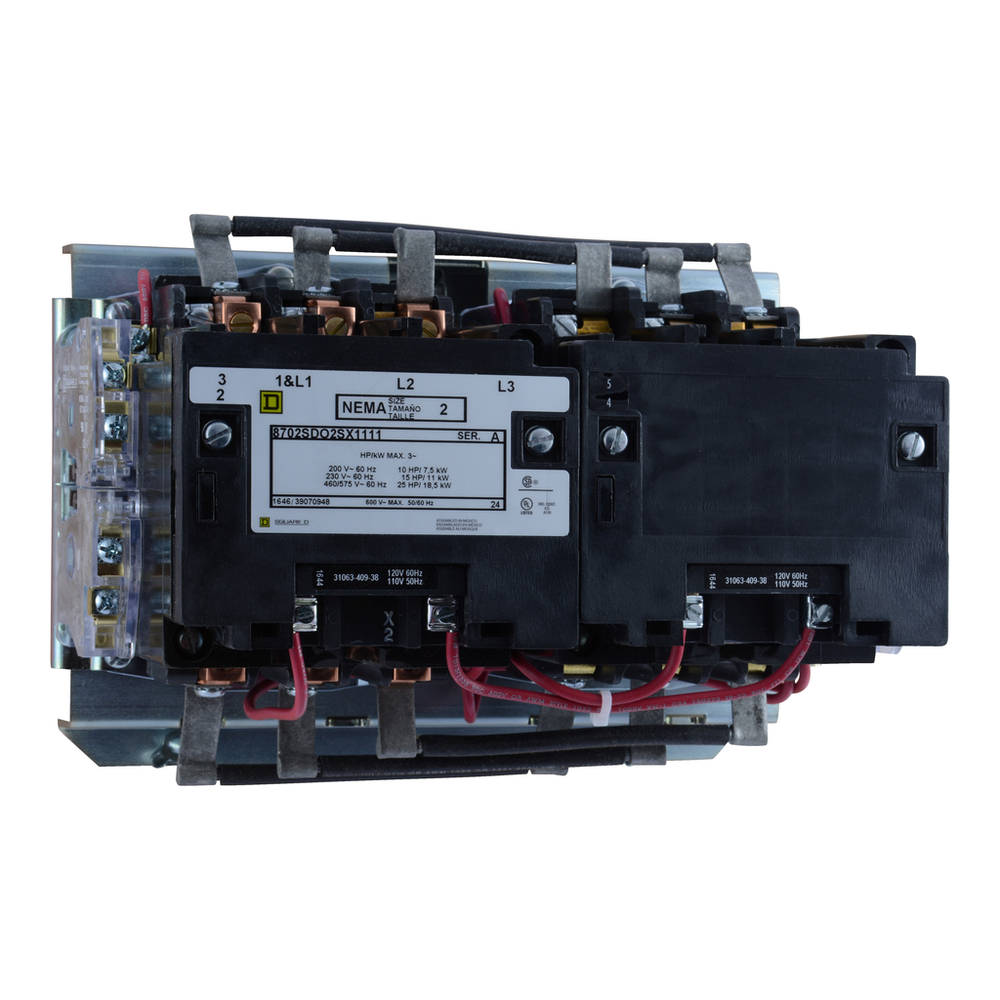

Type S NEMA reversing magnetic contactors are used for starting, stopping, and reversing AC motors where overload protection is separately provided. NEMA 8702 reversing contactors are available in NEMA Sizes 00-7. This is a Size 2 reversing contactor. NEMA reversing contactors consist of two 8502 NEMA contactors that are mechanically and electrically interlocked Sizes 0-5 revesring contactors are available in either horizontal or vertical arrangements. This reversing contactor is arranged horizontally. Type S reversing contactors have ratings up to 810 amperes. This NEMA 2 reversing contactor has a 45 ampere rating. Type S reversing contactors are available in 1, 2, 3, and 4 pole versions. This is a 3 pole reversing contactor. NEMA Size 1 reversing contatctors have ratings of 10 HP at 200 VAC, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC poly phase. These starters are available with a wide variety of replaceable coil voltages. The coil in this contactor is rated for 110/120 VAC 50/60 Hz which is wired for separate control. This NEMA reversing contactor is not in an enclosure. It is an open device. Reversing contactor is 6.88 inches tall, 9.00 inches wide and 6.03 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA reversing contactors are UL listed and CSA certified for global applications.NEMA Contactor, Type S, reversing, horizontal, Size 2, 45A, 25 HP at 575 VAC, 3 phase, up to 100 kA, 3 pole, 120 VAC coil, open style
Schneider Electric 8702SDO2V02S is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Condition Of Use
- horizontal
- Control Circuit
- separate control circuit
- Control Type
- no control units
- Depth
- 153.16 mm
- Electrical Connection
- screw clamp terminals
- Height
- 174.75 mm
- Line Rated Current
- 45 A
- Local Signalling
- no indicator
- Nema Size
- 2
- Phase
- 3 phase
- Poles Description
- 3P
- Provided Equipment
- fuse not supplied
- Rated Power In Hp
- 10 HP 200 V AC || 15 HP 230 V AC || 25 HP 460 V AC || 25 HP 575 V AC
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz || 120 V AC 60 Hz
- [Ue] Rated Operational Voltage
- 600 V AC
- Width
- 228.60 mm
- Wiring Mode
- 3 wires
Contractual warranty
- Warranty
- 18 months
Environment
- Nema Degree Of Protection
- not rated (open device)
- Product Certifications
- UL Listed || CSA
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
Specifications
- Contactor Application
- reversing
- Product Or Component Type
- contactor
- Range Of Product
- type S
