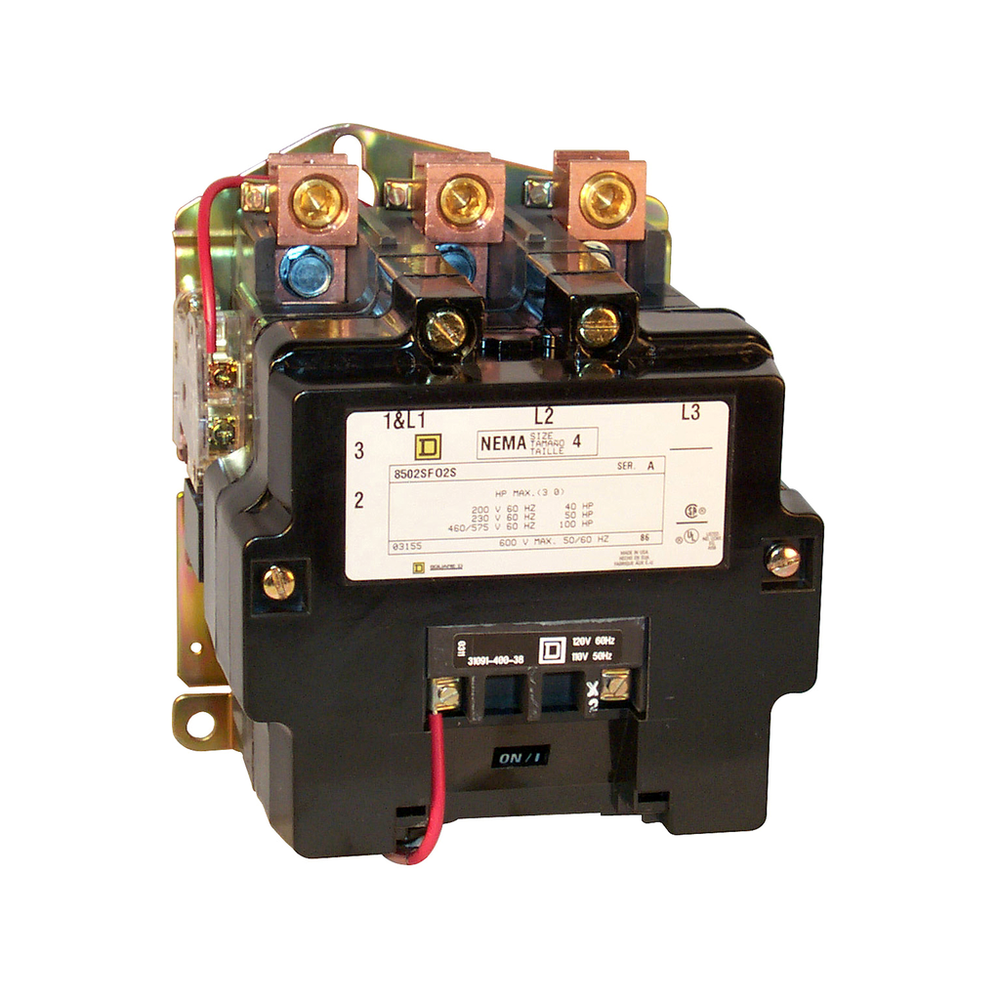

Schneider Electric 8502SFO2V08
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 4 non-reversing contactor has a 135 ampere rating. Three phase NEMA Size 4 contactors have 40 HP at 200, 50 HP at 230 VAC and 100 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 208 VAC 60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 8.19 inches tall, 6.00 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.NEMA Contactor, Type S, nonreversing, Size 4, 135A, 100 HP at 575 VAC, 3 phase, up to 100 kA, 3 pole, 208 VAC coil, open
Schneider Electric 8502SFO2V08 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Auxiliary Contact Composition
- without
- Control Circuit
- common control circuit
- Control Type
- no control units
- Depth
- 165.10 mm
- Electrical Connection
- screw clamp terminals
- Height
- 208.03 mm
- Line Rated Current
- 135 A
- Local Signalling
- no indicator
- Nema Size
- 4
- Phase
- 3 phase
- Poles Description
- 3P
- Product Compatibility
- circuit-breaker 225 A maximum, SCCR: 100 kA at 480 V AC || fuse J 200 A maximum, SCCR: 100 kA at 600 V AC || fuse T 200 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC
- Provided Equipment
- fuse not supplied
- Rated Power In Hp
- 40 HP 200 V AC || 50 HP 230 V AC || 100 HP 460 V AC || 100 HP 575 V AC
- [Uc] Control Circuit Voltage
- 208 V AC 60 Hz
- [Ue] Rated Operational Voltage
- 600 V AC
- Width
- 152.40 mm
Contractual warranty
- Warranty
- 18 months
Environmental
- Nema Degree Of Protection
- not rated (open device)
- Product Certifications
- UL listed file E78351 CCN NLDX || CSA
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Specifications
- Contactor Application
- non-reversing
- Product Or Component Type
- contactor
- Range Of Product
- 8502S
