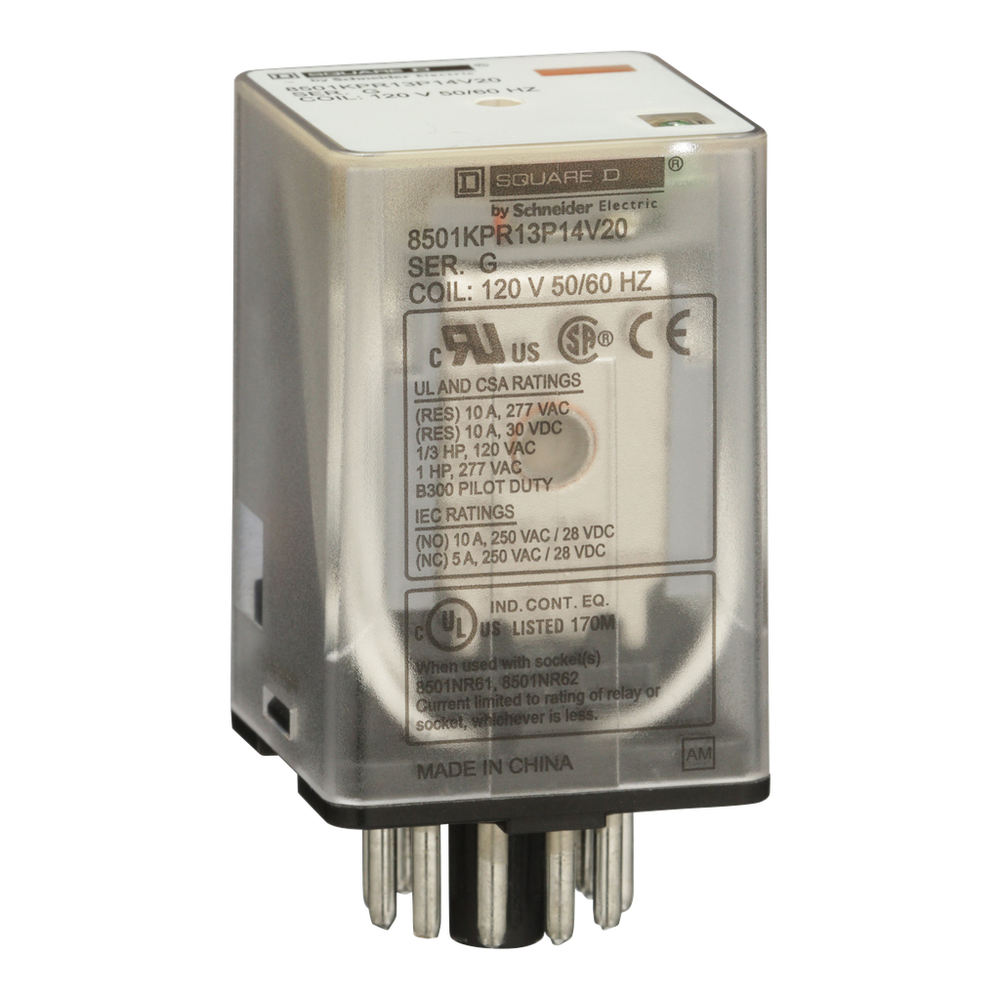

Schneider Electric 8501KPR13P14V20
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR61 or 8501NR62 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 11 pin, 3PDT, 3 NO, 3 NC, 120 VAC coil
Schneider Electric 8501KPR13P14V20 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Contacts Material
- silver alloy (AgNi)
- Maximum Switching Voltage
- 300 V AC || 30 V DC
- Operating Time
- 20 ms - pick-up || 20 ms - drop-out
- Product Compatibility
- 8501NR62 || 8501NR61
- Rated Breaking Capacity
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 10 A 30 V DC resistive control circuit UL 508
- Rated Power In Hp
- 1 hp 277 V AC || 0.33 hp 120 V AC
- Shape Of Pin
- tubular
Environment
- Ambient Air Temperature For Operation
- -40-131 °F
- Depth
- 1.4 in
- Height
- 2.66 in
- Product Certifications
- UL Listed || UL Recognized || CSA || CE
- Width
- 1.4 in
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1406038EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Control Type
- without test button
- Local Signalling
- indicator light relay energised LED
- Mounting Support
- socket
- Product Or Component Type
- relay
- Range Of Product
- 8501K
- Relay Type
- general purpose
- Switch Function
- 3PDT
- [Uc] Control Circuit Voltage
- 120 V AC
