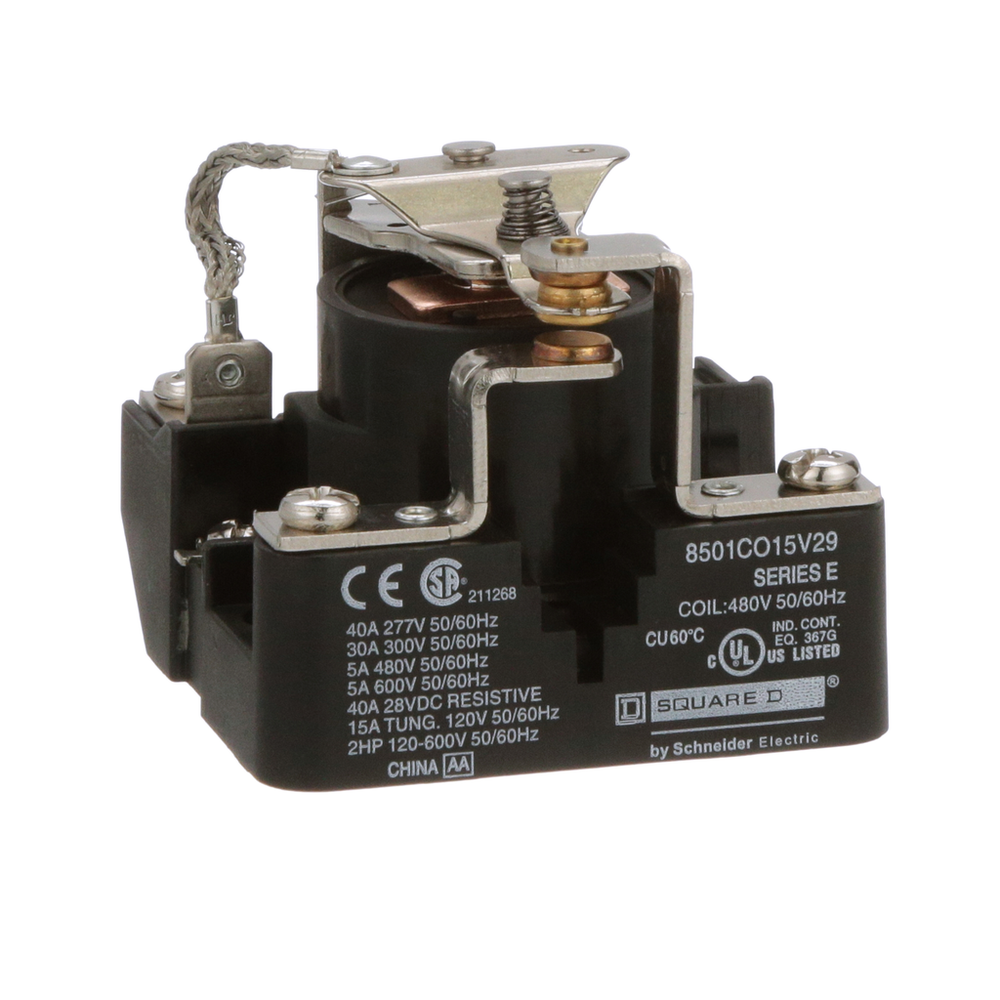

Schneider Electric 8501CO15V29
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a SPDT contact configuration with one normally open and one normally closed contact. A variety of coil voltages are available. This relay has a 480 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 1 normally open and 1 normally closed contact, 480 VAC coil
Schneider Electric 8501CO15V29 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Awg Gauge
- AWG 10 copper
- Catalog Class
- 8501
- Connections - Terminals
- screw clamp terminal
- Hold-In Power Consumption In Va
- 10-10 VA
- Mounting Support
- panel mounting
- Phase
- 1 phase
- Tightening Torque
- 11-15 lbf.in
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -22-122 °F
- Depth
- 2.18 in
- Height
- 2.43 in
- Product Certifications
- UL listed file E78351 CCN NLDX || CSA || CE
- Width
- 2.5 in
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1705008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Contacts Type And Composition
- 1 NO/1 NC
- Device Application
- suited for controlling small single phase motors and other light loads
- Device Short Name
- type C
- Line Rated Current
- 30 A
- Maximum Switching Voltage
- 600 V AC
- Product Or Component Type
- power relay
- Range Of Product
- Power Relay 8501C
- Rated Power In Hp
- 2.0 hp
- Switch Function
- SPDT
- [Uc] Control Circuit Voltage
- 480 V AC 50/60 Hz
