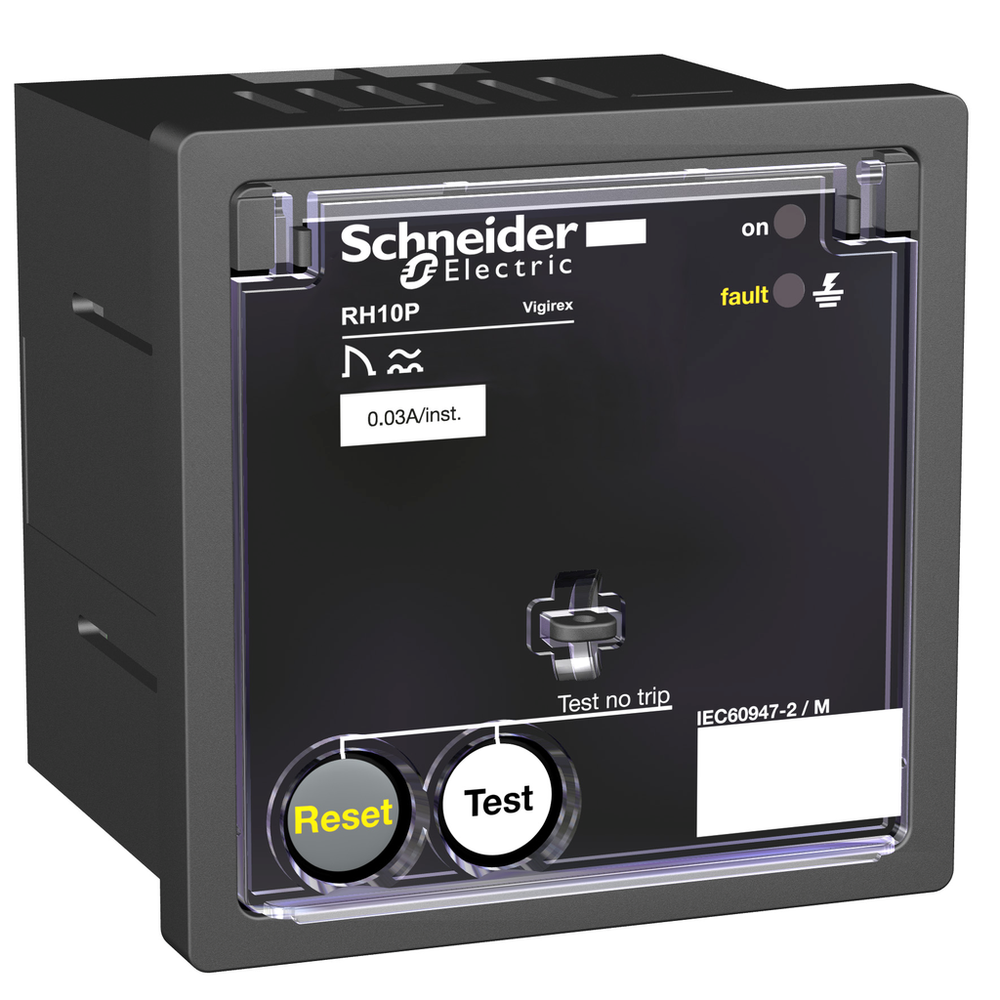

Schneider Electric 56230
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Residual current protection relay, VigiPacT RH10P, 30mA, 220/240VAC 50/60Hz, front panel mounting
Schneider Electric 56230 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- auxiliary power supply terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12 || auxiliary power supply terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12 || auxiliary power supply terminal block 0.25-2.5 mm² flexible AWG 24...AWG 12 || fault terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12 || fault terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12 || fault terminal block 0.25-2.5 mm² flexible AWG 24...AWG 12 || relay test and fault reset terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12 || relay test and fault reset terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12 || relay test and fault reset terminal block 0.25-2.5 mm² flexible AWG 24...AWG 12 || sensor terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12 || sensor terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12 || sensor terminal block 0.25-2.5 mm² flexible AWG 24...AWG 12 || voltage presence terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12 || voltage presence terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12 || voltage presence terminal block 0.25-2.5 mm² flexible AWG 24...AWG 12
- Cut-Out Dimensions
- 68 x 68 mm
- Depth
- 78 mm
- Height
- 72 mm
- Ik Degree Of Protection
- IK07 EN 50102
- Ip Degree Of Protection
- on front face IP40 EN/IEC 60529 || on side parts IP30 EN/IEC 60529 || on connection terminals IP20 EN/IEC 60529
- Mechanical Robustness
- fire resistance IEC 60695-2-1 || IK protection 2 joulesIK07 EN 50102 || vibrations 13.2...100 Hz0.7 g || vibrations 2...13.2 Hz+/- 1 mm
- Monitoring
- electronics continuous) || power supply continuous) || relay/sensor link continuous)
- Net Weight
- 0.3 kg
- Tamperproof Of Settings
- protected by sealable cover
- Test Function
- remote test || local
- Tightening Torque
- auxiliary power supply: 0.6-0.6 N.m || fault: 0.6-0.6 N.m || relay test and fault reset: 0.6-0.6 N.m || sensor: 0.6-0.6 N.m || voltage presence: 0.6-0.6 N.m
- Type Of Measurement
- earth fault current internal measurement 80...100 %
- Width
- 72 mm
- Wire Stripping Length
- auxiliary power supply: 7 mm || fault: 7 mm || relay test and fault reset: 7 mm || sensor: 7 mm || voltage presence: 7 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -35-70 °C
- Ambient Air Temperature For Storage
- -55-85 °C
- Electrical Shock Protection Class
- class II
- Electromagnetic Compatibility
- conducted and radiated emissionsB CISPR 11 || conducted radio-frequency immunity test3 IEC 61000-4-6 || electrostatic discharge immunity test4 IEC 61000-4-2 || high-energy conducted susceptibility4 IEC 61000-4-5 || low-energy conducted susceptibility4 IEC 61000-4-4 || radiated susceptibility3 IEC 61000-4-3
- Overvoltage Category
- IV
- Pollution Degree
- 3 IEC 60664-1
- Relative Humidity
- 95-95 % 55-55 °C
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI100416
- Environmental Disclosure
- ENVPEP060202EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- RH10P
- Earthing System
- TN-S || TT || IT
- Earth Leakage Current
- 0.03-0.03 A
- Earth-Leakage Protection Class
- type A
- [Ithe] Conventional Enclosed Thermal Current
- 8 A
- Minimum Load
- 10 mA 12 V
- Mounting Support
- front panel
- Network Rated Voltage
- 1000-1000 V - AC 50/60 Hz maximum) || 1000-1000 V - AC 400 Hz maximum)
- Power Consumption In Va
- 4 VA
- Product Or Component Type
- residual current protection relay
- Range
- VigiPacT
- Range Compatibility
- VigiPacT TOA earth leakage current sensor || VigiPacT A earth leakage current sensor || VigiPacT L earth leakage current sensor
- Relay Application
- protection relay
- Reset
- manual reset
- Residual Earth-Leakage Sensitity Adjustment Type
- fixed
- Residual Earth-Leakage Time Delay Adjustment Type
- instantaneous
- Type Of Setting
- none
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- [Us] Rated Supply Voltage
- 220...240 V AC 50/60 Hz 55...110 %
