Description

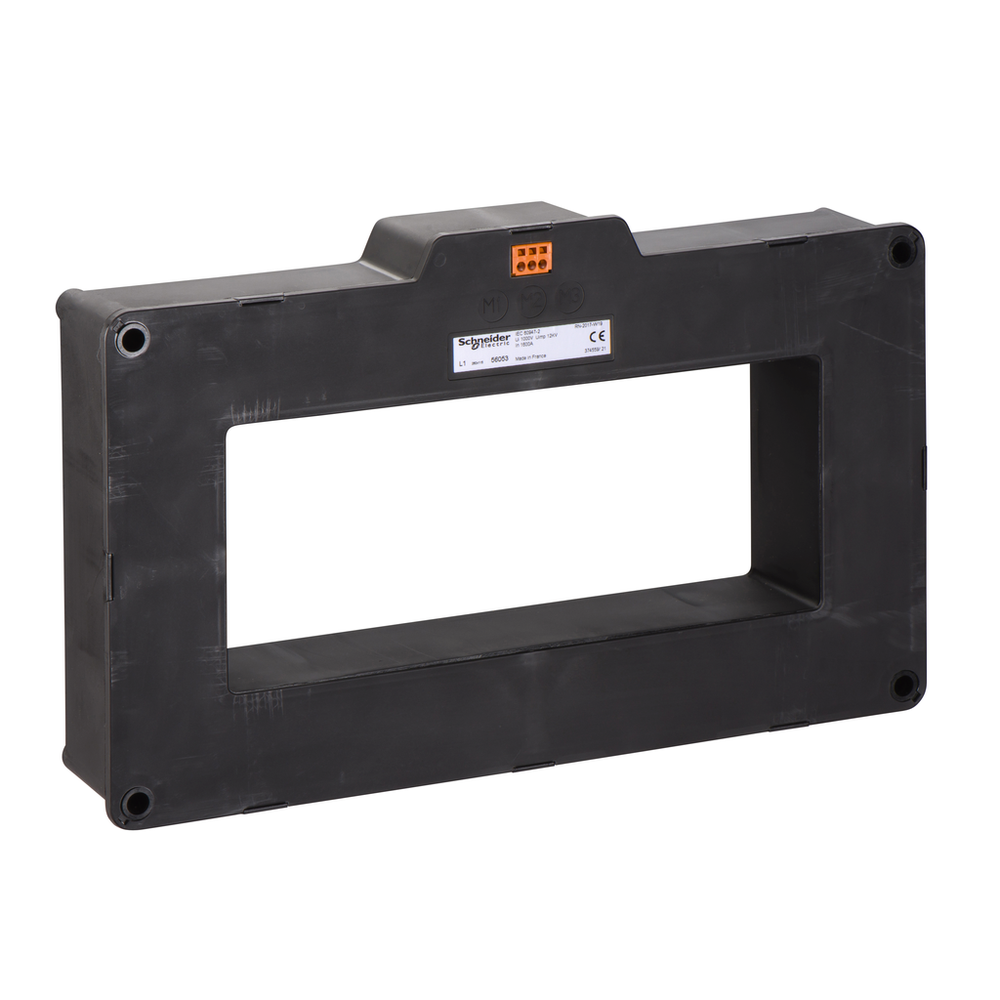

This toroid is dedicated to VigiPacT type A residual current protection and monitoring relays. It allows the measurement of a current rating up to 1600A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner dimensions of the toroid are 280mm X 155mm and the weight is 11kg. The wiring size must be from 0.5 to 2.5 mm². The wiring length should not exceed 10m.Rectangular sensor L1 type, VigiPacT, 280mmx115mm, 1600A
Schneider Electric 56053 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw connection 0.2-2.5 mm²
- Depth
- 71 mm
- outside 71 mm || inside 71 mm
- Height
- 233 mm
- outside 233 mm || inside 115 mm
- [Icw] Rated Short-Time Withstand Current
- 100 kA 0.5 s
- Mounting Mode
- fixed cables) || fixed busbar)
- Net Weight
- 13.26 kg
- Overvoltage Category
- IV
- Residual Short-Circuit Withstand Current
- 85 kA / 0.5 s
- Transformer Ratio
- 1/1000
- [Uimp] Rated Impulse Withstand Voltage
- 12 kV
- Width
- 381 mm
- outside 381 mm || inside 280 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -35-80 °C
- Ambient Air Temperature For Storage
- -55-100 °C
- Environmental Characteristic
- exposure to damp heat not in service 25...55 °C, RH 95 %) 28 cycles IEC 60068-2-30 || salt mistKb/2 IEC 60068-2-52 || exposure to damp heat in servicecategory C2 48 hours IEC 60068-2-56
- Ip Degree Of Protection
- connectors IP20 || IP30
- Product Certifications
- CE
- Standards
- IEC 60947-2
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Current Transformer Type
- rectangular sensor
- Device Application
- equipment monitoring and control
- Device Short Name
- L
- [Ie] Rated Operational Current
- 1600 A
- Product Or Component Type
- earth leakage current sensor
- Range
- VigiPacT
- Range Compatibility
- VigiPacT RH10M residual current protection relay || VigiPacT RH10P residual current protection relay || VigiPacT RH21M residual current protection relay || VigiPacT RH21P residual current protection relay || VigiPacT RH68M residual current protection relay || VigiPacT RH86M residual current protection relay || VigiPacT RH86P residual current protection relay || VigiPacT RH99M residual current protection relay || VigiPacT RH99P residual current protection relay || VigiPacT RH197M residual current protection relay || VigiPacT RH197P residual current protection relay || VigiPacT RHU residual current protection relay || VigiPacT RHUs residual current protection relay || VigiPacT RMH residual current protection relay
