Description

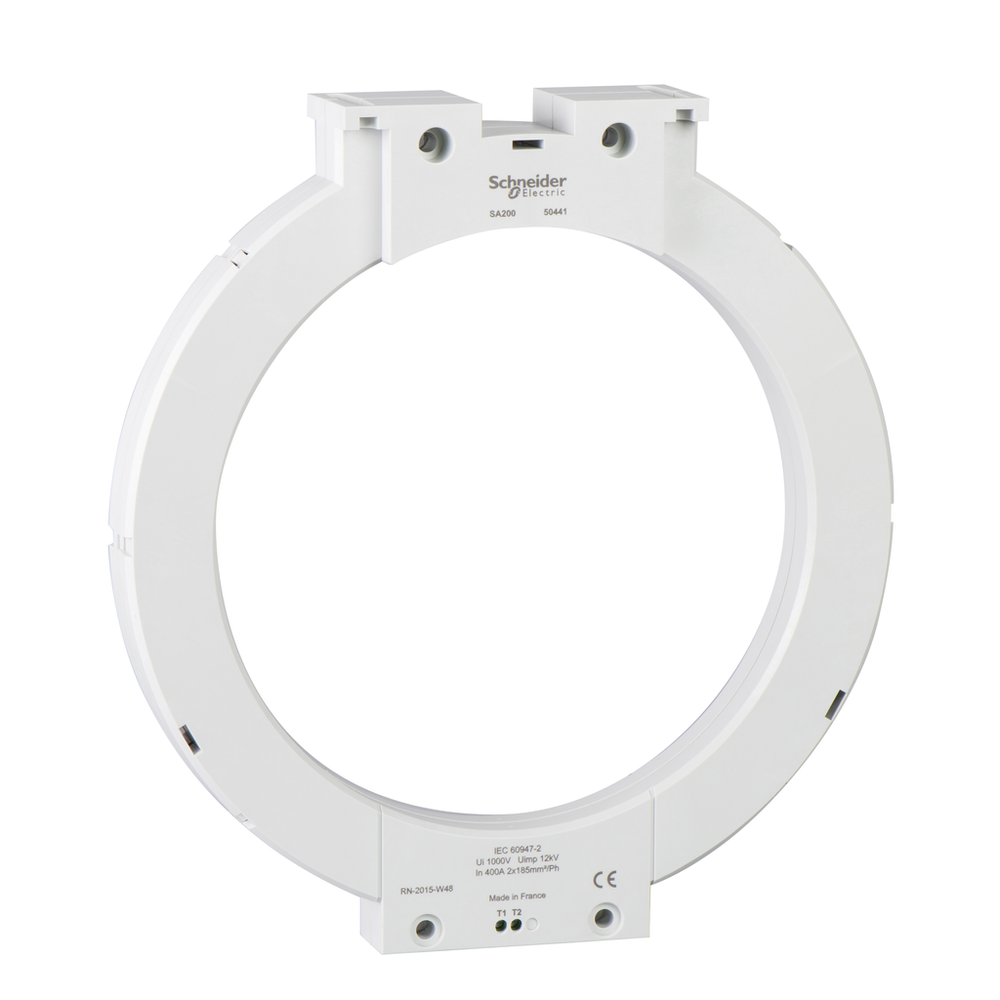

This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 630A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 300 millimeters and the weight is 2.280kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 150 millimeters. The maximum cross section per phase (R, S, T, N) is 2 cables of 240mm² for a copper conductor.Closed toroid A type, VigiPacT, Vigilohm, GA300, inner diameter 300mm, rated current 630A
Schneider Electric 50442 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Outer Diameter
- 150-150 mm 2 240-240 mm²
- Connections - Terminals
- connection by clip 6.35-6.35 mm²
- Depth
- outside 46 mm
- 46 mm
- Diameter
- inner 291 mm
- Height
- 360 mm
- outside 360 mm
- [Icw] Rated Short-Time Withstand Current
- 85 kA 0.5 s
- Mounting Mode
- fixed cables)
- Net Weight
- 2.23 kg
- Network Frequency
- 45...440 Hz
- Network Type
- AC/DC
- Overvoltage Category
- IV
- Residual Short-Circuit Withstand Current
- 85 kA / 0.5 s IEC 60947-2
- Transformer Ratio
- 1/1000
- [Uimp] Rated Impulse Withstand Voltage
- 12 kV
- [Ui] Rated Insulation Voltage
- 1000 V
- Width
- 390 mm
- outside 390 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -35-70 °C
- Ambient Air Temperature For Storage
- -55-85 °C
- Environmental Characteristic
- exposure to damp heat not in service 25...55 °C, RH 95 %) 28 cycles IEC 60068-2-30 || salt mistKb/2 IEC 60068-2-52 || exposure to damp heat in servicecategory C2 48 hours IEC 60068-2-56
- Ip Degree Of Protection
- connectors IP20 || IP30
- Pollution Degree
- level 3 IEC 60664-1
- Product Certifications
- CE
- Standards
- IEC 60947-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI110101
- Environmental Disclosure
- ENVPEP060201EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Current Transformer Type
- A type closed toroid
- Device Application
- equipment monitoring and control
- Device Short Name
- GA300
- [Ie] Rated Operational Current
- 630 A
- Product Or Component Type
- earth leakage current sensor
- Range
- VigiPacT
- Range Compatibility
- VigiPacT RH10M residual current protection relay || VigiPacT RH10P residual current protection relay || VigiPacT RH21M residual current protection relay || VigiPacT RH21P residual current protection relay || VigiPacT RH68M residual current protection relay || VigiPacT RH86M residual current protection relay || VigiPacT RH86P residual current protection relay || VigiPacT RH99M residual current protection relay || VigiPacT RH99P residual current protection relay || VigiPacT RH197M residual current protection relay || VigiPacT RH197P residual current protection relay || VigiPacT RHU residual current protection relay || VigiPacT RHUs residual current protection relay || VigiPacT RMH residual current protection relay
